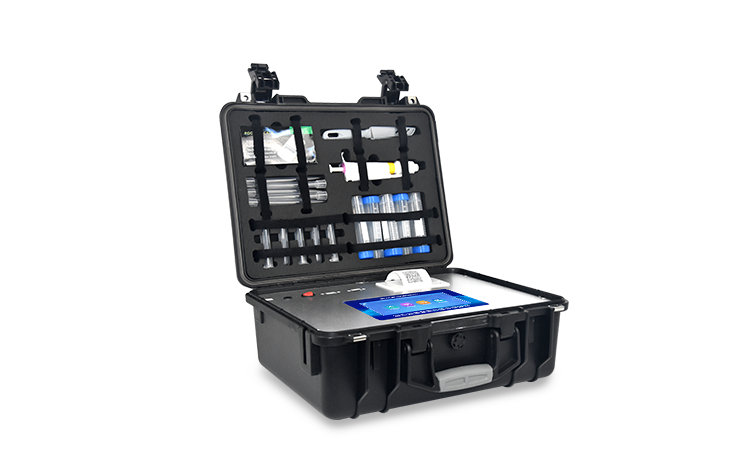

Mycotoxin detector

Rapid detection instrument for fungal toxin residue：

Product Introduction：

The mycotoxin detector applies the principle of competitive inhibition immunochromatography technology, which analyzes the residual mycotoxin in the test sample by combining the test substance with the antibody. It can quickly detect aflatoxin B1, zearalenone, vomiting toxin, T2 toxin, ochratoxin, and fumatoxin in grains, feed, grains, edible oils, and seasonings such as corn, rice, wheat, barley, brown rice, bran, rice, soybean meal, rice bran, and feed.

Product Usage:

This mycotoxin detector is an integrated rapid detection and analysis equipment suitable for use in grain and oil systems, grain stations, grain and oil monitoring centers, grain and oil feed production and processing, food processing and trade, self inspection of livestock and poultry farmers, and rapid market screening by industrial and commercial quality supervision departments.

Product performance:

1. Integrated portable quick inspection equipment, with an industrial grade ABS engineering plastic box for chassis, convenient to carry, stable and durable, meeting the needs of on-site and mobile testing.

2. The Android intelligent operating system adopts more efficient and user-friendly operation, and the main control adopts a multi-core processor, which runs faster and has stronger stability.

3. Automatically determine whether the sample is qualified, and the test results are more intuitive. Multiple samples can be tested continuously and tested in a cyclic manner, that is, immediately upon release.

4. The instrument has a powerful database built-in, with a menu library of multiple types of sample names, classification management, and flexible selection of testing samples, testing indicators, testing units, and other information. It can also edit and input sample names, testing indicators, testing units, and other information as needed, add or delete names, and save them in the sample database.

6. The instrument has WiFi networking function, 4G signal GPRS remote transmission function, and can be inserted into a mobile phone card to achieve data remote transmission. It can quickly upload data to computers and server supervision platforms for data management and statistics.

7. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero setting functions, and has automatic detection of repeatability.

8. The new generation of high-speed thermal printer can automatically print test reports and QR codes after testing is completed. The printed report includes the tested substance, qualified or unqualified, testing unit, inspected unit, inspector, and testing time.

9. The instrument is equipped with a regulatory platform, and data can be uploaded on both local area networks and the internet. The test results are directly transmitted to the food safety regulatory platform. Conduct regional food safety supervision, big data analysis and processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning.

10. Capable of detecting all detection items under the same software and displaying detection results visually through the same window.

11. Immunochromatographic detection module detection method: Orbital automatic transmission scanning, automatically exiting the detection card after the detection is completed.

12. CT line automatic recognition without manual adjustment.

13. The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

14. High sensitivity, high detection accuracy, high repeatability accuracy, scanning type high-precision optical sensor.

15. The instrument has its own protection function, which can be set with a username and password to prevent non staff operations, etc.

16. The instrument has functions of recalibration, locking, and restoring factory settings.

17. Support USB storage. The result judgment line can be modified, the calibration value of the reference value can be saved, and data will not be lost after power outage.

18. Compatible with all detection cards in the market, with unrestricted use of consumables, greatly enhancing the user experience.

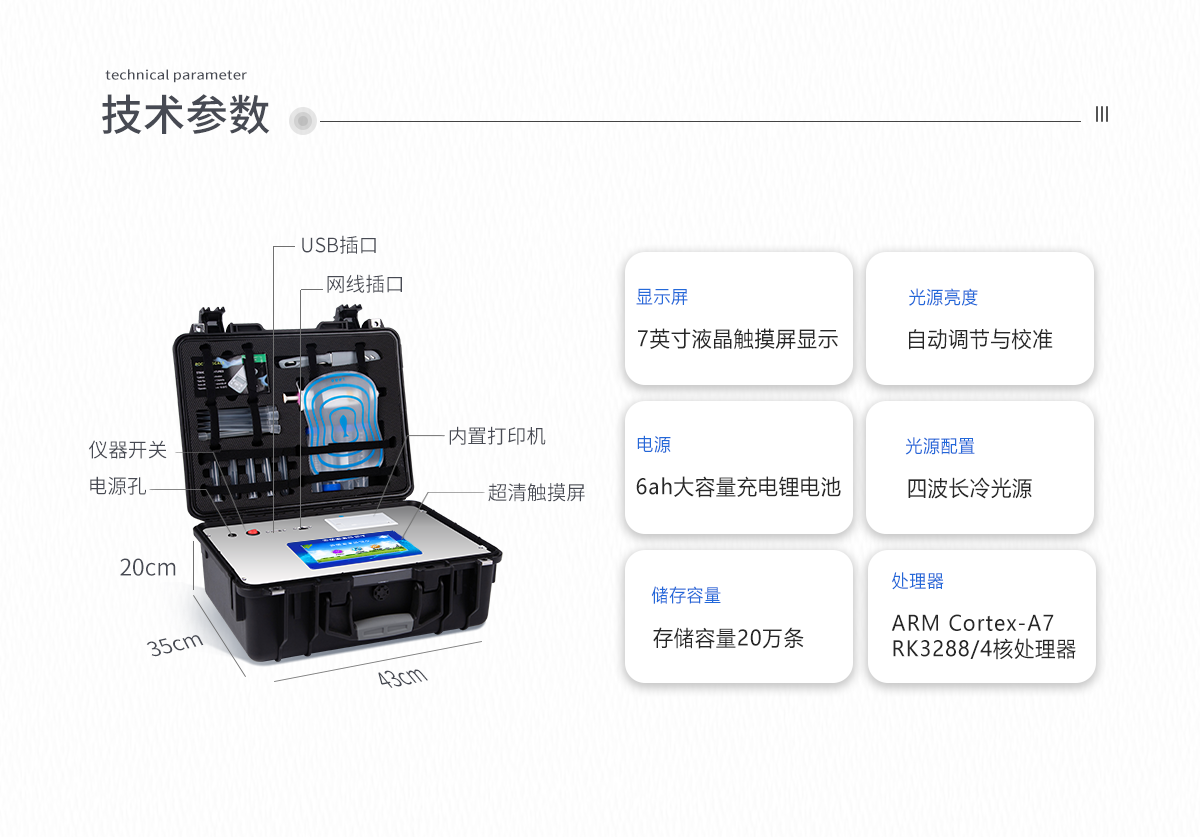

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, faster operation speed, and stronger stability.

2. Display method: 7-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. AC/DC dual purpose, DC 12V power supply, can be connected to car power supply, and can be equipped with a 6Ah large capacity rechargeable lithium battery, convenient for outdoor flow testing.

4. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current and voltage regulation, automatic calibration of light intensity, long-term continuous operation of the light source without temperature drift phenomenon..

7. Built-in new national limit standards, on-site comparison with measured results, and continuous updating of standards.

8. Continuous injection and detection

9. Sample numbers are automatically accumulated.

10. The detection items can be expanded.

11. The detection results can be printed and uploaded in batches.

12. The test results are in an Excel spreadsheet, which can be copied by connecting to a computer.

13. Storage capacity of 200000 test results

14. Standard USB interface, driver free installation.

16. Firmware Upgradable

Technical parameters:

Vomiting toxins:

Detection range: 100-5000ug/kg Sensitivity: 25ug/kg

Aflatoxin:

Detection range: 10-50ug/kg Sensitivity: 0.5ug/kg

Zearalenone:

Detection range: 10-1000ug/kg Sensitivity: 2ug/kg

Ochratoxin:

Detection range: 10-500ug/kg Sensitivity: 5ug/kg

T2 toxin:

Detection range: 100-5000ug/kg Sensitivity: 25ug/kg

Fuma toxin:

Detection range: 100-5000ug/kg Sensitivity: 25ug/kg

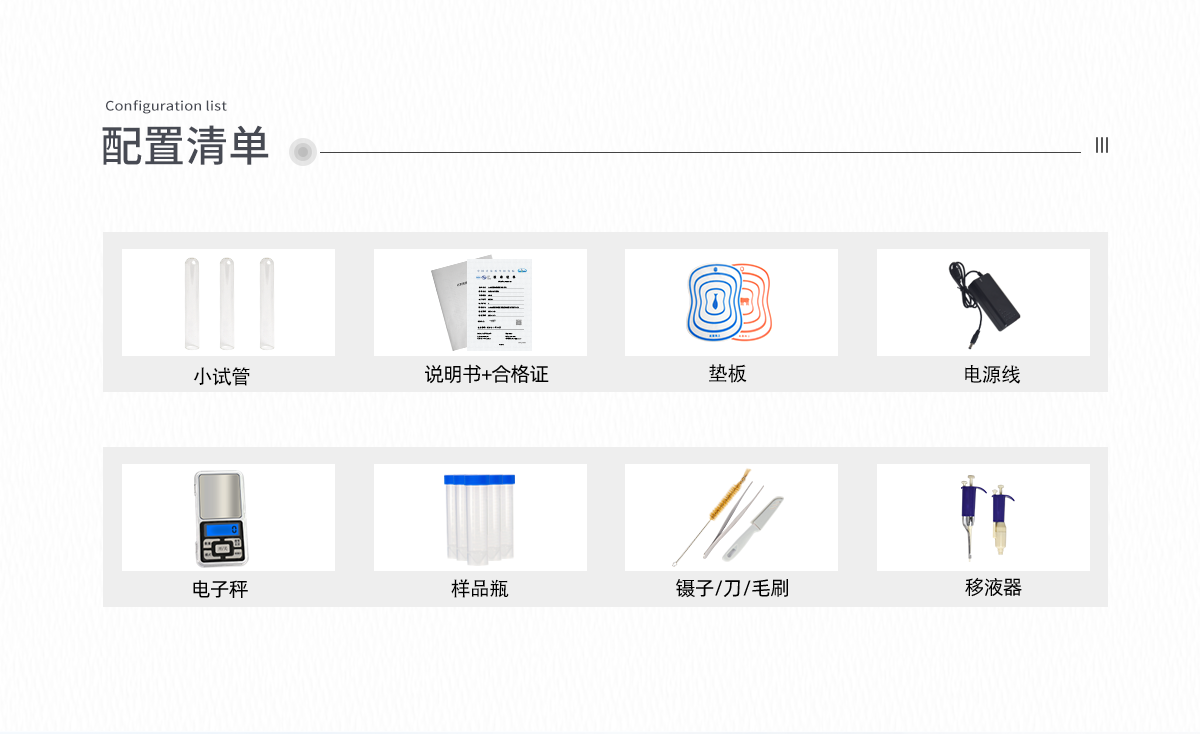

Configuration List of Mycotoxin Quantitative Analyzer

Serial Number Name Model Specification Unit

1 detection host HM-L01 1 set

2 pre-treatment integrated machines with four in one function: 1 unit

2 desktop electronic scales 200g/0.01g, 1 set

1 adjustable pipette 5000ul

1 adjustable pipette 200ul

5 pipette heads 200ul, 100 pieces

6 pipette heads 5000ul, 20 pieces

7 centrifuge tubes 50ml 20 pieces

8 centrifuge tubes 2ml 50 pieces

9 weighing paper with a diameter of 9cm, 1 pack

1 brush with 10 bristles

11 sampling spoons 1

12 power adapter cables 12V5A, 1 piece

13 Instructions 1 copy

14 Certificate of Conformity/Warranty Card 1 copy
