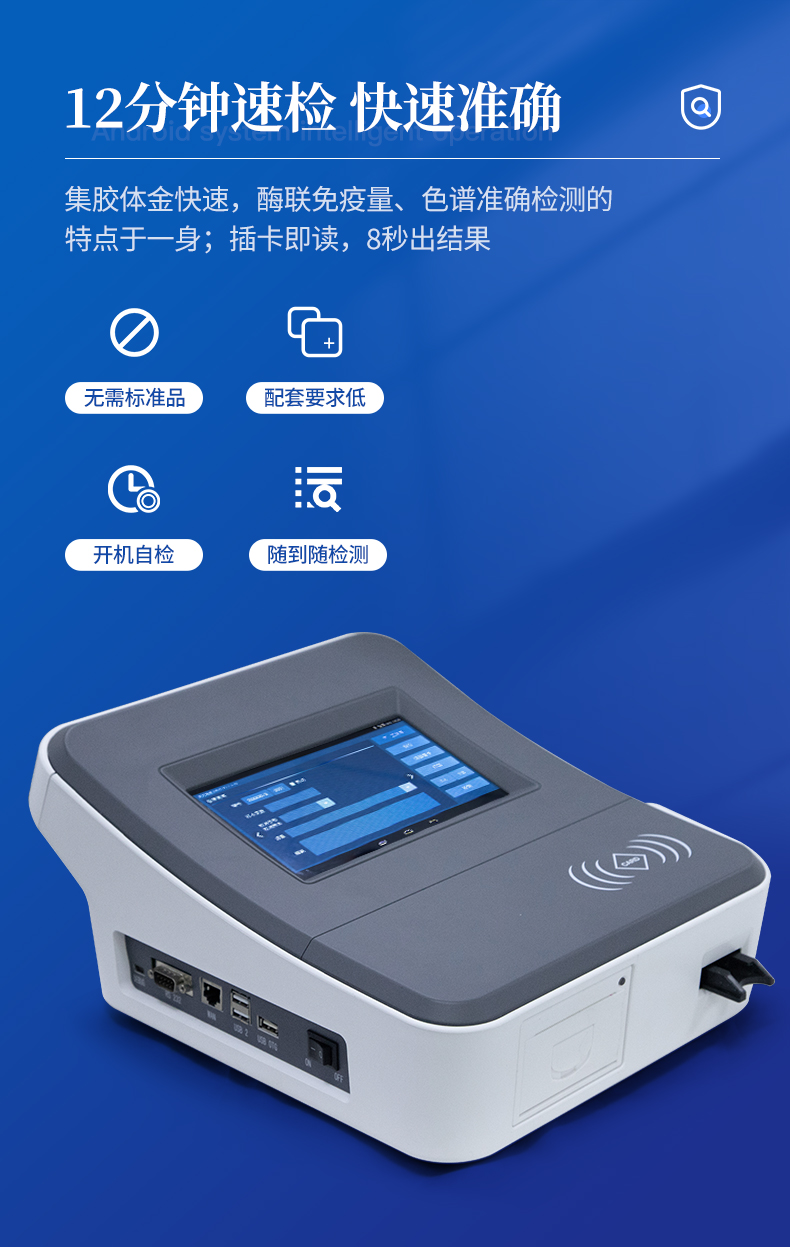

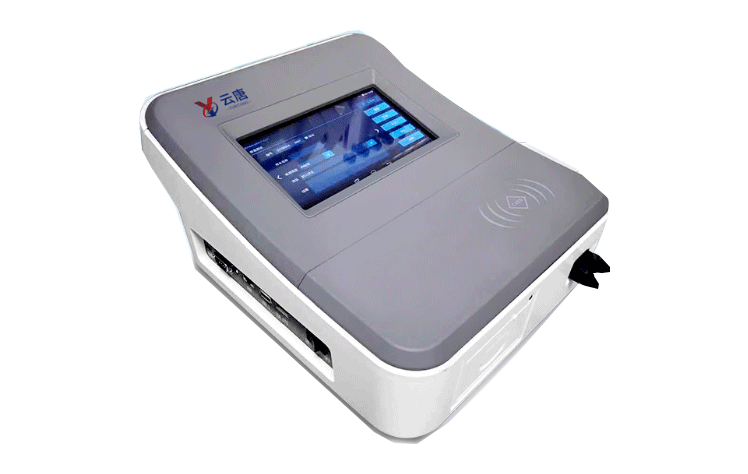

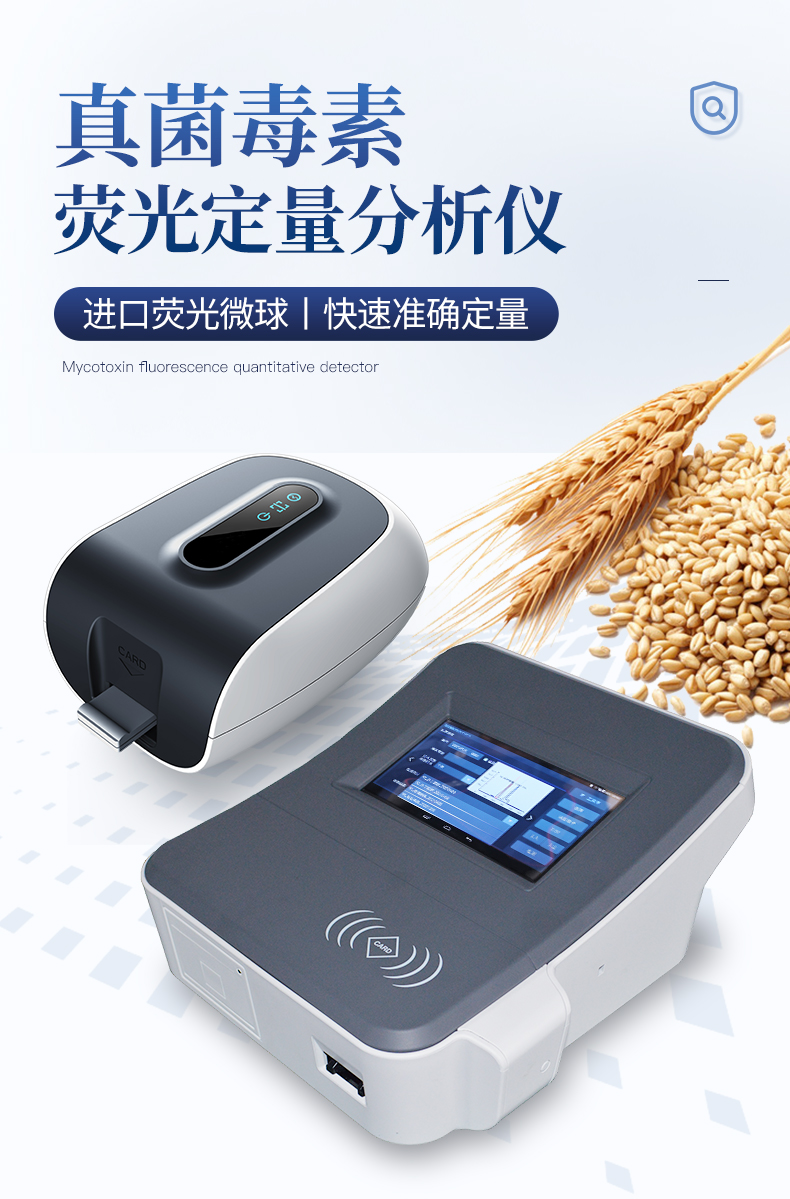

Fungal toxin fluorescence quantitative analyzer

Product Introduction:

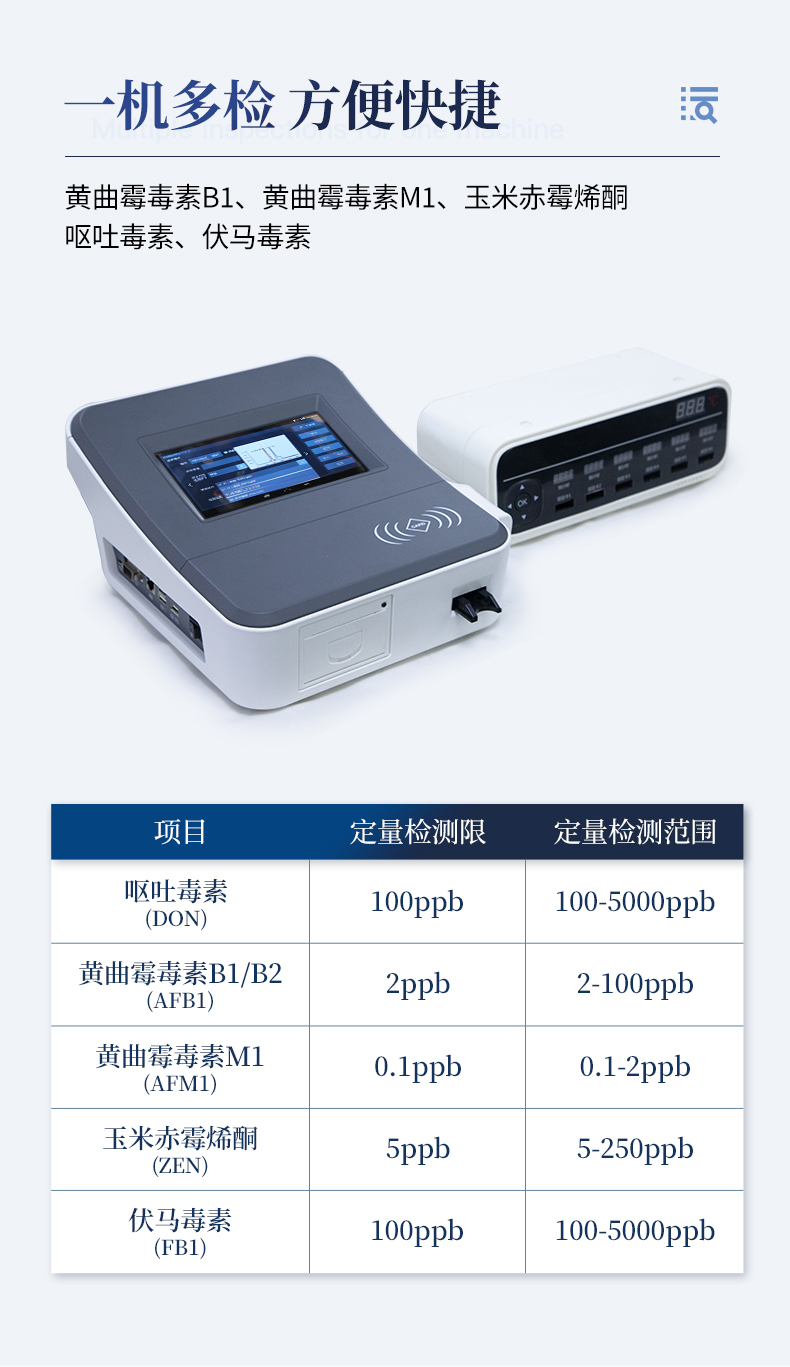

The fungal toxin fluorescence quantitative analyzer can quickly detect aflatoxin B1, aflatoxin M1, zearalenone, vomiting toxin, and fumatoxin in grains, feed, grains, edible oils, and seasonings, such as corn, rice, wheat, barley, brown rice, bran, rice, soybean meal, rice bran, and feed, to prevent toxin pollution and maintain food safety.

Product performance parameters:

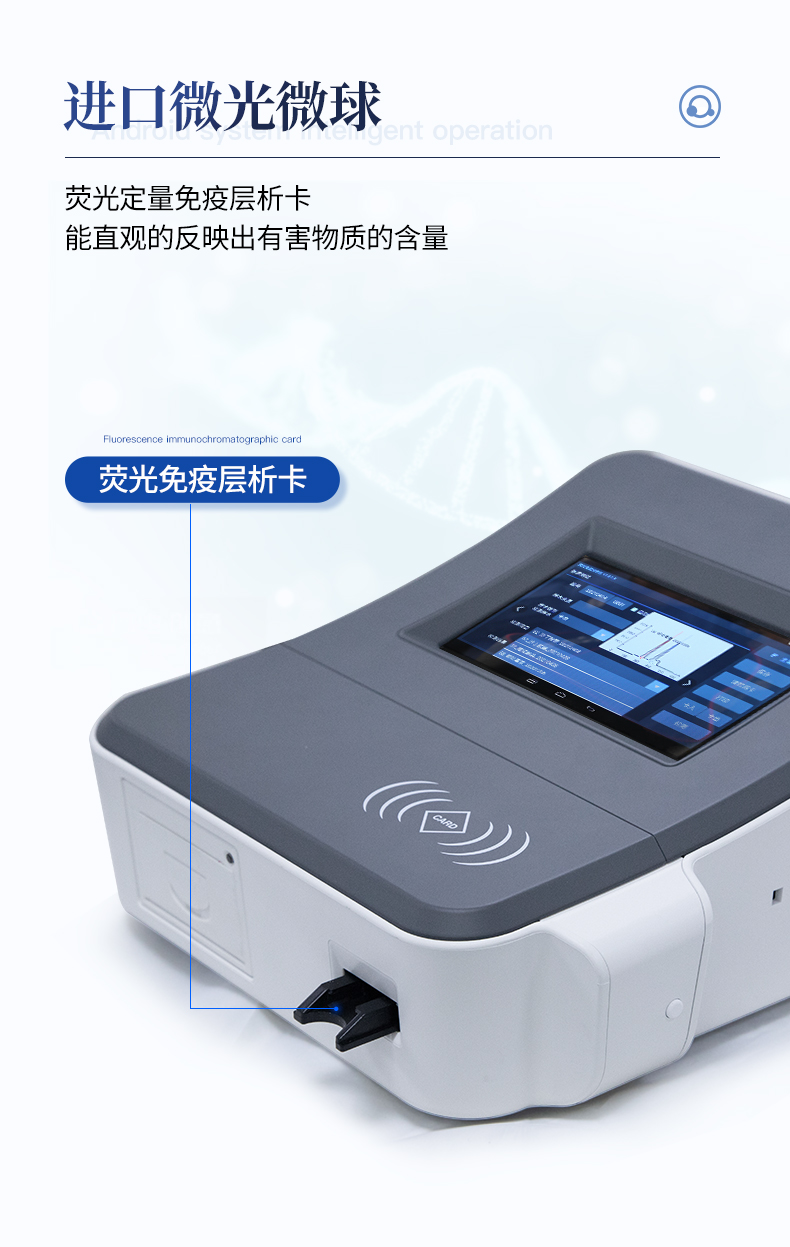

1. The instrument automatically recognizes the detection items, sample types, detection limits, and standard curves on the barcode of the detection card, forming a complete detection data information chain. One card, one control. After inserting the card, the instrument automatically reads the fluorescence signals of the C and T lines displayed on the detection card, and calculates the results automatically based on the standard curve built into the detection card; Users can choose to set detection limits/quantification limits (internal control or national standard limits) based on their own needs.

2. Testing data information collection projects (including but not limited to): The instrument should support at least the following testing data collection: ① Testing projects; ② Sample type; ③ Test samples; ④ National limit; ⑤ Tested by; ⑥ Testing unit; ⑦ Detection time; ⑧ Detection line/limit of quantification; ⑨ Test number; ⑩ Internal control of limited sample sources, and support for remote expansion and upgrading of data collection projects.

3. Detection data collection method: The items ① - ⑨ specified in the detection data information collection project are automatically recognized and collected by the instrument, and the items ⑩ are handwritten input.

4. Testing data upload method: After completing the testing, the instrument can automatically upload all the testing data information specified in the testing data collection project to the testing supervision system platform.

5. Interface: Bluetooth communication interface; Built in wireless WIFI, the detection data is transmitted in real-time to the data supervision platform, and customers can log in to the network through their account to view the detection data in real time.

6. Storage space: 16GB of storage space.

7. Information input: Supports handwritten input in both Chinese and English.

8. Local data management: It has functions such as detecting data storage, querying, batch data deletion, and printing.

9. Testing project management: The instrument supports maintenance and management of testing projects and corresponding national limit remote addition, deletion, etc.

10. Operation permission management: The instrument supports the function of testing operators logging in to the instrument using accounts and passwords, and supports account and password verification on the regulatory system platform.

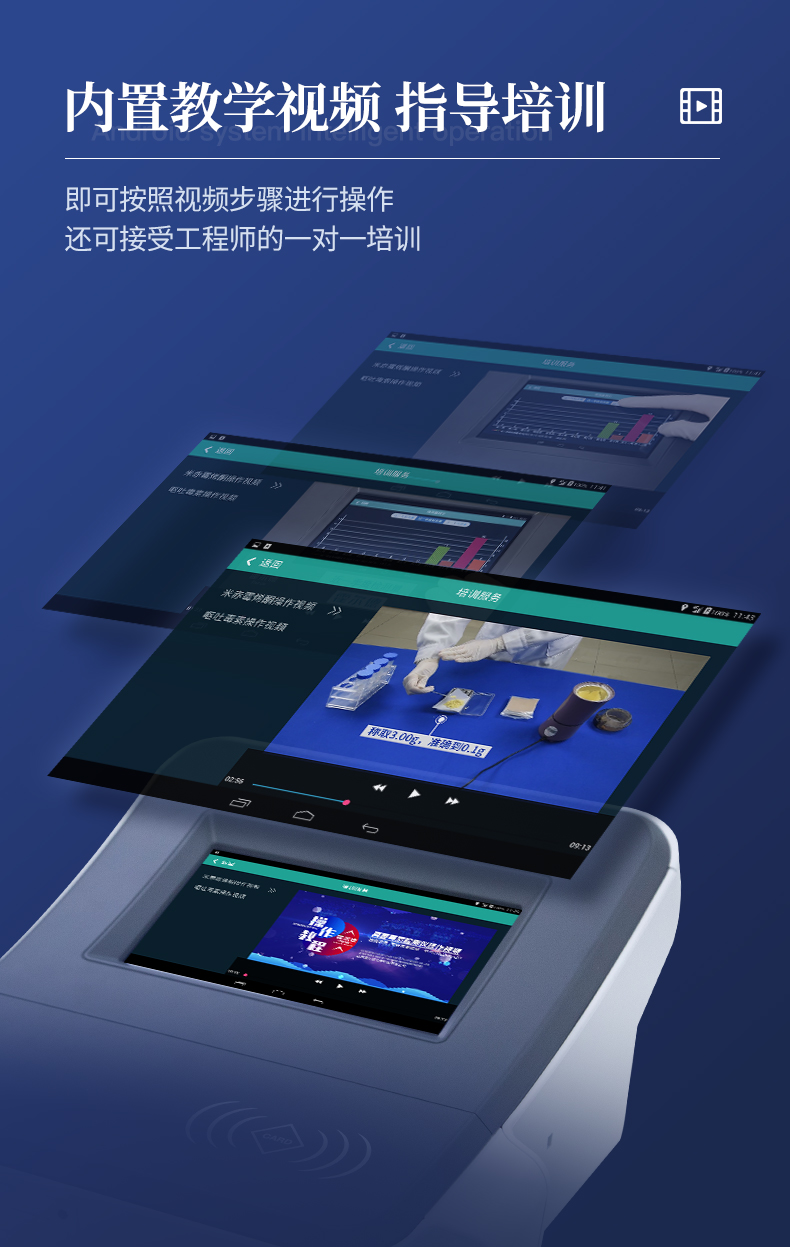

11. Online learning: built-in detection project operation flowchart, teaching software can be updated online in real-time.

12. Working temperature: 5-40 ℃, relative humidity: 10% -90%. Power supply voltage 220V ± 22V, frequency 50Hz ± 1Hz, rated power 40W, connection with power supply: detachable power cord.

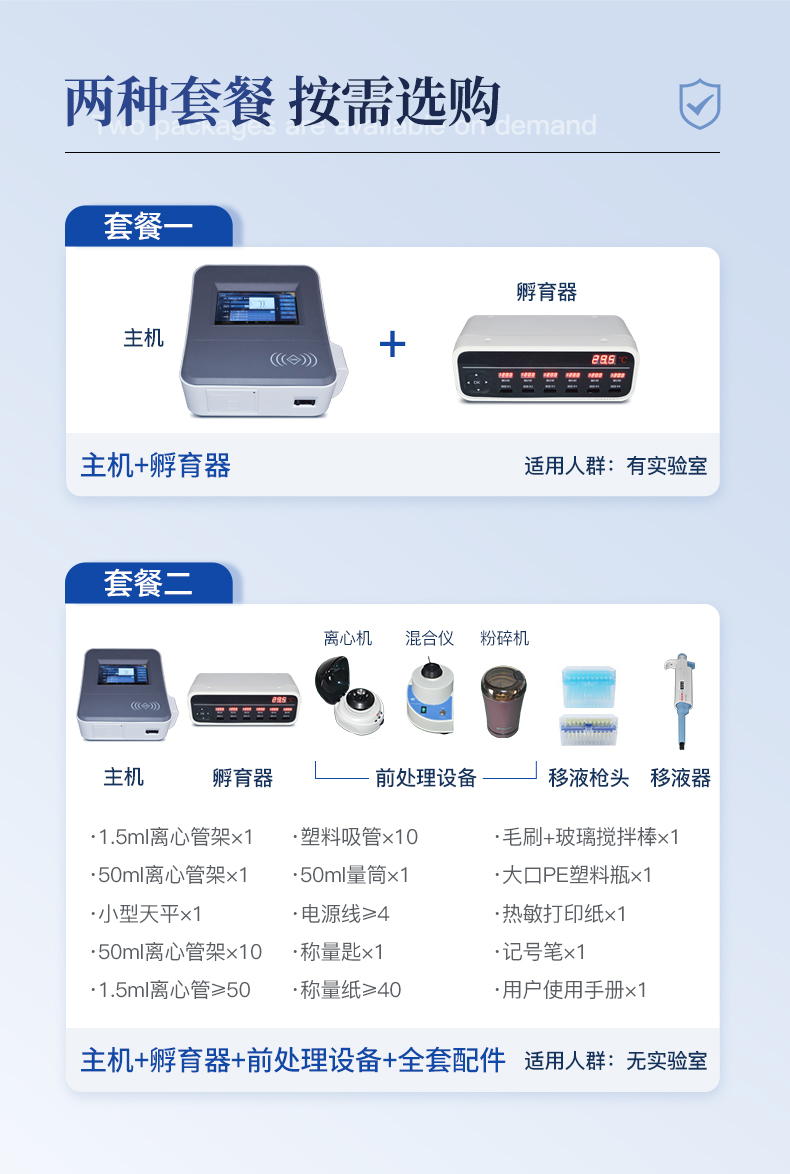

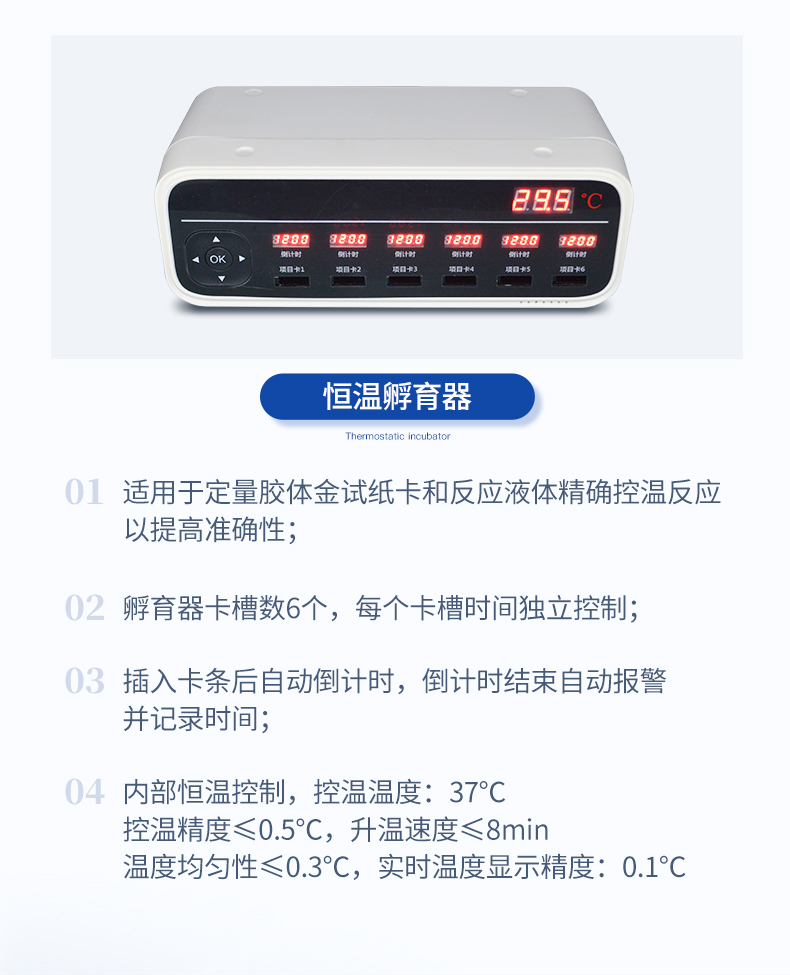

Thermostatic incubator:

(1) Suitable for quantitative colloidal gold test paper cards and accurate temperature control reactions of reaction liquids to improve accuracy;

(2) The number of card slots in the incubator is 6, and the time of each card slot is independently controlled;

(3) Automatically count down after inserting the card strip, automatically alarm when the countdown ends, and record the timeout time;

(4) Internal constant temperature control, temperature control: 37 ℃, temperature control accuracy ≤ 0.5 ℃, heating speed ≤ 8 minutes, temperature uniformity ≤ 0.3 ℃, real-time temperature display accuracy: 0.1 ℃.

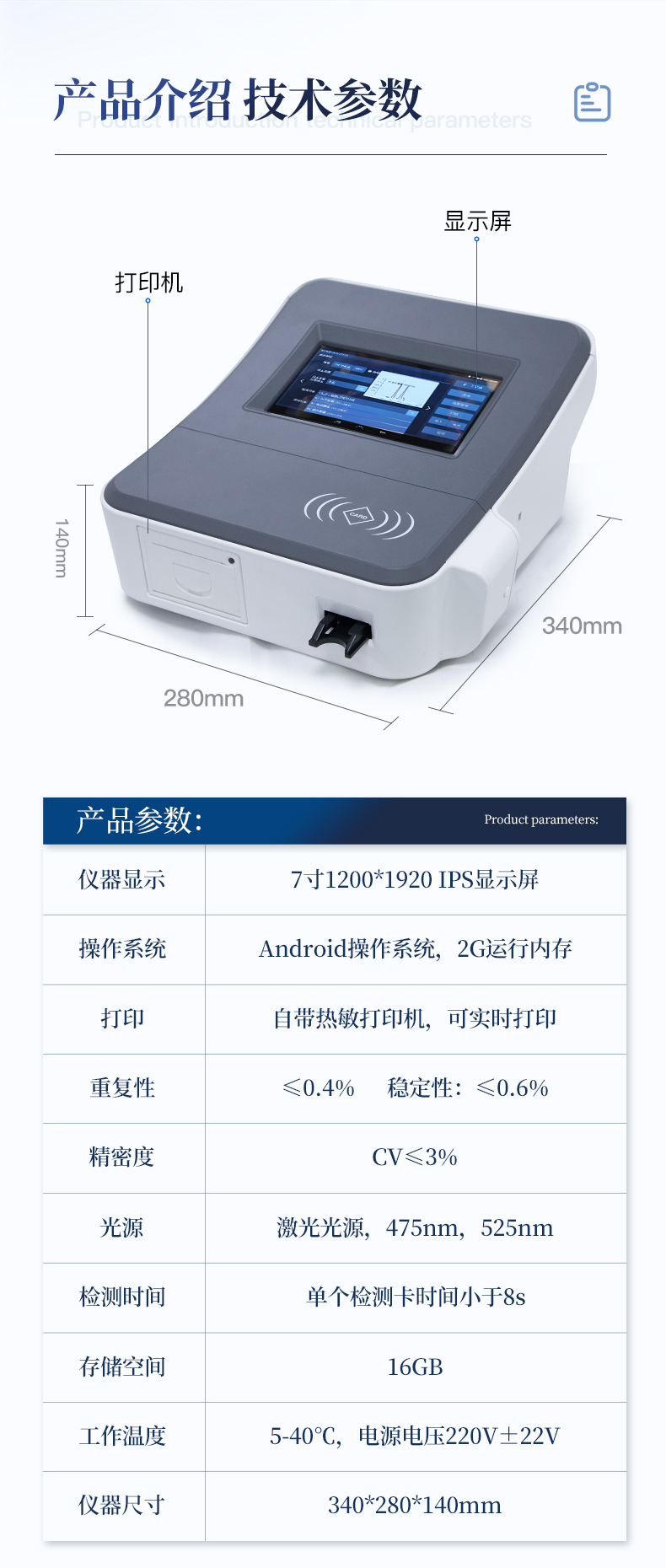

Model: Mycotoxin Fluorescence Quantitative Analyzer YT-YG01

Weight: 3.4kg

Rated power: 20W

Excitation light source: LED blue light

Spectral center wavelength（ λ 0): 470nm

Spectral center wavelength（ λ 1) : 525nm

Sample type:

Please refer to the user manual of the immunofluorescence quantitative detection box for specific details

Volume: 320mm (L) × 265mm (W) × 140mm (H)

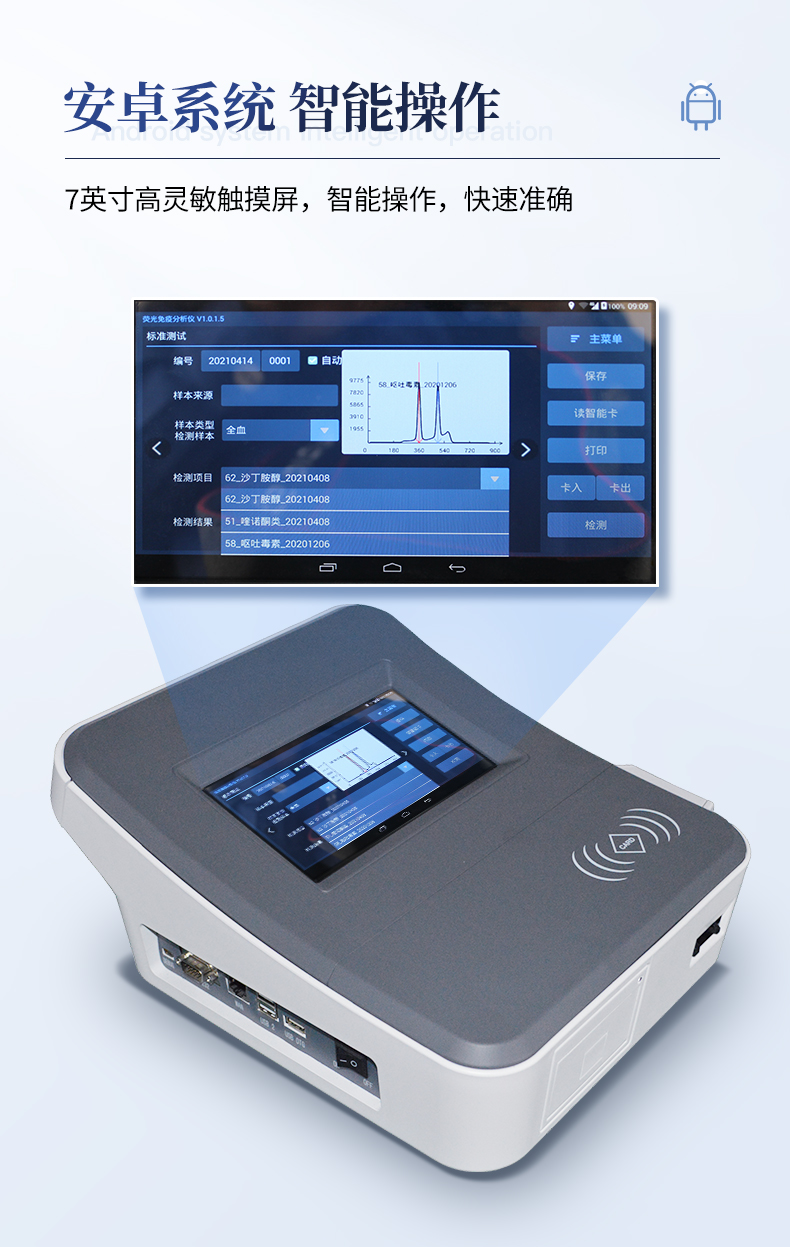

Display: Full touch capacitive screen, 7-inch IPS wide-angle screen

Printing: built-in thermal printer (suitable for 57mm thermal printing paper)

Interface: 3 USB interfaces, 1 mini USB interface, 1 Ethernet interface, and 1 RS232 interface

Software system: Android

Built in (optional): WIFI module, GPS positioning module, Bluetooth module, 4G communication module

performance parameter:

Accuracy: The relative deviation should be within ± 15%.

Repeatability: Within batch measurement (CV,%) ≤ 10%.

Measurement time: 10 seconds

Stability: The relative deviation between the test results at the 4th and 6th hours and the initial test results should be within ± 10%.

Linear correlation coefficient: Within a range of no less than 2 orders of magnitude, the linear correlation coefficient (r) ≥ 0.9900

Environmental requirements:

Operating conditions

Temperature: 5 ℃~40 ℃;

Relative humidity: 10% to 90%;

Atmospheric pressure: 86.0kPa~106.0kPa

Power supply: AC220V, 50Hz
