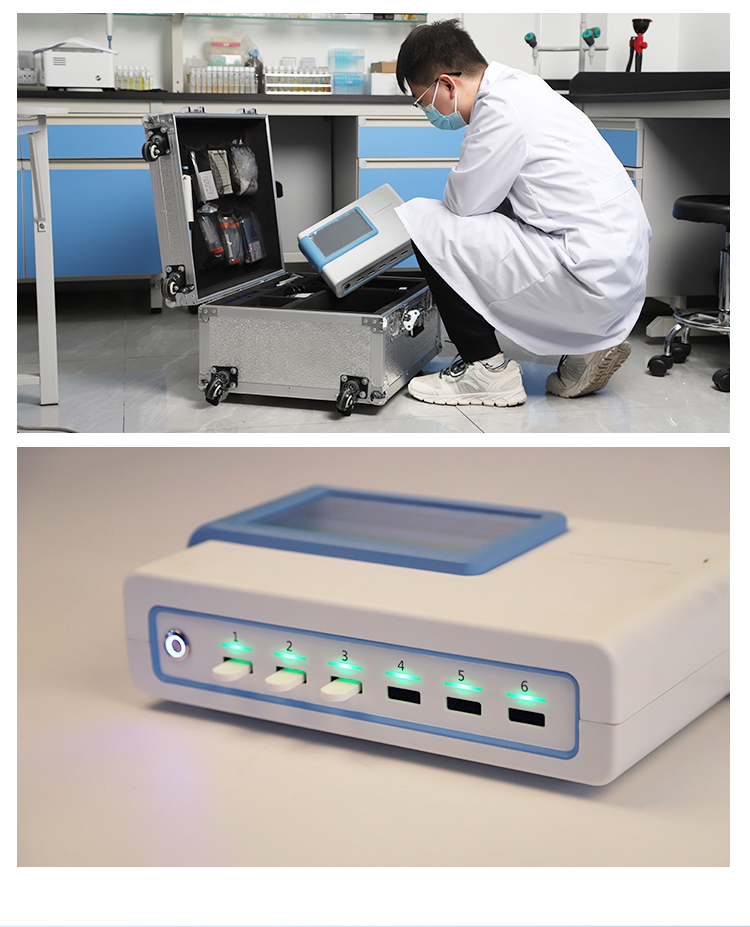

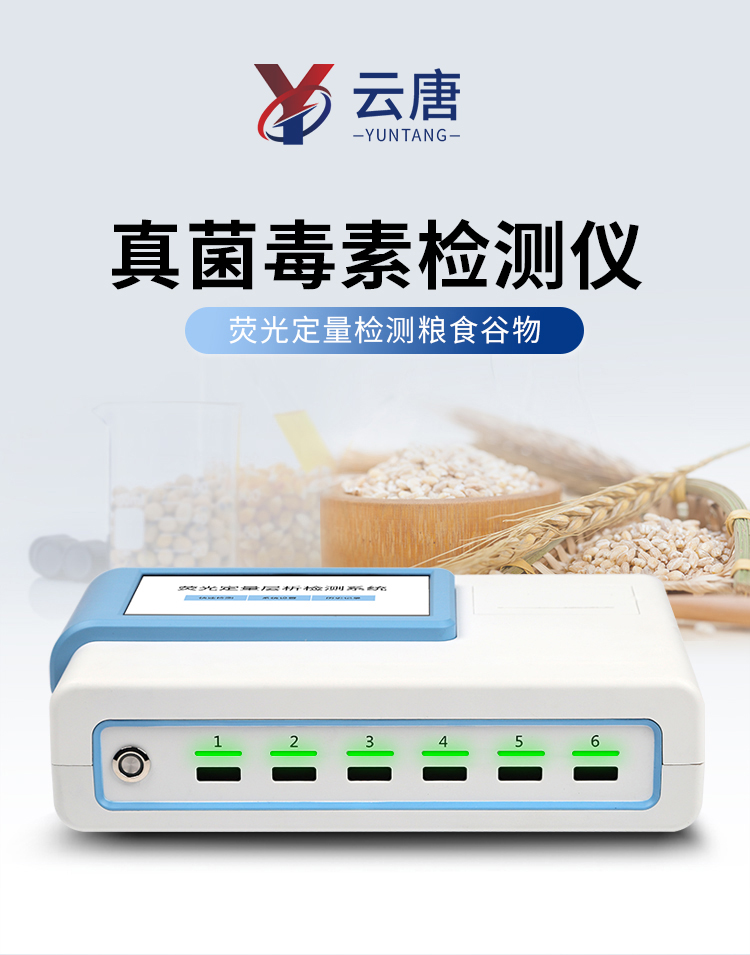

Grain fungal toxin detector

Product Introduction:

The YT-L03 type fungal toxin rapid detection instrument adopts the principle of fluorescence quantitative rapid detection, mainly detecting the content of fungal toxins in grain, oil, and feed, including aflatoxin, zearalenone, vomiting toxin, fumatoxin, ochratoxin, T-2 toxin, etc. The detection sample covers grain (rice, corn, wheat, barley, sorghum, etc.) and its products, feed and its raw materials, edible oils, milk and its products, etc; The sample pre-treatment is simple, and the entire testing process takes 12 minutes. The product is suitable for local grain depots, grain production enterprises, feed factories, various animal husbandry and breeding enterprises, flour mills, food processing plants, third-party testing institutions, and government regulatory departments at all levels.

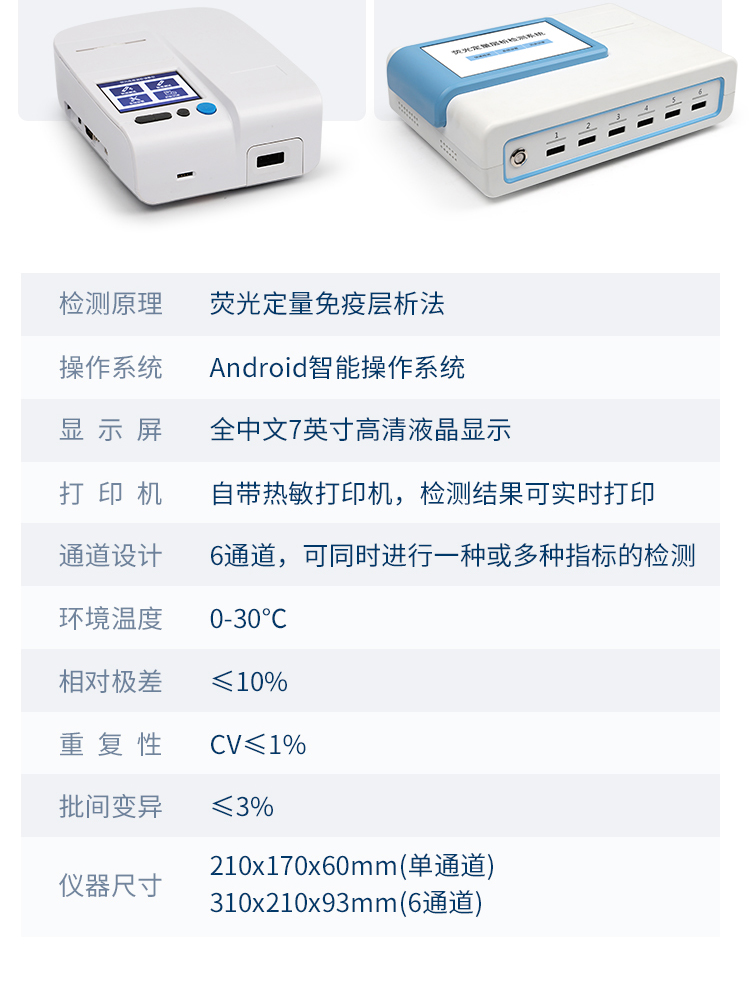

Performance indicators:

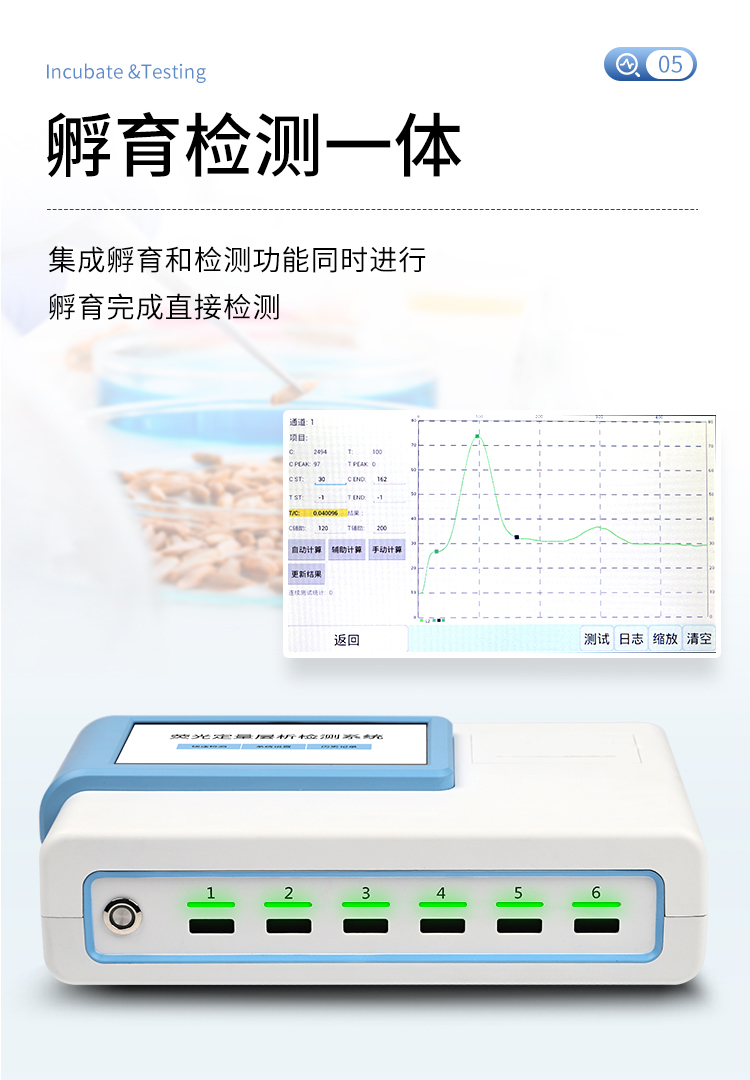

1. Integrated design, with simultaneous incubation and detection functions, and direct detection upon completion of incubation;

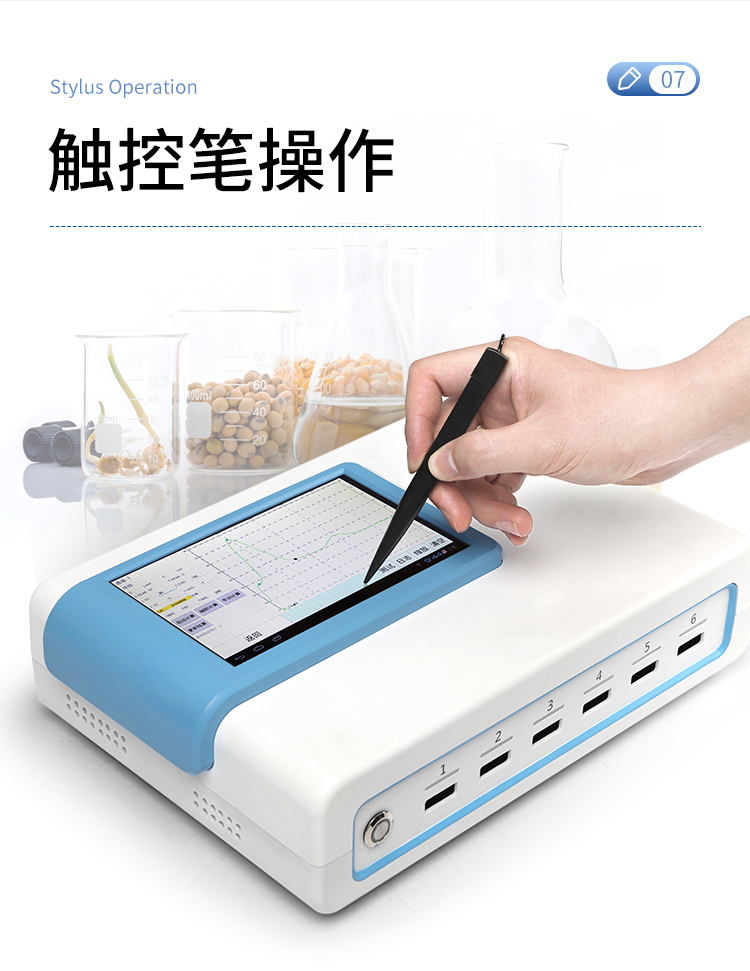

2. Full Chinese 7-inch high-definition LCD display, touch screen operation;

3. Android system, supports online upgrades, and can be connected via WIFI;

4. Detection principle: fluorescence quantitative immunochromatography;

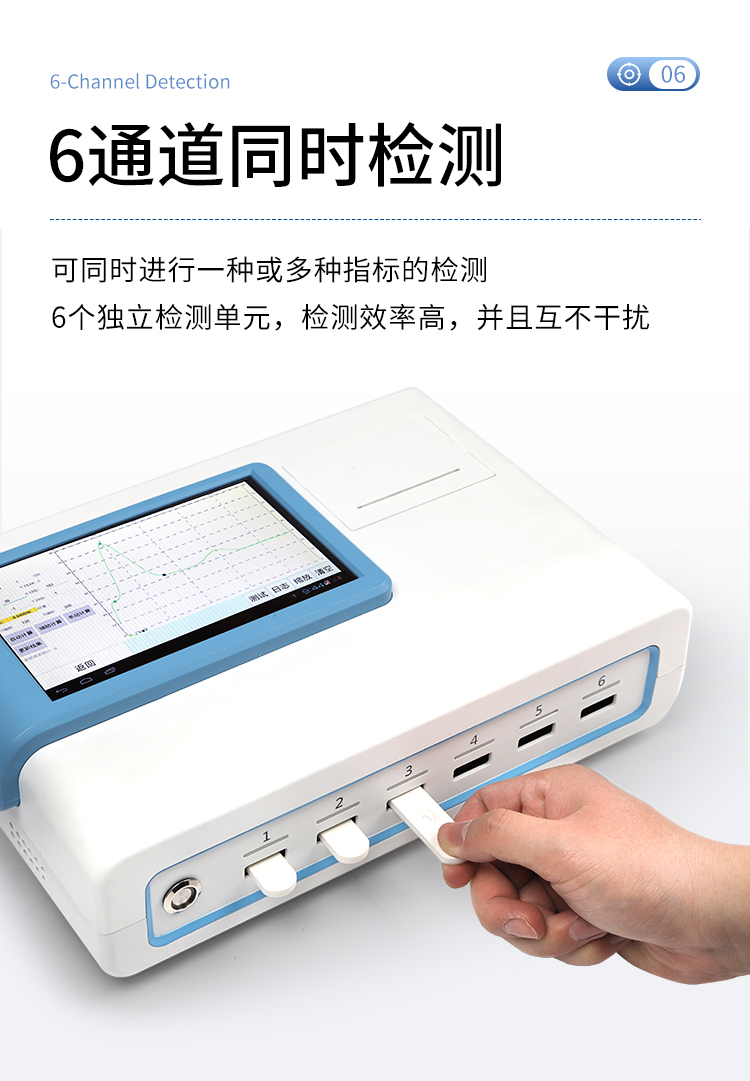

5. 6-channel design, capable of detecting one or more indicators simultaneously, with 6 independent detection units, high detection efficiency, and no interference with each other;

6. Equipped with a QR code automatic recognition system, which can directly recognize detection items, detection processes, and other information;

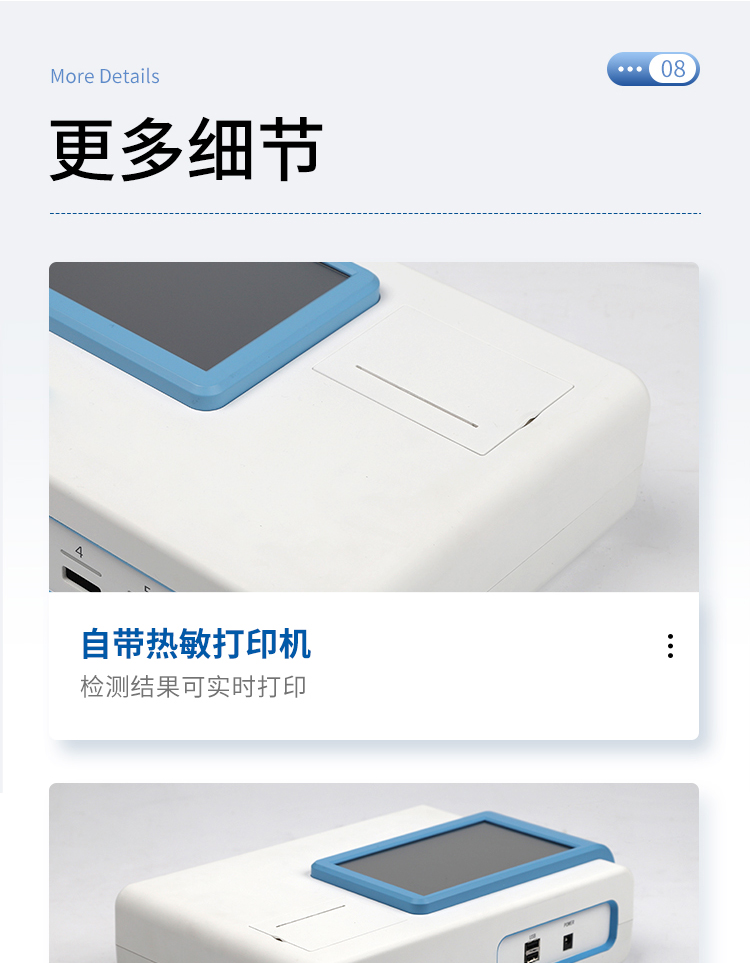

7. The instrument comes with a thermal printer, and the detection results can be printed in real time;

8. Capable of storing detection data (with a storage quantity of no less than 10000 pieces), querying, batch data processing, and printing;

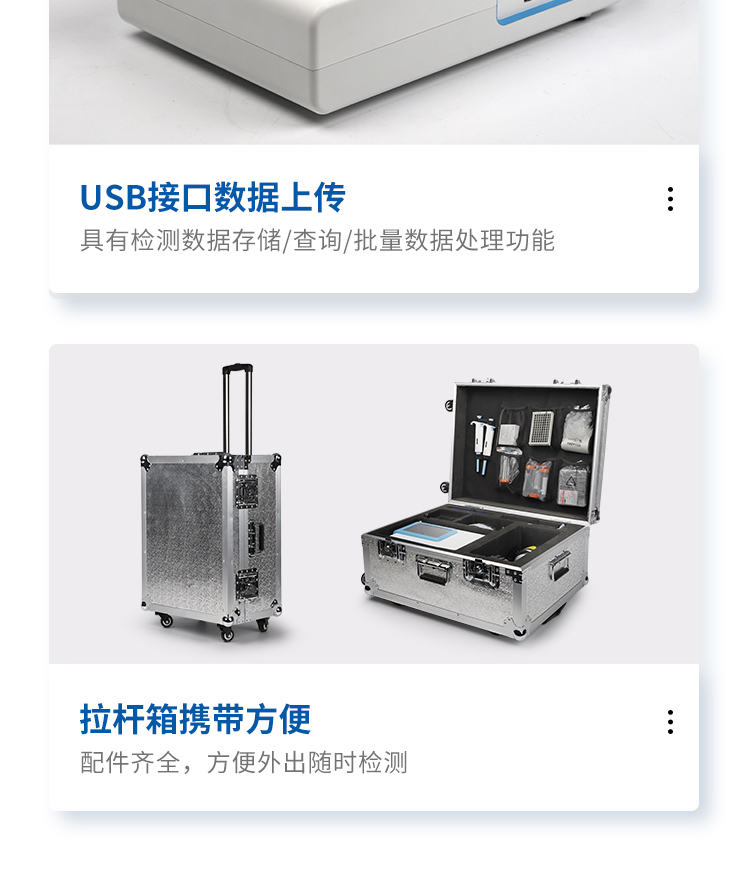

9. The instrument has at least 2 USB interfaces, which can copy results and original data. It has a WiFi access module and can upload data through wireless network connection;

10. Reached working condition within minutes (37 ℃), closed system, not affected by external environment (light, heat) interference, working environment temperature: 0-30 ℃;

11. Relative range ≤ 10%;

12. Repeatability CV ≤ 1%;

13. Inter batch variation ≤ 3%;

14. Size 310x210x93mm

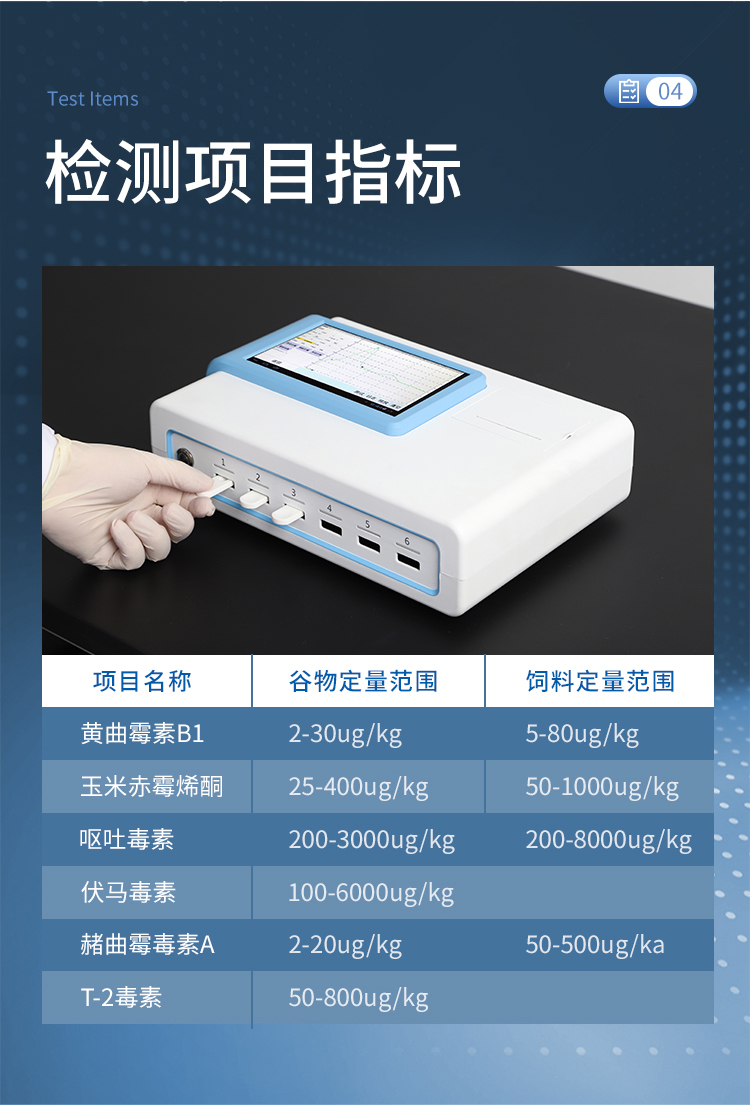

Test item indicators:

Aflatoxin B1 2-30ug/kg (grain) corn, wheat, wheat bran, soybean meal, peanut meal, rice bran meal, corn protein meal, corn germ meal, puffed corn, DDGS, and sprayed corn husk and finished feed

5-80ug/kg (feed)

Zearalenone 25-400ug/kg (grains)

50-1000ug/kg (feed)

Vomiting toxin 200-3000ug/kg (grains)

200-8000ug/kg (feed)

Fumaratoxin 100-6000ug/kg corn, wheat, bran, soybean meal, peanut meal, corn germ meal, puffed corn, DDGS, sprayed corn husk, concentrated feed, calf pellet feed and finished feed

Ochratoxin A 2-20ug/kg (grain) corn, wheat, bran, soybean meal, peanut meal, corn germ meal, puffed corn, DDGS, sprayed corn husk, and finished feed

50-500ug/ka (feed)

T-2 toxin 50-800ug/kg corn, wheat, rice, bran, soybean meal, peanut meal, corn germ meal DDGS, sprayed corn husks, puffed corn, and finished feed
