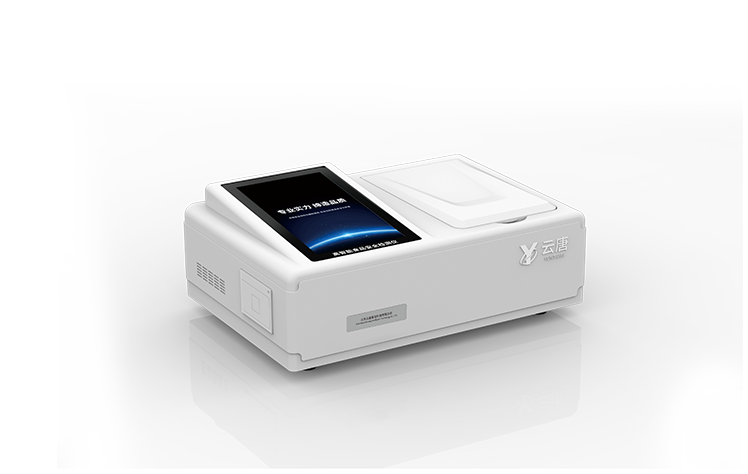

Vomiting toxin detector

The vomiting toxin rapid tester produced by Shandong Yuntang Intelligent Technology Co., Ltd. applies the principle of immunochromatography to quickly analyze whether there are vomiting toxin residues in the sample to be tested; The vomiting toxin detector can quickly detect vomiting toxins in grains, feed, flour, edible oil, seasonings, and other foods such as corn, wheat, rice, barley, millet, and oats. Remote equipment upgrades can be carried out according to future needs. In the future, it can be upgraded to a comprehensive type instrument for testing items such as fungal toxins.

The vomiting toxin detector is an integrated food safety rapid detection and analysis equipment, which is currently widely used in units such as the Food and Drug Administration, health departments, higher education institutions, research institutes, agricultural departments, breeding farms, slaughterhouses, food and meat product deep processing enterprises, and inspection and quarantine departments.

Main technical performance of the instrument:

1. The instrument adopts a 10.1-inch LCD touch screen display, paired with the Android intelligent operating system. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, which runs faster and has stronger performance.

2. The instrument functions include: colloidal gold detection module, digital management module, wireless communication module, etc. It can achieve the detection of all detection items under the same software and display the detection results in the same window.

3. The integrated desktop rapid inspection equipment adopts both AC and DC power supply, can be connected to the vehicle power supply, and is equipped with a 6AH large capacity rechargeable lithium battery, which can meet the needs of on-site and mobile detection. Instrument size: 43 × thirty-five × 20cm, net weight of the host: 5.1kg

4. The system comes with a data integration module, and the device homepage automatically calculates the detection data, including weekly and monthly detection data, total number of all detections, including the total number of detections, qualified and unqualified numbers, as well as relevant column analysis charts. It has a clear grasp of various detection data without the need for computer queries, making it faster and more intuitive.

5. The instrument has a task preset module that allows for preset information such as sample name, testing indicators, and testing unit before sample submission for testing. When samples are submitted for testing, the saved information can be retrieved with one click, making testing more convenient and efficient.

6. Colloidal gold detection module:

The direct insertion automatic scanning method can display real-time images of the gold standard card, and the system automatically analyzes and presents CT curve graphs. The CT lines are automatically recognized without manual adjustment, and the detection card is automatically exited after completion.

The result judgment line can be modified, the calibration value of the reference value can be saved, and data will not be lost after power outage.

Compatible with other colloidal gold cards on the market, with unrestricted use of consumables, greatly enhancing the user experience.

7. The instrument detection system has a huge database and has built comprehensive retrieval and revision functions. The food library covers multiple sample names, which can be added, deleted, or edited as needed; The product database and historical inspection records support one click retrieval function.

8. The system has customized printing, diverse printing formats, product qualification certificates (required by national standards), QR codes, sampling information, testing information, inspection information, review information, sampling date, testing date, and other information results. The printing content can be set according to the needs.

9. A4 version report printing function (optional): The device has two ways to display results, which can automatically generate A4 printing templates and small ticket printing templates. It can be connected to external printers through WiFi and Ethernet cables for printing

10. The instrument has the function of wifi networking upload and RJ45 network cable connection, which can quickly upload data. Synchronize with the regulatory platform, data can be uploaded on both local area networks and the internet, and test results can be directly transmitted to the food safety regulatory platform. Conduct regional food safety supervision, big data analysis and processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning.

11. The device supports USB storage, standard USB interface, and driver free installation. The storage capacity of detection results is over 200000, which can generate Excel spreadsheets for one click copying. It also has login protection function, can set user names and passwords, standardize the operation permissions of different personnel, prevent non staff operations, and can perform recalibration, locking, and restoring factory settings. The instrument firmware can be upgraded, and the later detection projects can be expanded.

12. The instrument has remote upgrade function, which can be targeted to customers for instrument updates. It automatically updates after startup and sustainably updates the system version for free, without the need for traditional products to be returned to the factory for updates. This saves time and labor costs and avoids the potential risk of equipment damage caused by logistics transportation returning to the factory for upgrades.
