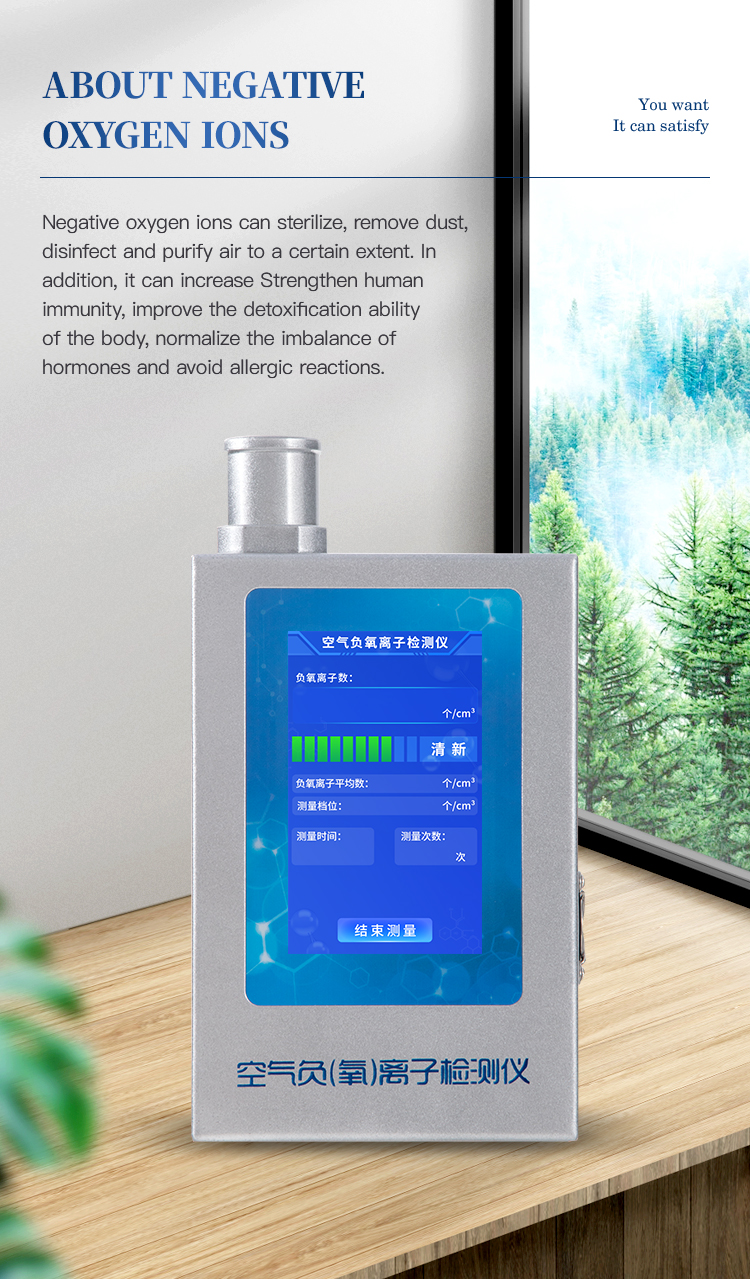

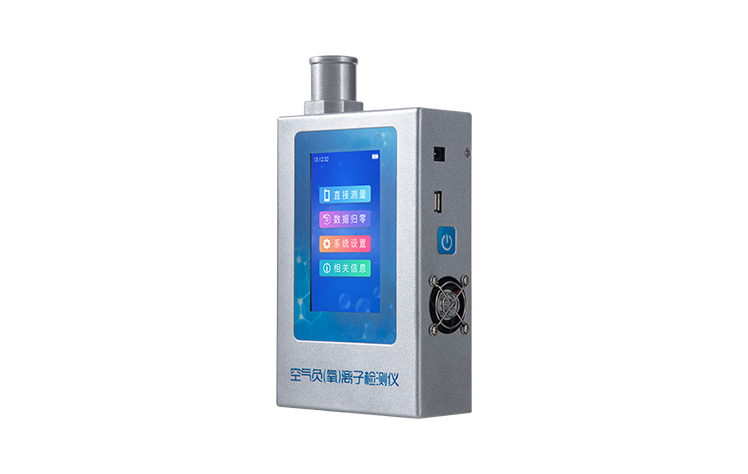

Negative oxygen ion detector YT-FY1

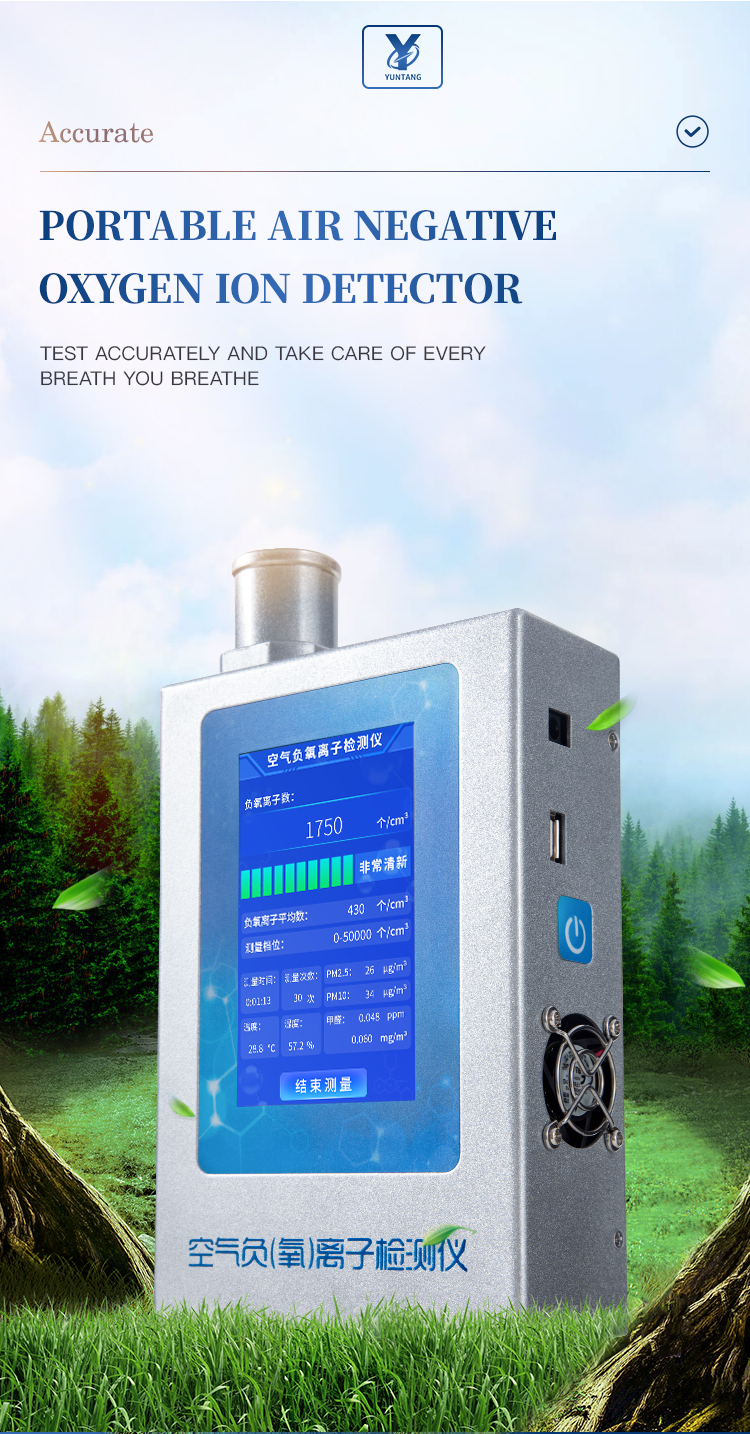

FY1 portable negative (oxygen) ion detector

Features: Mobile measurement | Instant measurement | Intuitive reading | Easy operation | Long standby time

Product Introduction:

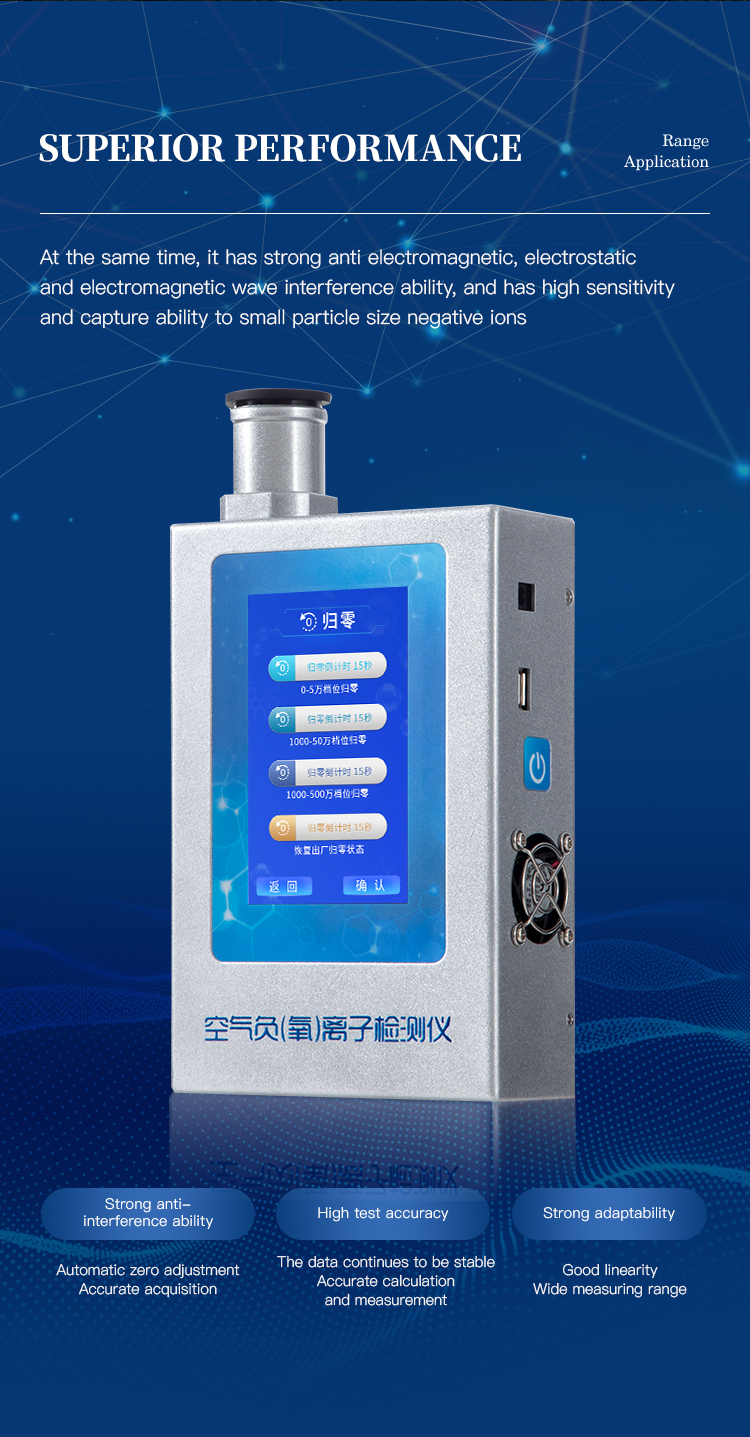

FY1 portable negative (oxygen) ion detector is a high-precision, professional air negative ion detection and analysis instrument. Adopting an advanced cylindrical capacitor structure negative (oxygen) ion capture mechanism, the negative (oxygen) ions contained in the atmosphere are captured, and then precise statistical calculations are performed through a unique algorithm. It has the advantages of stable measurement process, rapid response, and accurate measurement results. At the same time, it has strong resistance to electromagnetic, electrostatic, and electromagnetic wave interference, excellent sensitivity and capture ability for small particle size negative ions, and superior overall performance.

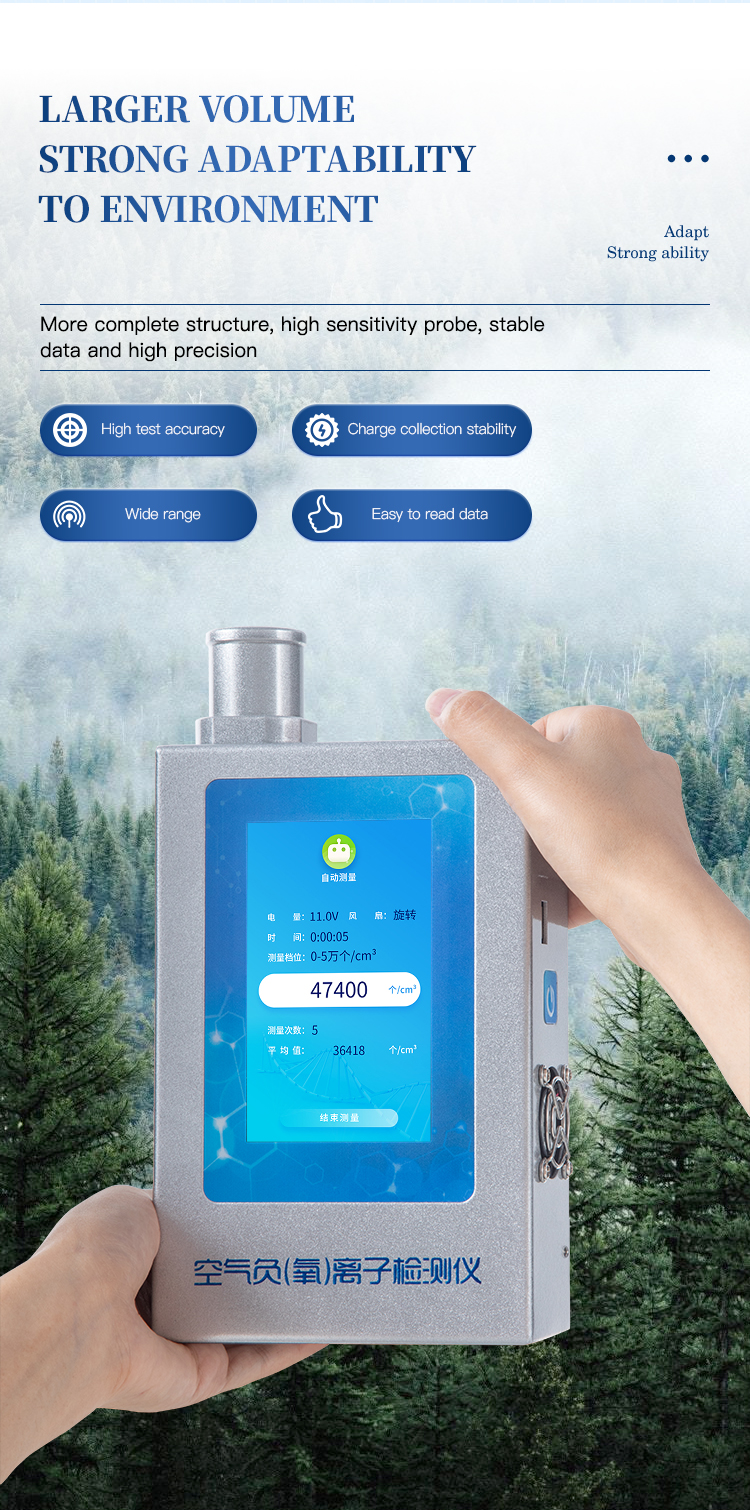

The FY1 portable negative (oxygen) ion detector is easy to operate, with a 5.0-inch full-color large screen displaying real-time measurement data, instrument working status, and automatic calculation of average values. Operators with zero foundation can quickly measure without professional training.

Product application:

Real time measurement of atmospheric negative oxygen ion concentration in the air is the preferred tool for environmental monitoring, nano coatings, negative ion health products, negative ion home decoration and building materials, indoor detection, air treatment, air purifiers and their products to measure and demonstrate negative ion concentration.

working principle:

Using the principle of "capacitive inhalation method" for negative ion detection, measure the concentration of negative ions in the air. Load a quantitative polarization voltage onto the polarizing plate (or bias plate) of the ion sensor (or collection barrel), and then allow the measured air to pass through the sensor at a constant speed according to the set speed. Specific small particle size negative ions in the air are deflected under the action of an electric field and captured by the collection plate. The collected negative ion negative charge can be processed by the collector to calculate the negative ion charge concentration value.

Advantages and Characteristics:

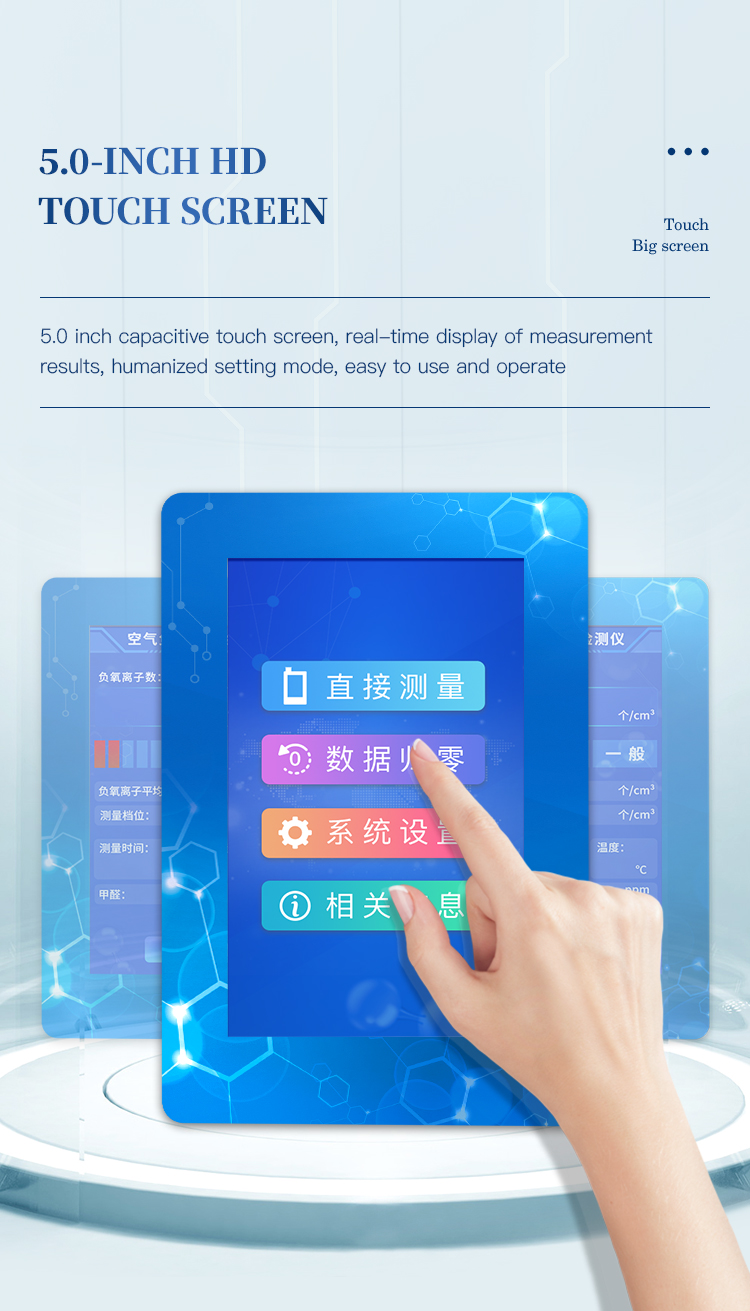

1. Screen display: 5.0-inch capacitive touch screen, 800 * 480 high-resolution, real-time display of negative (oxygen) ion measurement results;

2. Accurate measurement: using internationally advanced cylindrical capacitive suction method as the measurement method;

3. Compact size: With a compact internal structure and exquisite appearance, it can adapt to various environmental inspections and is convenient for mobile use;

4. Ultra long standby: Equipped with a large capacity lithium battery (12V 3000mAh), it is not limited by power supply or location, and can be tested immediately when turned on;

5. Sensitive response: data refresh rate reaches 1 second per time;

6. Easy to operate: The instrument is easy and direct to operate, with clear and vivid full-color large font display;

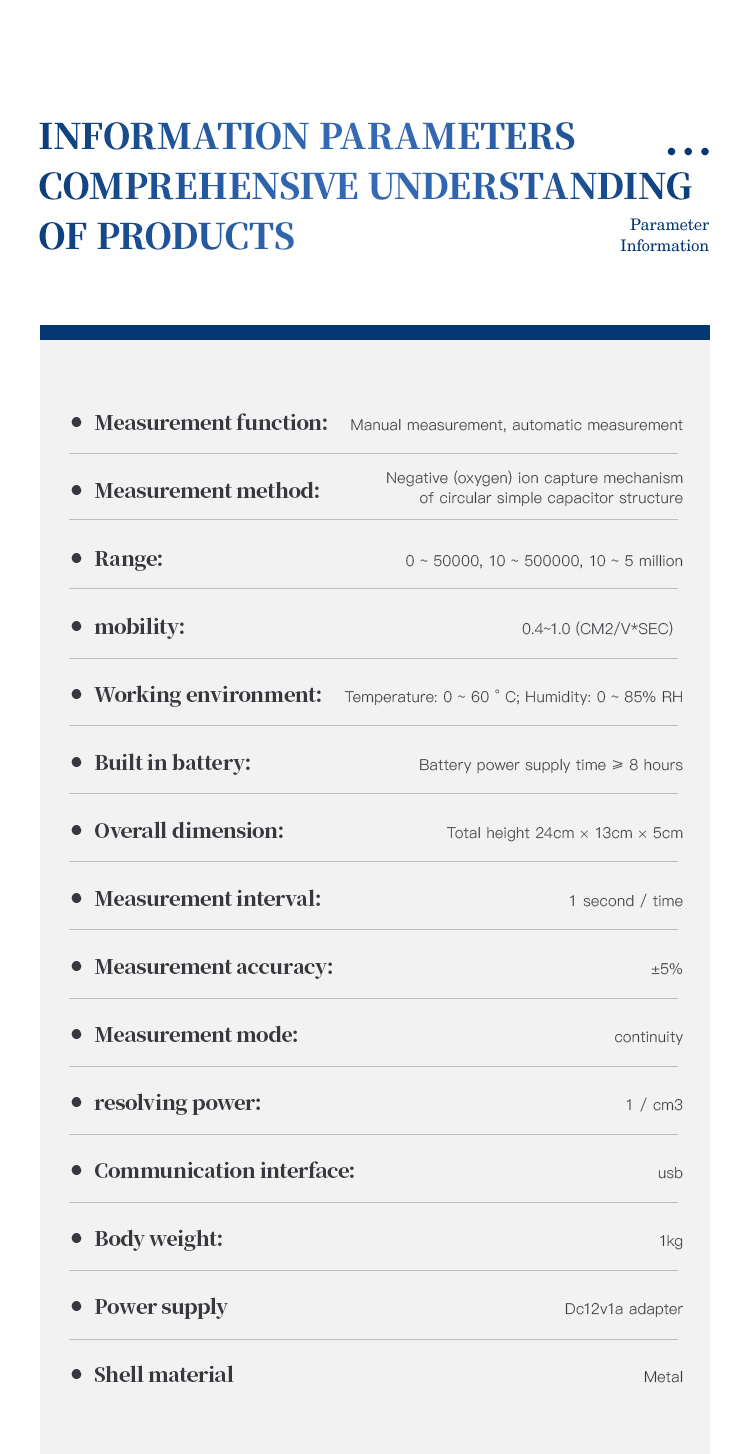

Technical parameters:

Measurement function: manual measurement, automatic measurement;

Measurement method: Negative (oxygen) ion capture mechanism of cylindrical capacitor structure;

Range: 0-100000 range, 10-10000 range, 10-10000 range;

Measurement accuracy: ± 10%

Resolution: 1 piece/cm3

Migration rate: 0.4-1.0 (cm2/V * sec)

Measurement interval: 1 second/time

Measurement mode: continuous

Communication interface: USB

Working environment: Temperature: 0-60 ℃; Humidity: 0-85% RH

Power supply: DC12V 1A adapter

Built in battery: battery power supply time ≥ 8 hours

Average power consumption: ≤ 2W

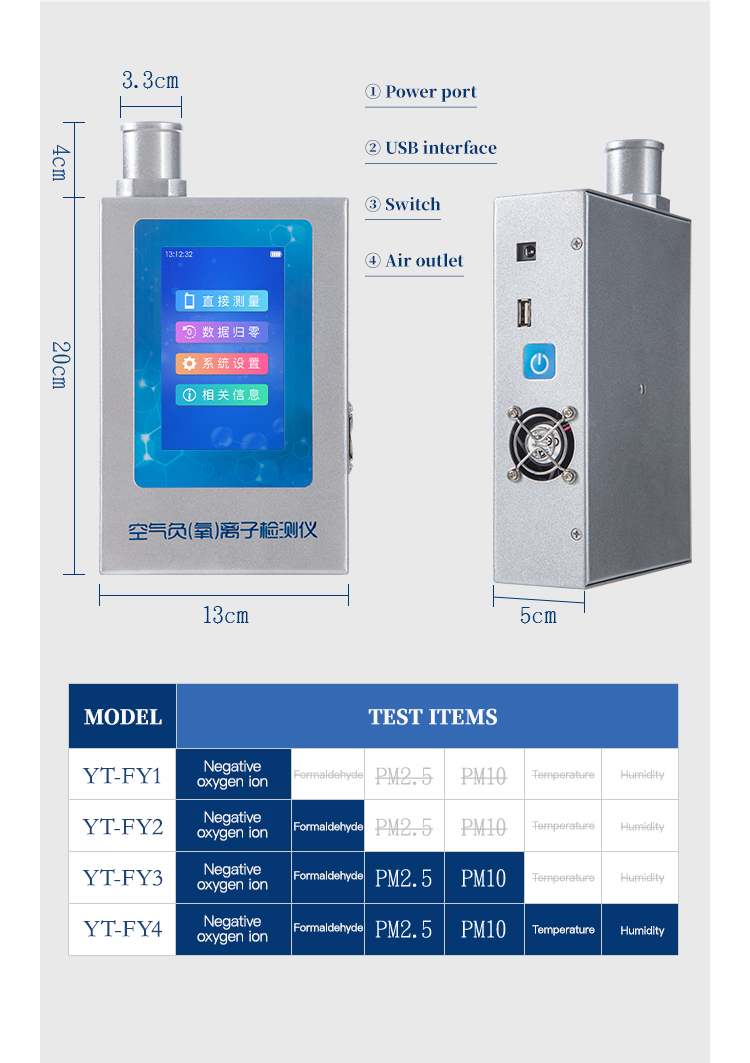

Dimensions: 200mm * 132mm * 58mm

Body weight: 1kg

Shell material: metal

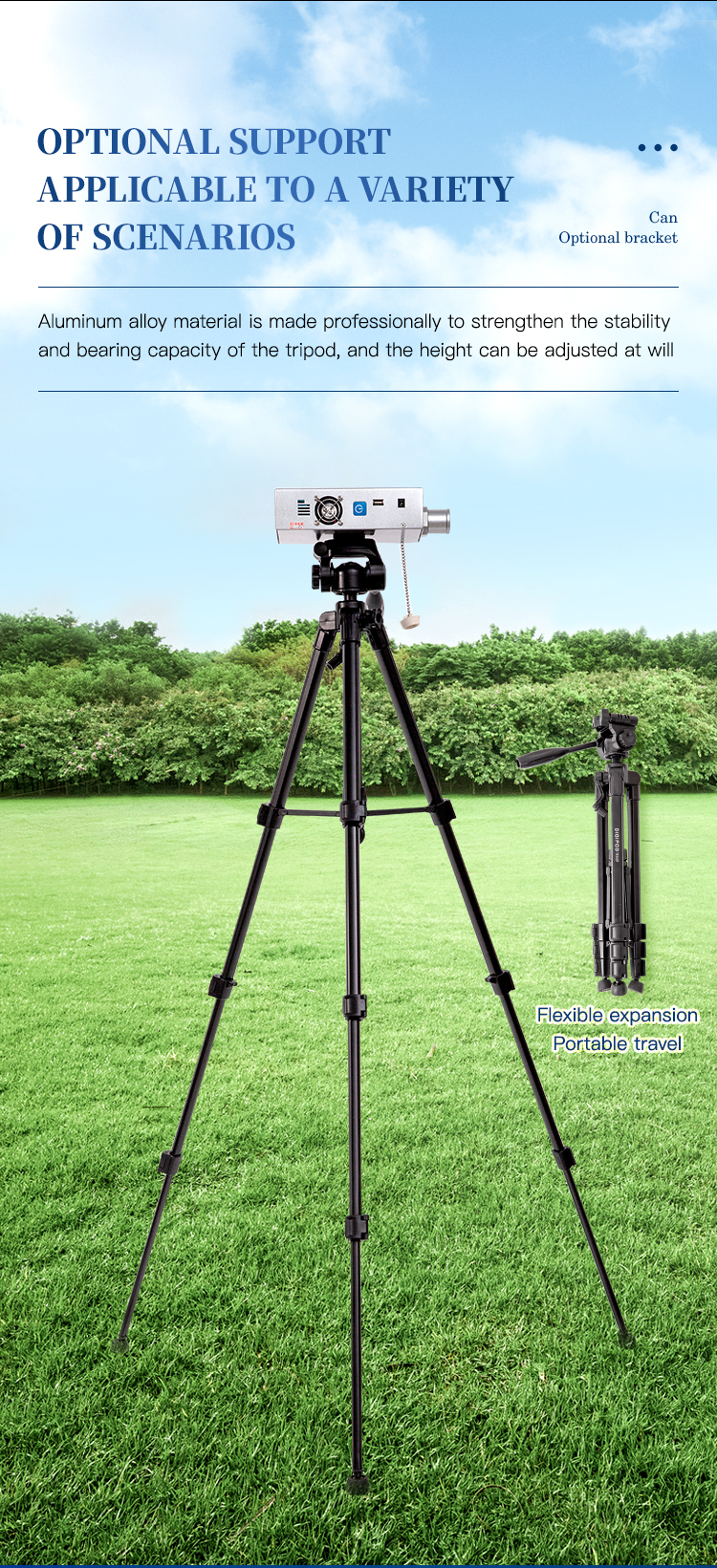

Installation bracket: tripod (optional)

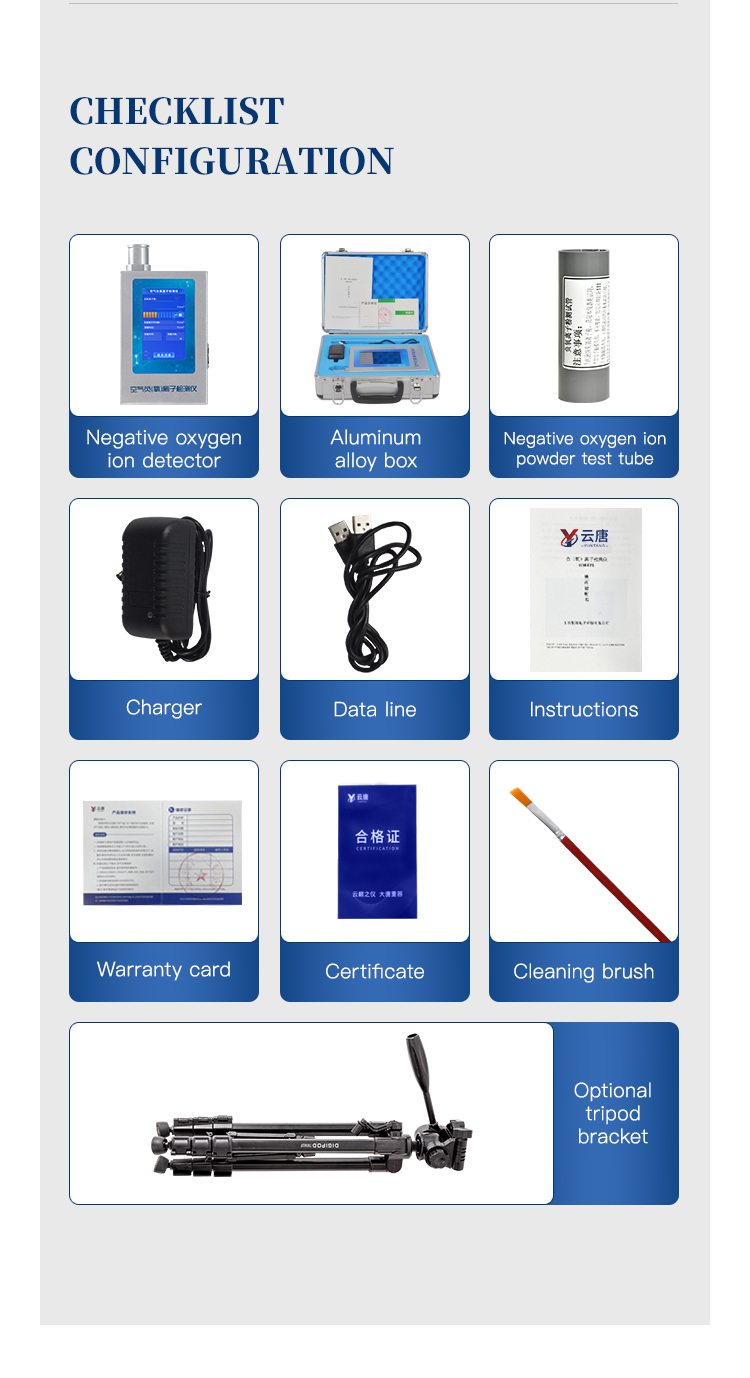

Supporting accessories: adapter, cleaning brush, USB data cable, dedicated protective carrying case
