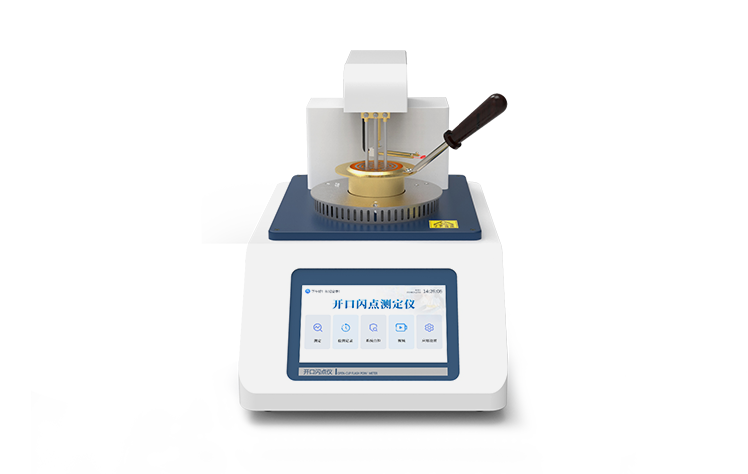

Open flash point tester YT-KS

Product Introduction:

The fully automatic open flash point and ignition point tester is mainly used for measuring the minimum temperature at which petroleum products and other flammable liquids ignite and burn when mixed with air under specific conditions and exposed to a fire source.

Application scope:

Widely used in railway, aviation, power, petroleum industries, and scientific research departments to ensure the safe storage, transportation, and use of materials.

Execution standards:

GB3536-2008(ASTM D92)；

GB/T 267-88；

ISO2592-2000。

working principle:

The instrument is heated according to the heating curve specified in GB/T 3536-2008 method. When the temperature approaches the preset flash point value, it automatically ignites. When the flash point and ignition point occur, the instrument automatically locks the result, displays and prints it, and starts the fan to automatically cool the heater.

Technical parameters:

Project parameters

7-inch high-definition Android touch screen display, 1024 * 600 pixels

Measurement range: Room temperature~400 ℃

Temperature detection A-level PT100 (three wire system, temperature compensation)

Temperature detection accuracy of 0.1 ℃

Barometer accuracy ≤ 0.5kPa

Repeatability ≤ 4 ℃

The expected heating rate is 14 ℃ -17 ℃/min before the flash point of 56 ℃; Starting from 23 ℃ before the expected flash point, the temperature ranges from 5 ℃ to 6 ℃/min

Ignition method: electric ignition

Flash fire detection method: flame ion detection

The ignition point function automatically locks the ignition point value

Cooling method: forced air cooling

Temperature Control Intelligent Temperature Control

Display real-time temperature curve and switch between Chinese and English

Unrestricted data storage, based on EMMC space

Other functions: data export, data upload to cloud platform

The printer is thermal sensitive and supports Chinese characters, graphics, and QR codes with no limit on the number of lines

Self checking function detection arm, scraper, ignition wire, printer, fan, etc

Power supply AC220V ± 10% 50Hz ± 5%

Power ≤ 600W

Environmental temperature 10 ℃~35 ℃

Environmental humidity<85%

Size 43cm * 28cm * 35cm (length * width * height)

Weight 11.3kg
