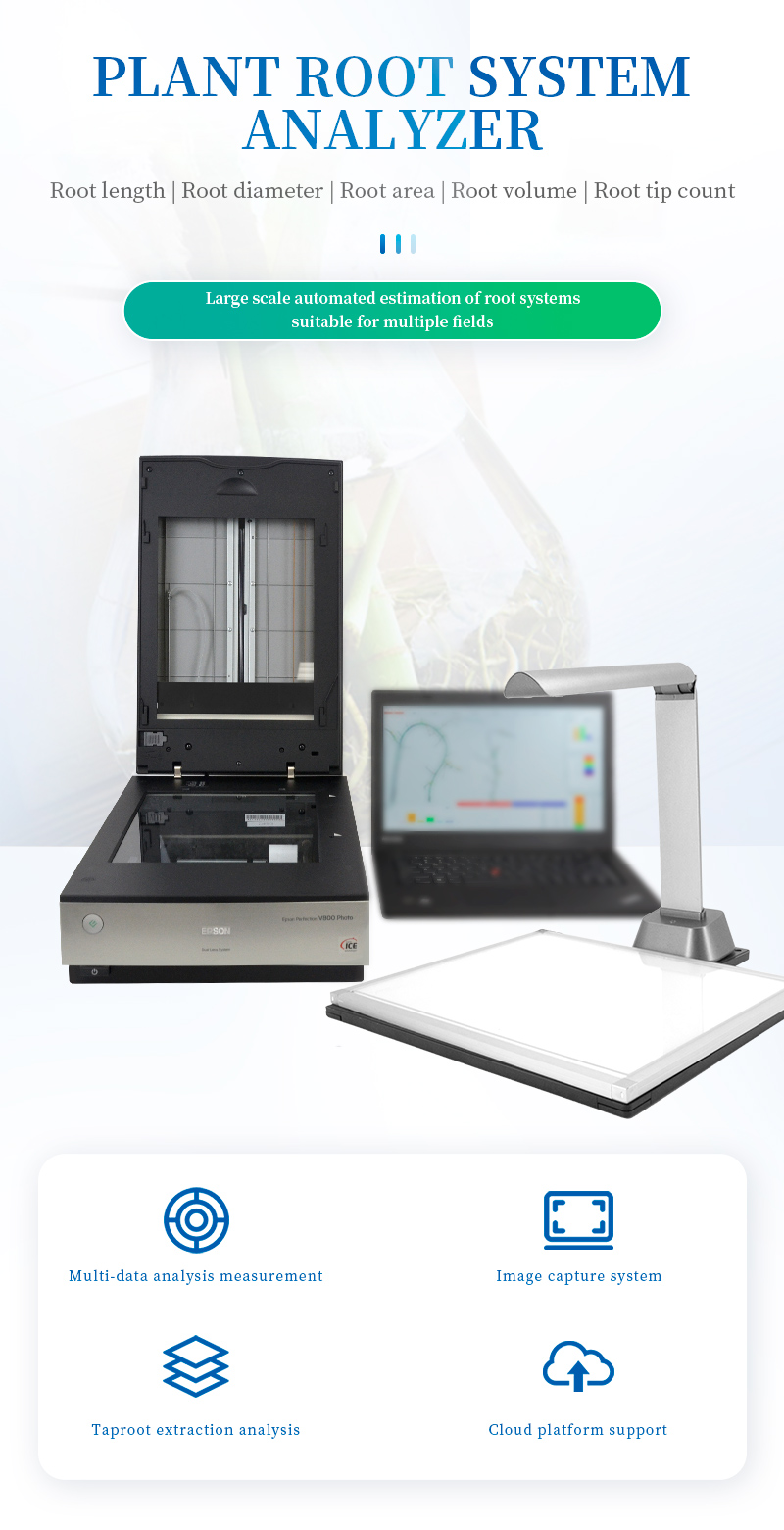

Plant Root Image Analyzer YT-GX02

1、 Instrument usage:

The root analysis system is used for professional root analysis after root washing, and can also be used for root phenotype analysis of root box cultured plants. It can analyze root length, diameter, area, volume, root tip counting, etc. It is powerful, easy to operate, and the software can analyze the morphology and overall structural distribution of plant roots. It is widely used in root morphology and structural research.

2、 Instrument principle:

The root analysis system uses a high-quality graphic scanner to obtain high-resolution color or black and white images of plant roots. The scanner is equipped with a dedicated dual light source illumination system below and on the top cover of the scanning panel, and a dual light source calibration area is reserved on the scanning panel. In addition, it is equipped with specialized, high transparency root placement trays of different sizes. When scanning, the light source under the scanning panel and the light source in the upper cover plate simultaneously scan the root samples in the high transparency root plate. This can avoid the influence of shadows and unevenness that are prone to occur during root scanning, effectively ensuring the quality of the obtained images.

This software for root analysis can read images in TIFF and JPEG standard formats. Using software that inserts encryption dongles for decryption, analyze the high-quality root images obtained from scanning. Using non statistical methods to measure and calculate basic morphological parameters such as root length, diameter, area, volume, and root tip in the overlapping areas. So as to meet the research needs of researchers for different categories and levels of plant roots.

3、 Technical indicators:

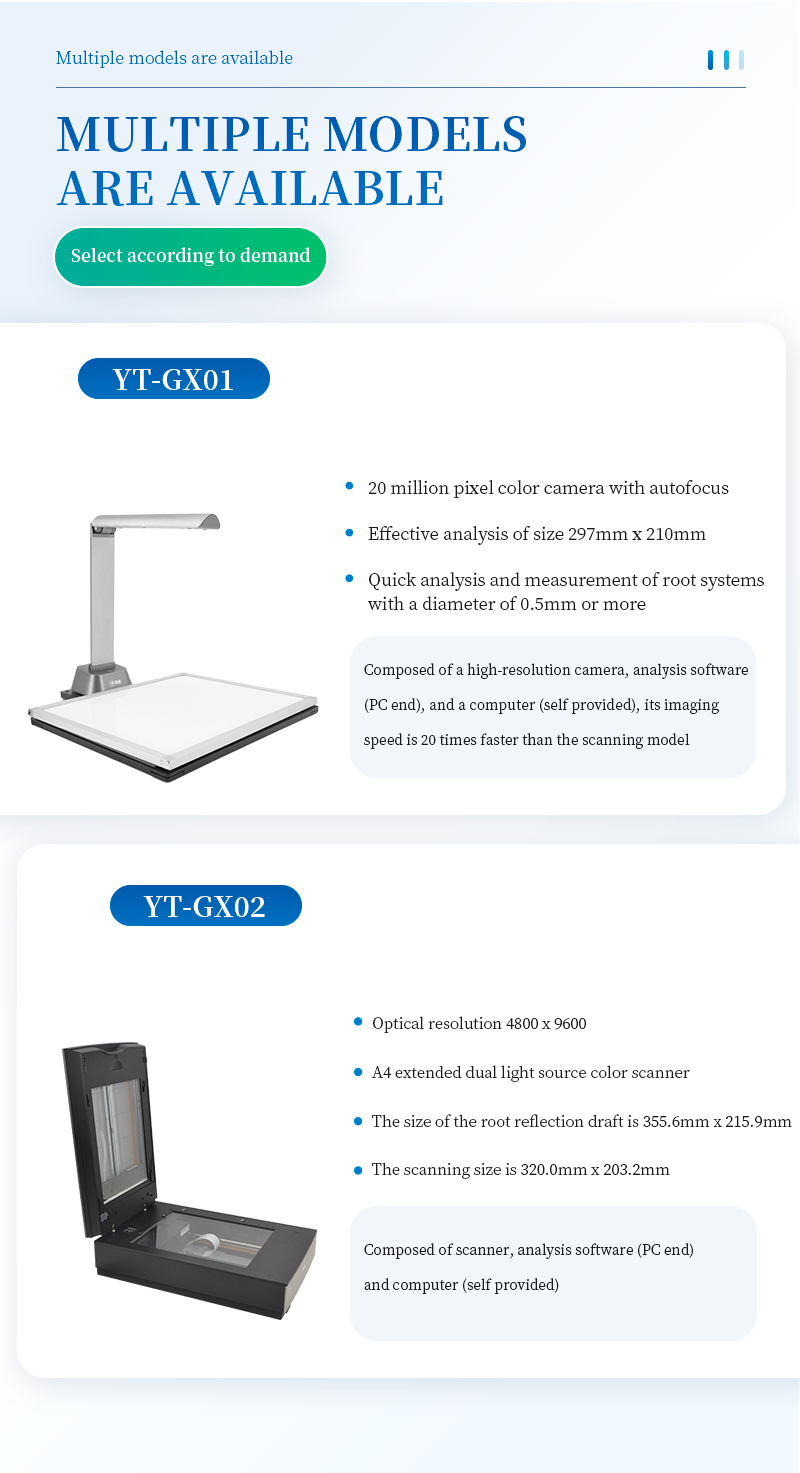

1. Equipped with an optical resolution of 4800 × 9600 and an A4 extended dual light source color scanner. The root reflection draft has a size of 355.6mm × 215.9mm, the through scan size is 320.0mm × 203.2mm, and the minimum pixel size is 0.005mm × 0.0026mm.

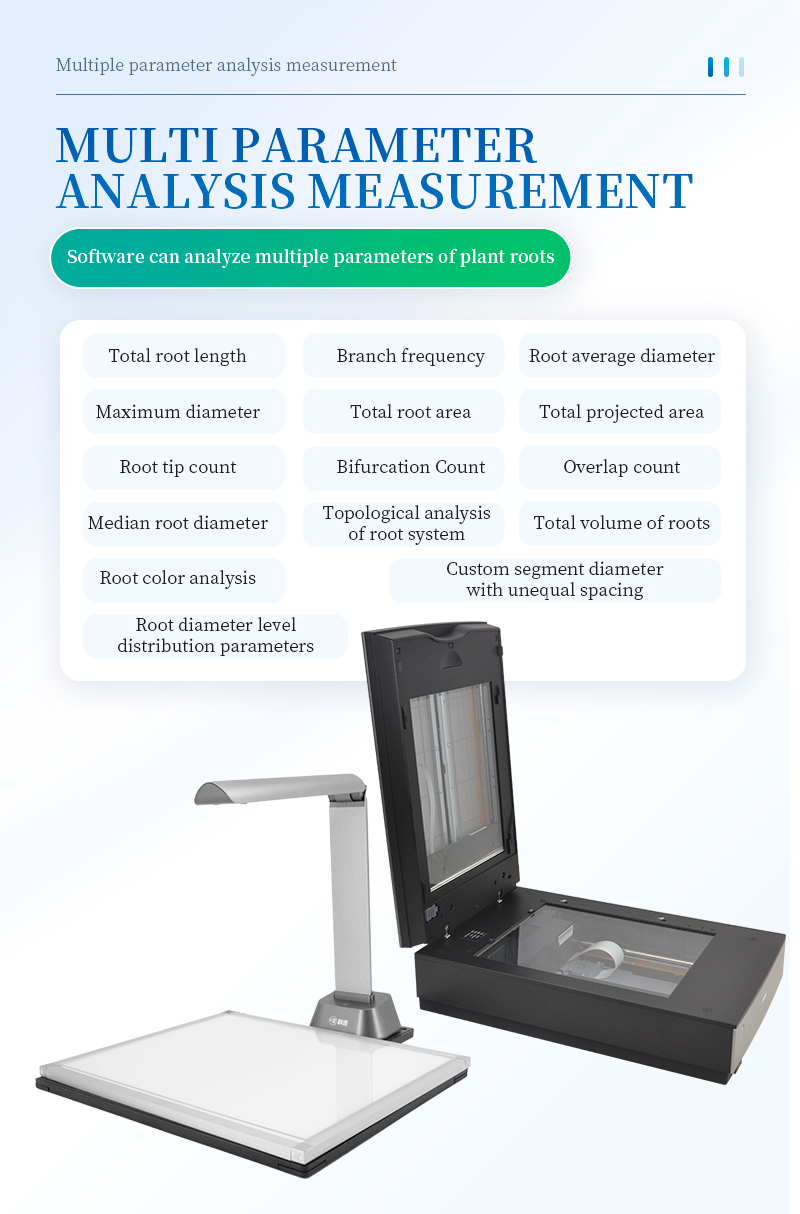

2. Analyzable measurement:

(1) Root length;

(2) Branch frequency;

(3) Root average diameter;

(4) Median root diameter;

(5) Maximum diameter;

(6) Total root area;

(7) Total projected area;

(8) Total volume of roots;

(9) Root tip counting;

(10) Fork counting;

(11) Overlap counting;

(12) Root diameter grade distribution parameters;

(13) Customizable segmented diameters with unequal spacing, automatically measuring the length, projected area, surface area, volume, and distribution parameters of each diameter segment.

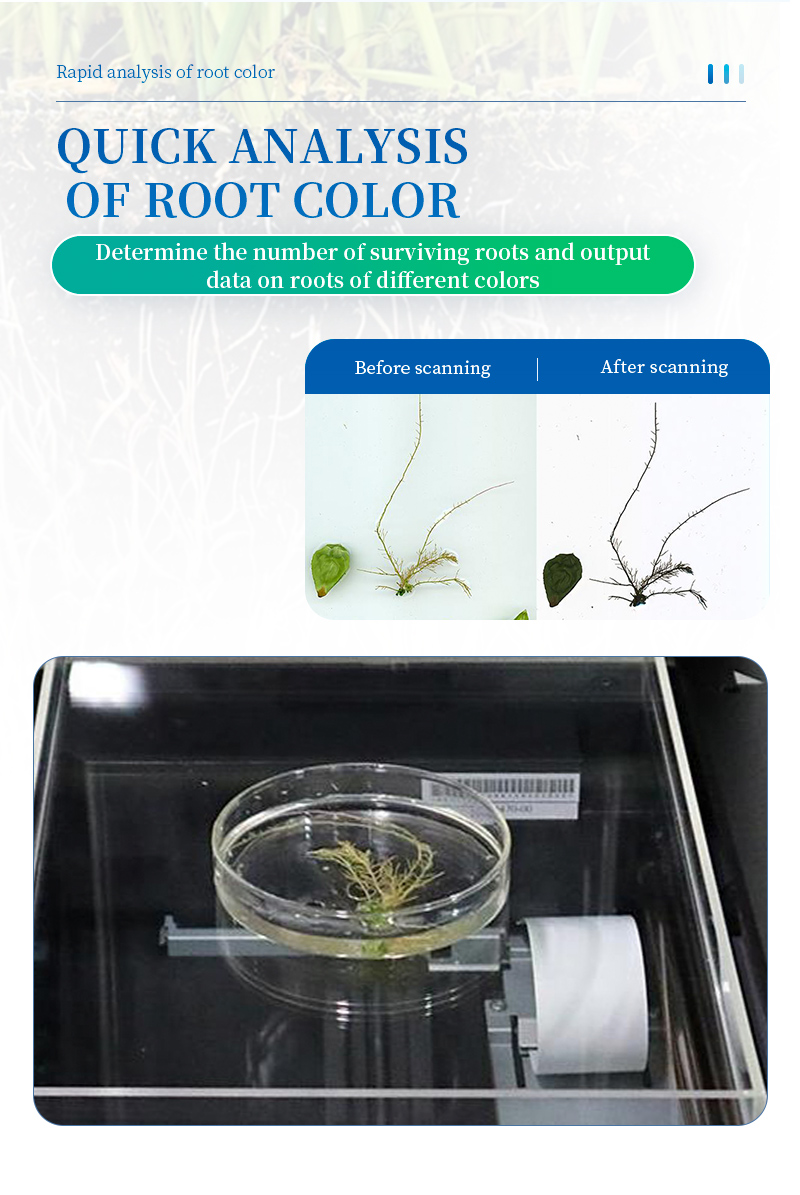

(14) Capable of conducting color analysis of root systems, outputting the diameter, length, projected area, surface area, and volume of roots of different colors.

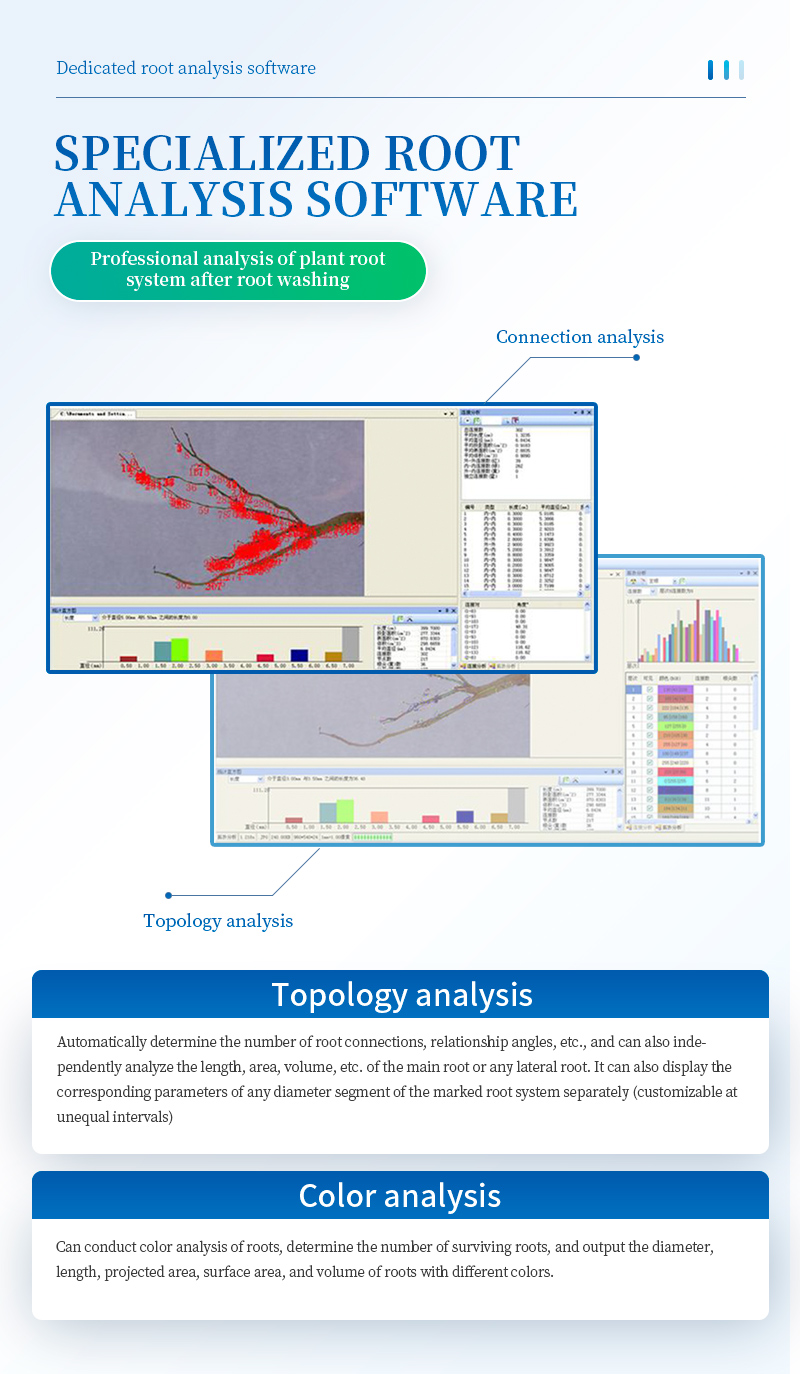

(15) It can perform topological analysis of the root system, automatically determine the number of connections, relationship angles, etc. of the roots, and can also automatically analyze the length, area, volume, etc. of any segment of the root system separately. It can display the corresponding parameters of any diameter segment of the marked root system separately (customizable with unequal spacing).

(16) It can perform root fork pruning, merging, connecting and other corrections, and the correction operation can be rolled back to quickly obtain 100% correct results.

(17) The box dimension method can be used to automatically measure the fractal dimension of root systems. The number of root nodules can be analyzed to objectively determine the contribution of rhizobia.

(18) Large scale fully automatic root analysis, batch saving, can summarize the overall data and save it in a table, or save detailed data for each root system.

(19) Extract analysis characteristics from corner analysis and horizontal angle analysis.

(20) Each analysis image, distribution chart, and result data can be saved and exported to an Excel spreadsheet, and analysis marker charts can be output.

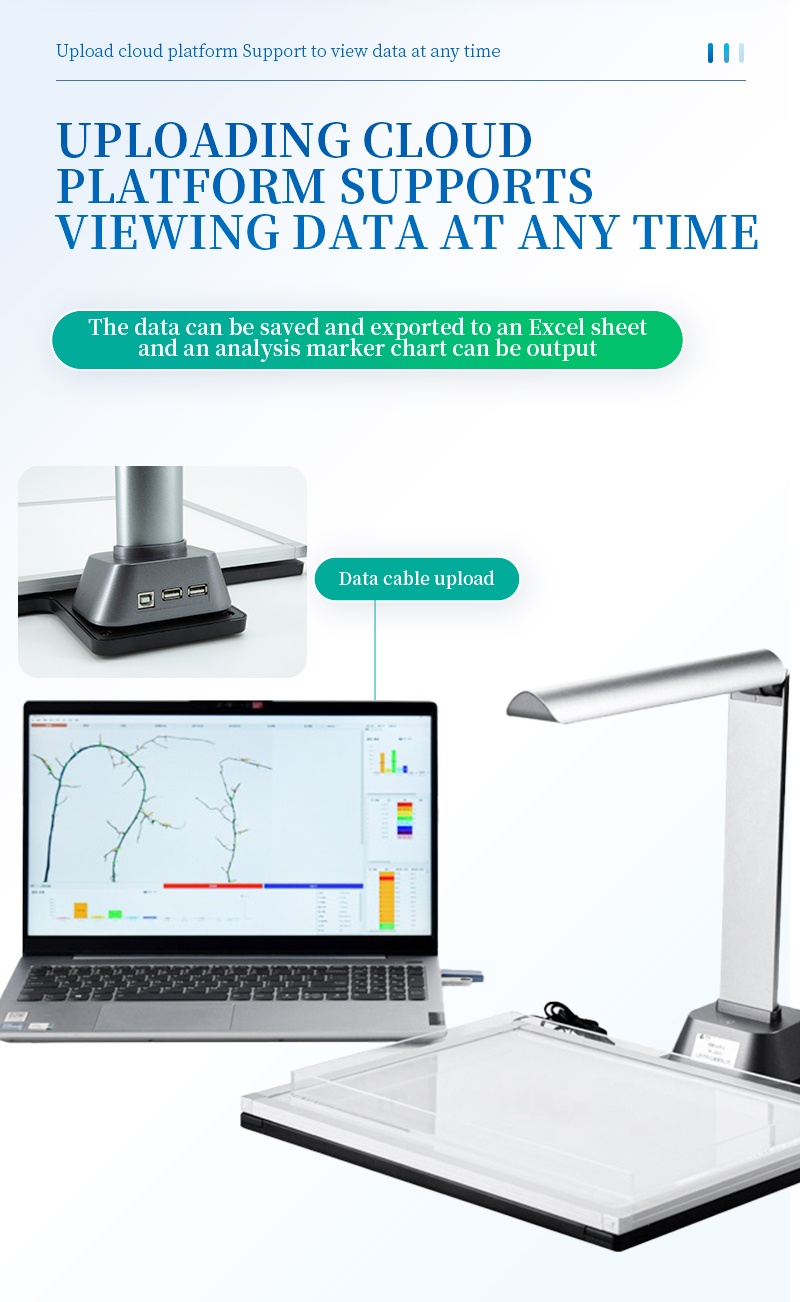

(21) The instrument has cloud platform support, which allows analysis data to be saved to the cloud for viewing anytime and anywhere

(22) Built in bilingual display in Chinese and English, one click switching, seamless integration

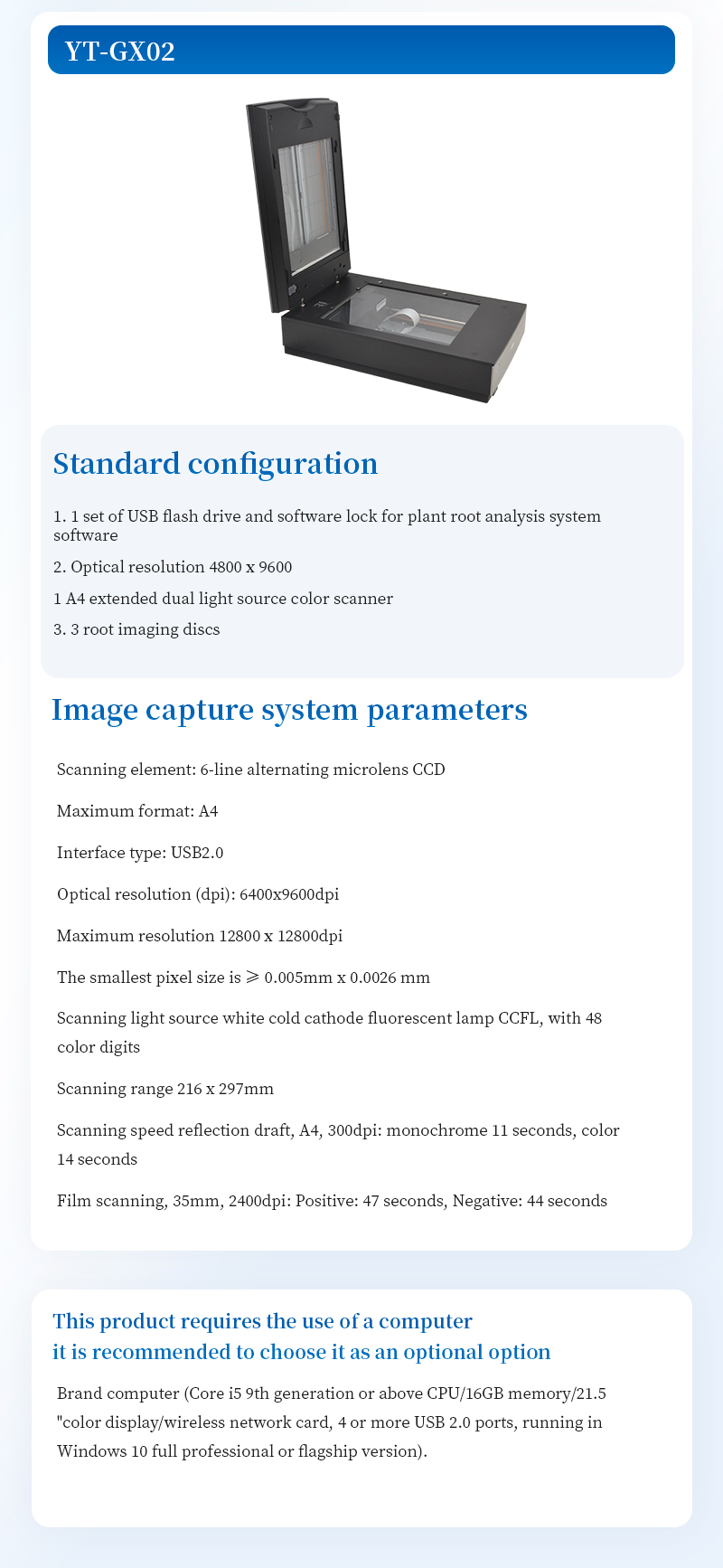

4、 Image capture system parameters

Scanning element: 6-line alternating micro lens CCD

Maximum size: A4

Interface type: USB 2.0

Optical resolution (dpi): 4800x9600dpi

Maximum resolution 12800 × 12800dpi

Minimum pixel size ≥ 0.005mm × 0.0026mm

Scanning light source: white cold cathode fluorescent lamp (CCFL) with 48 color bits

Scanning range 216 × 297mm

Scanning speed reflection draft, A4, 300dpi: monochrome 11 seconds, color 14 seconds

Film scanning, 35mm, 2400dpi: positive film: 47 seconds, negative film: 44 seconds

5、 Other

1. This product requires the use of a computer, and it is recommended to choose a branded computer (Core i5 9th generation or above CPU/16GB memory/21.5 "color display/wireless network card, 4 or more USB 2.0 ports, running on Windows 10 full professional or flagship version).

2. Optional A3 format dual light source color scanner. The scanning area of the reflective manuscript is 305mm × 431.8mm, and the scanning area of the root system is 304.8mm × 406.4mm.
