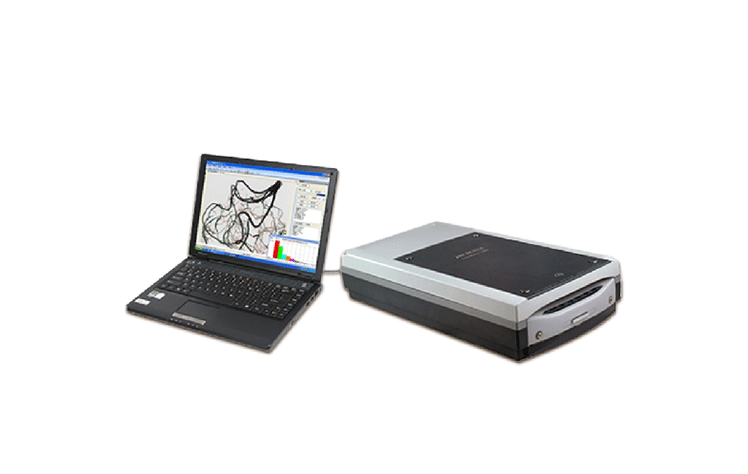

Plant root system tester

Instrument Usage

YT-ZGX is a professional root analysis system used for root washing, which can analyze root length, diameter, area, volume, root tip count, etc. It is powerful and easy to operate. The software can analyze the morphology of plant roots, color, grading and extension analysis, as well as the overall structural distribution of roots, etc. Widely used in the study of root morphology and structure.

Functional characteristics of the root analysis system:

1. Manual assisted correction: The image can be zoomed in or out and observed locally.

2. Statistical effect monitoring: monitoring and correcting the accuracy of plant object analysis.

3. Automatic impurity removal: Automatically remove impurities based on differences in size and other aspects.

4. Auxiliary measurement function: Size calibration: With built-in calibration function, semi-automatic size calibration can be achieved, and the XY direction can be calibrated and corrected separately.

Length measurement: With the function of following a magnifying glass, precise measurement can be achieved by dragging the mouse. Data export: Analysis images, distribution maps, and result data can be saved, and the analysis results can be output to an Excel table. Analysis marker maps can be output.

technical parameter

1: Total root length, average root diameter, total root volume, root tip count, bifurcation count, overlap count, root diameter grade distribution parameters, root tip segment length distribution.

2: Customizable segmented diameters with unequal spacing, automatically measuring the length, projected area, surface area, volume, and distribution parameters of each diameter segment.

3: Able to conduct color analysis of roots, determine the number of surviving roots, and output the diameter, length, projected area, surface area, and volume of roots with different colors.

4: Capable of conducting topology analysis of the root system, automatically determining the number of connections and relationship angles of the roots, as well as independently analyzing the length and number of forks of the main root or any lateral root. It can display the corresponding parameters of any diameter segment of the marked root system separately (the number of stages and the range of stages can be changed arbitrarily, and can be customized at unequal intervals). It can also perform root fork cutting, merging, connection and other corrections, and the correction operation can be rolled back, To quickly obtain 100% correct results.
