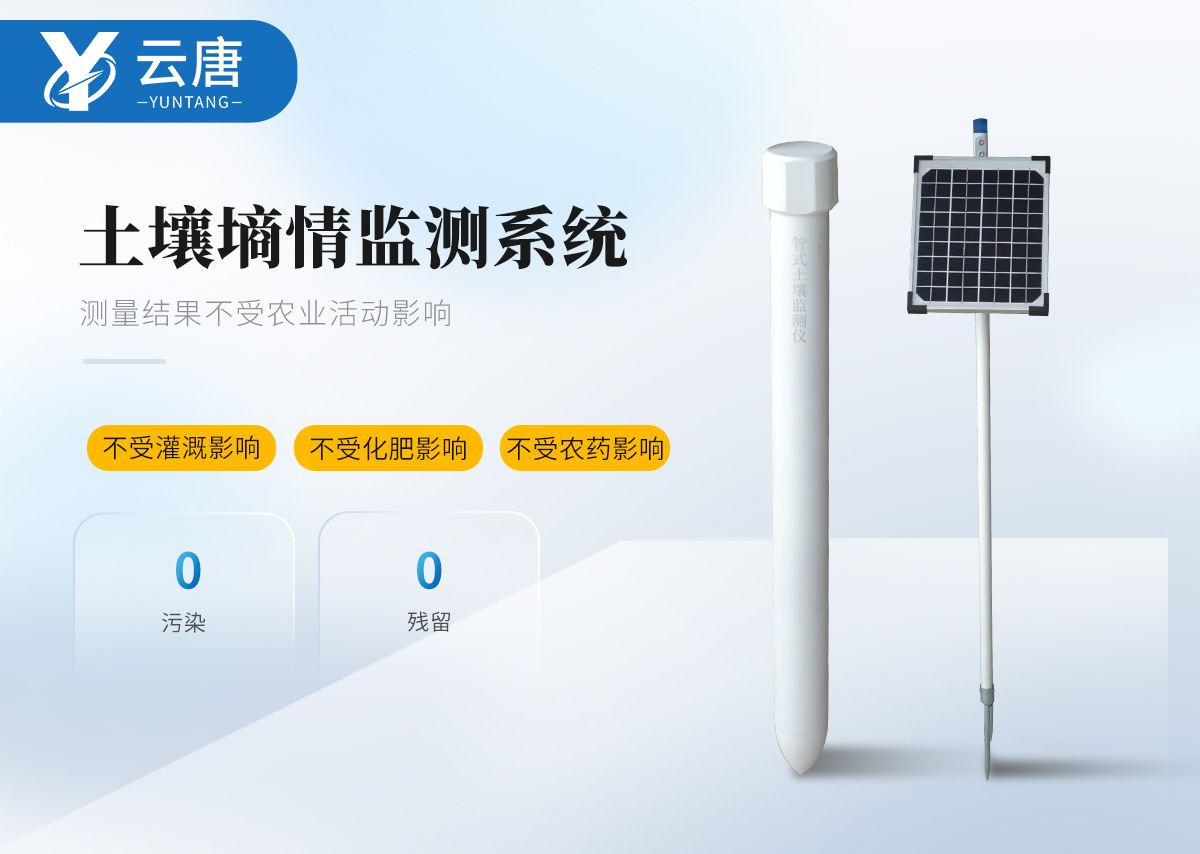

Soil moisture monitoring system (YT-TS200)

 Overview:

The soil moisture and drought information management system aims at drought resistance and disaster reduction, using real-time moisture, agricultural conditions, water storage and diversion situation of water conservancy projects as data sources, advanced soil moisture sensors and other advanced equipment, combined with mathematical models suitable for the region, and relying on the computer network environment, a decision support system integrating moisture information management, query services, and prediction analysis has been established to scientifically formulate drought resistance scheduling plans, To provide decision-making support for the correct command of drought relief and minimize disaster losses.

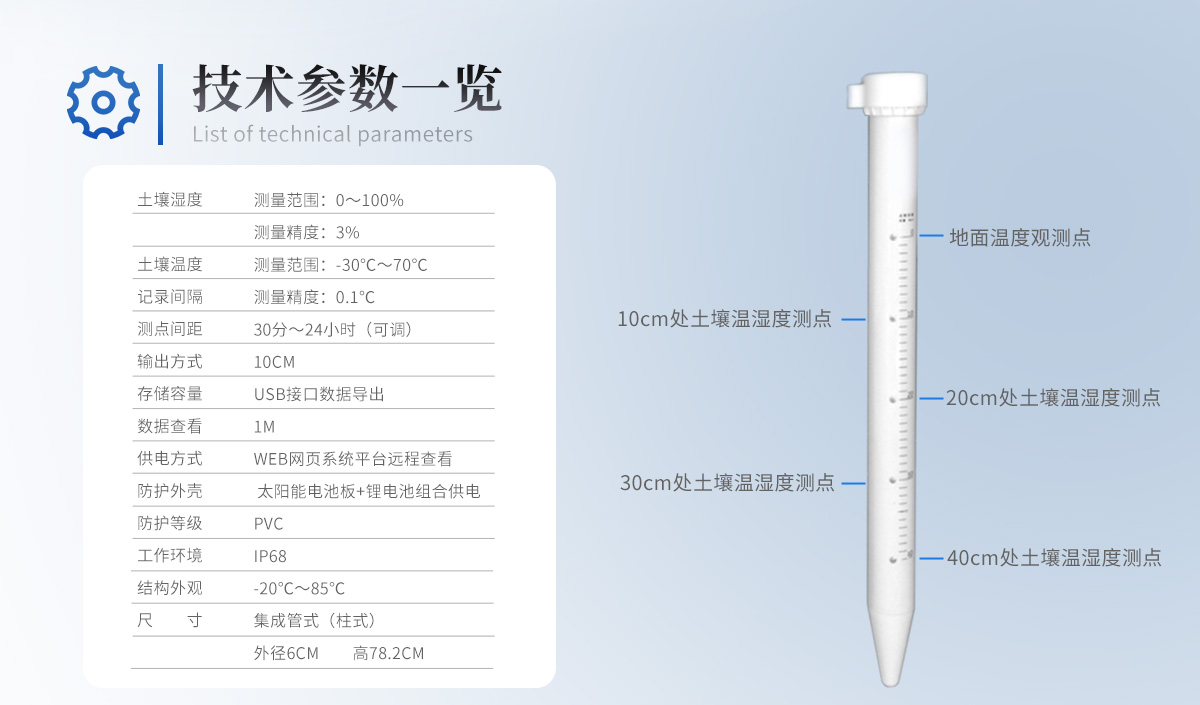

Technical parameters:

Soil moisture measurement range: (optional multiple layers) 0-100% accuracy: ± 3% resolution: 0.1%

Soil temperature measurement range: (optional multi-layer) -40~120 ℃ Accuracy: ± 0.2 ℃ Resolution: 0.01 ℃

Outstanding performance:

The host of the soil moisture information management system adopts an IP65 protection level rainproof design and is equipped with a large-sized LCD display screen, which can display the collected data and curve graphs of various sensors in real time, and can set the collection interval time. The host can record the collected data.

The communication method is flexible and can be equipped with wired or wireless (GSM/GPRS). The recorded data can be downloaded and exported to the computer at any time, stored as an Excel spreadsheet file, and data curves can be generated for further data processing by other analysis software. It can be connected to a printer and related stored data can be printed.

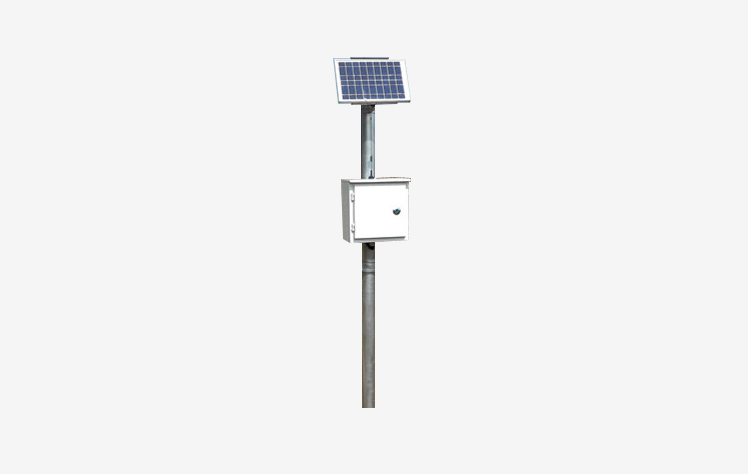

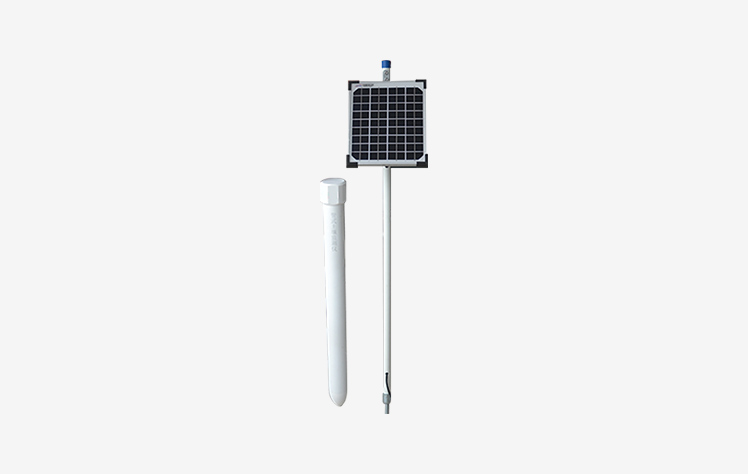

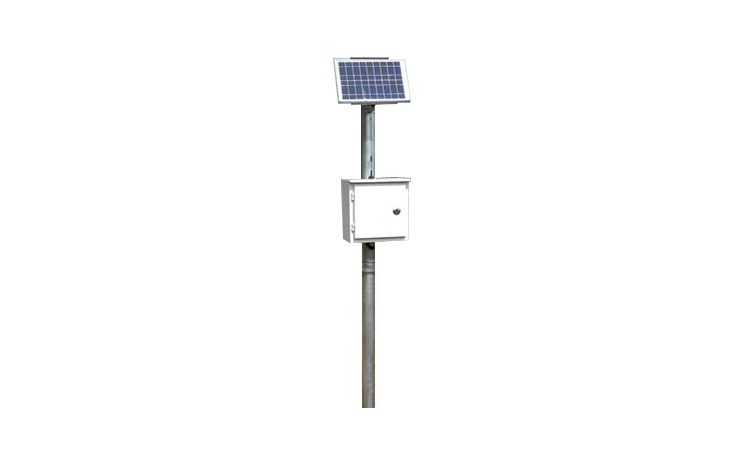

The power supply methods are diverse and flexible, and can be configured with mains or solar panels, batteries, etc. according to customer requirements (suitable for year-round use in areas without electricity) to ensure that the system can work normally in the event of power outages or rainy weather.

Adopting three advanced network communication transmission methods, GPRS, GSM, and 3G, it is very suitable for real-time monitoring and transmission of data between cities in different regions.

A. The GPRS communication method collects data from collection points and uploads it to the network through GPRS. Users can log in and view data on any computer with internet access, which is stable and reliable, solving the problem of frequent communication disconnections in the same industry using China Mobile's wireless IP transmission. The data is stable and reliable, and there is no need to worry about sudden disconnection. Communication costs are charged based on traffic, suitable for application models with large amounts of data.

B. The GSM communication method uses SMS for transparent data transmission. As long as the mobile network signal covers the area, data transmission can be carried out without being limited by geographical environment. The data can be sent to the user's set mobile phone number or designated computer. The communication cost is calculated according to China Mobile's tariff, which is suitable for application modes with small data volume.

C. The 3G communication method utilizes the networks provided by the three major operators to upload data from collection points. Users can also view data through network connections on any computer. The advantages of 3G are fast transmission, stability, and the ability to transmit large amounts of data. It is widely used in video transmission and other fields, but the disadvantage is that the network coverage is small. However, this communication method is the trend of future development.

A single data acquisition system can achieve vertical six point synchronous detection for multiple monitoring points. Each sensor has high accuracy, stable performance, and low power consumption. The data acquisition instrument has a powerful communication network interface, and the system has strong communication capabilities to meet the needs of different customers.

The customized solutions for soil moisture and drought management system are diverse and flexible, with powerful system software functions, data collection intervals (set arbitrarily from 1 minute to 24 hours), and large system storage capacity. Connecting to a computer allows for real-time viewing of historical data, as well as automatic recording and storage based on set collection intervals. The data can be exported as an Excel spreadsheet file, generating data curves, reports, etc. for further analysis and processing. Connecting to a printer allows for printing and storage of data.

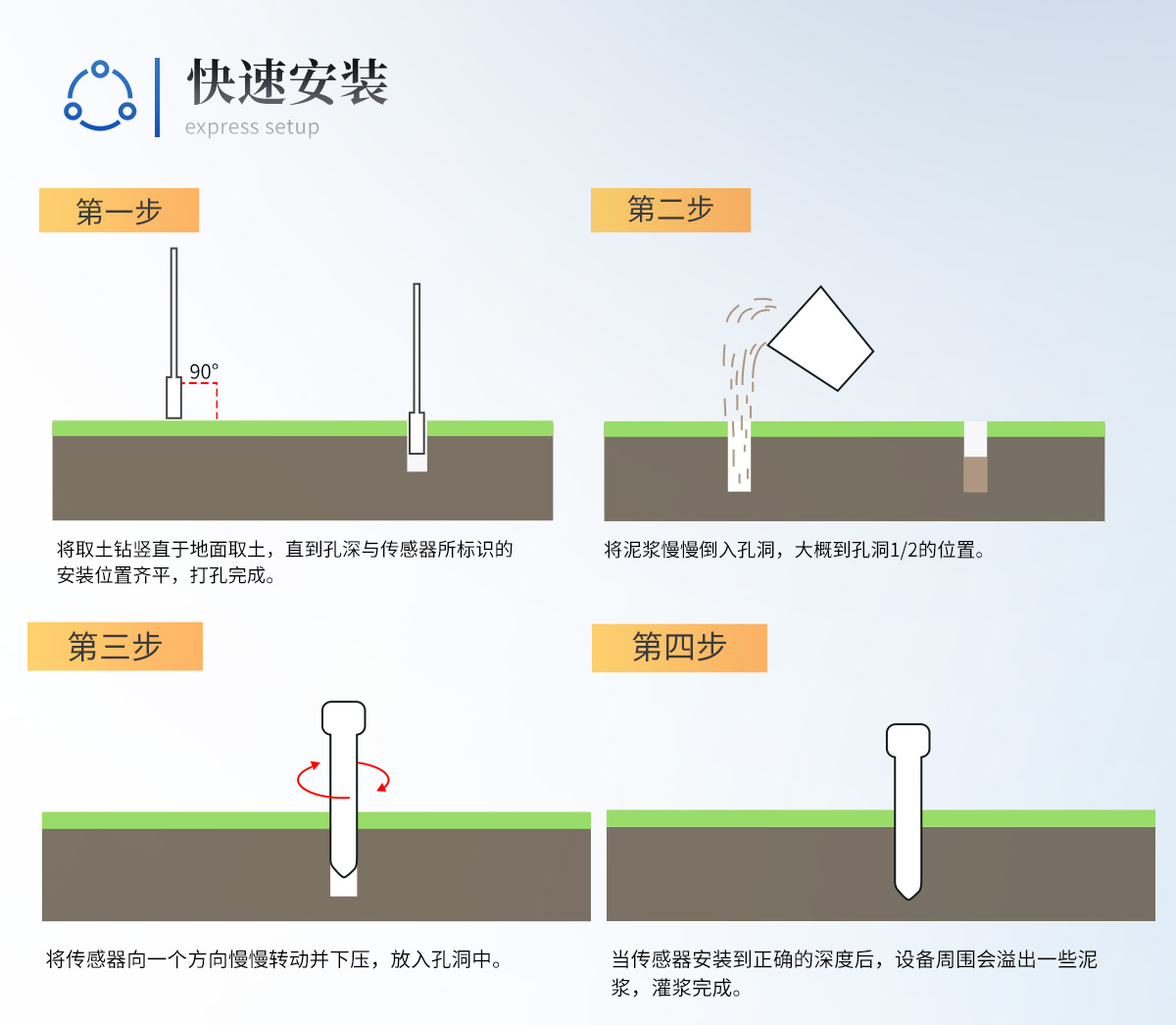

Easy installation and maintenance, stable performance, high reliability, low failure rate, suitable for real-time monitoring of major soil types in various climate zones in China. Multiple power supply options, including mains and solar power, and equipped with a battery as a backup power source, ensure that the system can still function normally in cloudy, rainy weather, mains power failures, and other situations.
