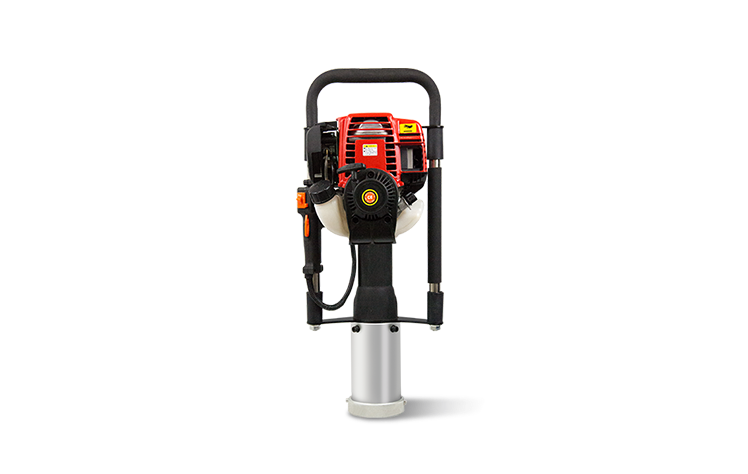

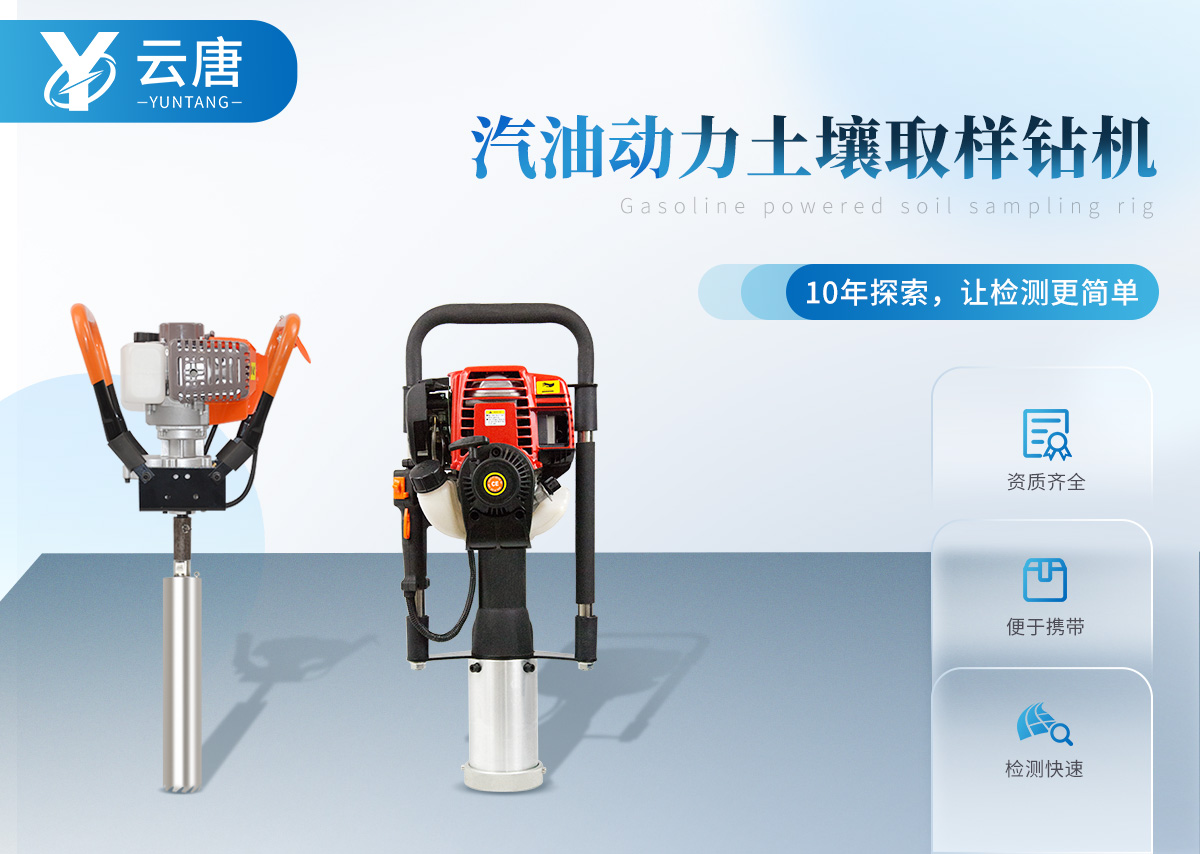

10 meter soil sampling drilling rig

Product Introduction:

The YT-QY800 single person handheld soil sampling drilling rig is a lightweight soil sampling drilling rig designed based on reference to large hydraulic, gasoline, and pneumatic drilling rigs. Even drilling personnel without operational experience can operate with simple training. The sampling process is extremely simple, and 1 to 2 people can complete the operation of the equipment. The entire drilling process does not require the addition of water, ensuring the quality of the samples obtained (without pollution or disturbance).

Compared with conventional large-scale drilling rigs, YT-QY800 soil sampling drilling rigs are more convenient to carry and operate, making it easier for non professionals to complete equipment operations. In some project sites with low depth requirements (within 10 meters), relatively complex terrain, and difficult access for large equipment, using this equipment is the best choice.

Compared with traditional hand drills, the YT-QY800 soil sampling rig drills deeper, has higher sampling efficiency, and obtains undisturbed, basically undisturbed, and compressed (depending on the terrain) soil samples. In projects with sampling depths exceeding half a meter and high requirements for the quality of soil samples (undisturbed, undisturbed, and uncompressed), using this equipment is the best choice.

 Product Introduction Features:

Fast footage, keep the sample in its original state without disturbance!

You can use a built-in PVC sampling tube for sampling or take samples directly!

The ideal depth for conventional soil sampling is 1-5 meters, and for soft soil layers, it can reach up to 10 meters!

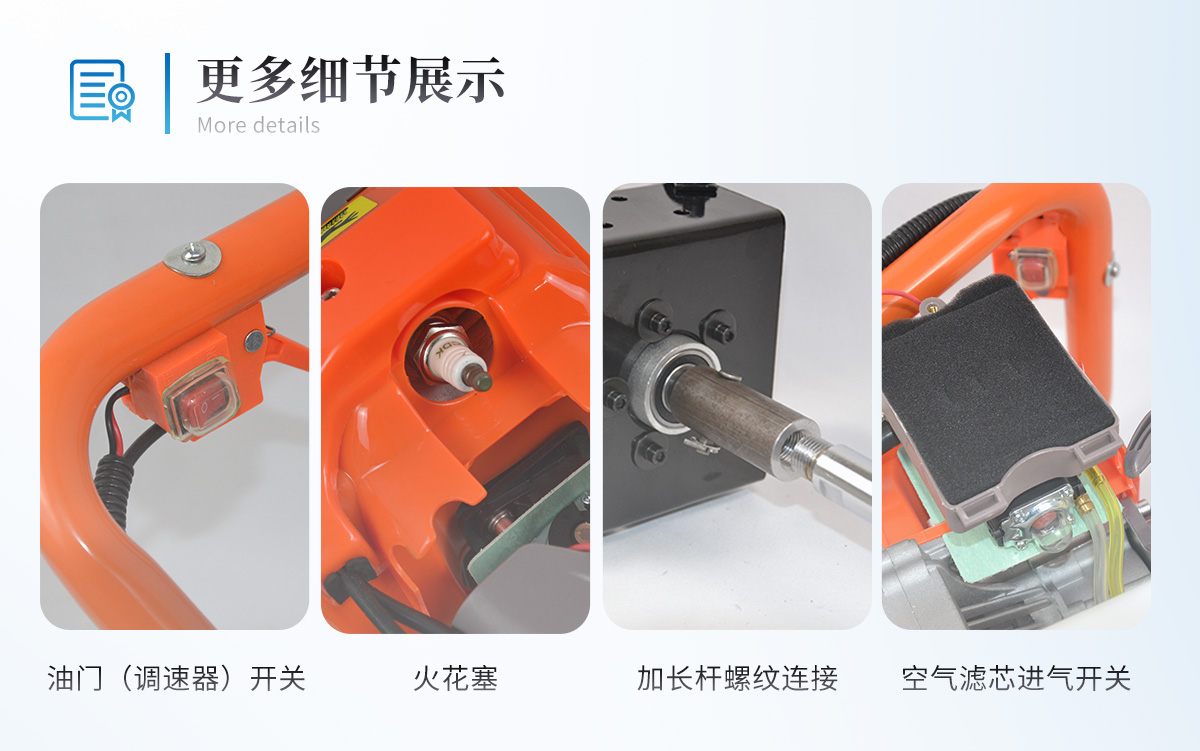

Hand pull start, stop trigger button, spring isolated seismic handle!

The puller adopts a more reasonable ergonomic design, which can be pressed by hand or stepped on by foot!

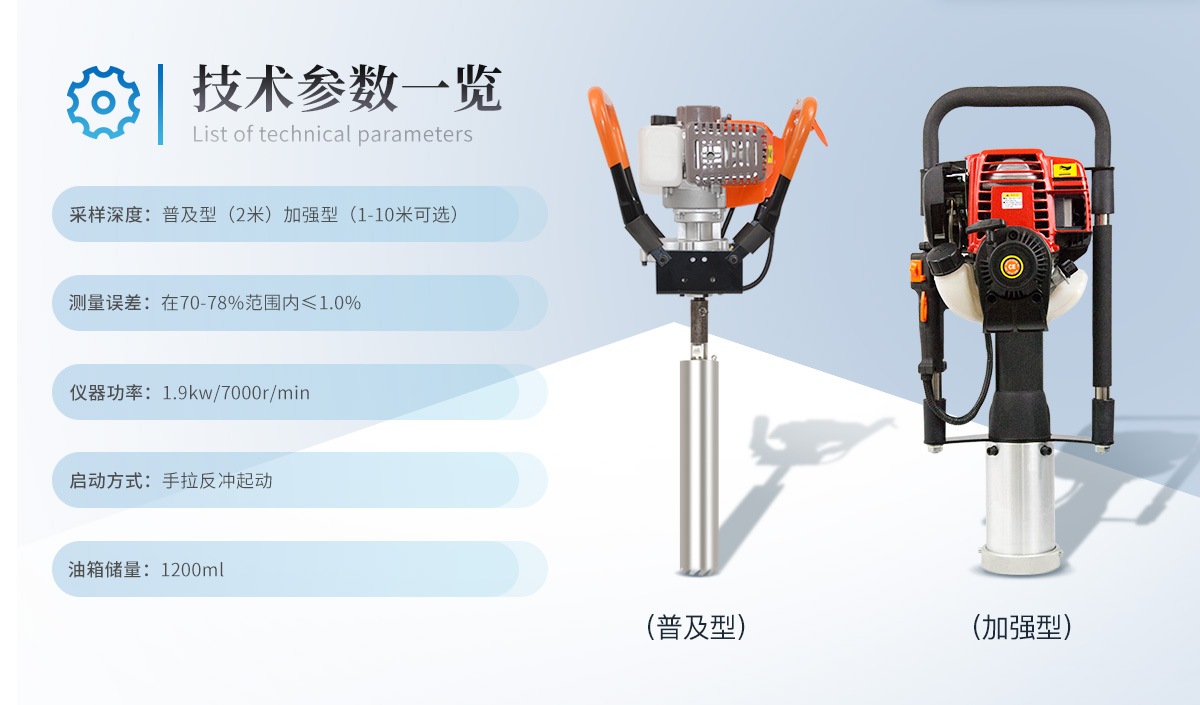

 Product parameters:

1. Sampling depth: 1-10 meters (optional)

2. Vibration frequency: 1300 times/minute

3. Power: 1.6 horsepower (7000rpm)

4. Engine type: single cylinder two-stroke engine

5. Fuel consumption: not more than 0.6L/h

6. Weight: 20.2kg (main engine)

7. Sample tube specifications: inner and outer diameters not less than 35mm/40mm; Length not less than 1.00 meters per piece

8. Sampling depth, can be connected to the drill pipe for one-time sampling, without lifting the drill midway

9. Pulling device: fast lifting, with a speed not less than 3.00 meters/minute

 Standard configuration:

One gasoline powered engine, one engine kit set, standard soil drill bits and hard soil drill bits can be freely selected, with 5 drill rods of no less than 1 meter, 2 plastic sample tubes of no less than 1 meter, 1 scraper, pliers, headphones, 5M tape measure, gloves, cleaning brush each, 1 set of dedicated lifting equipment, and 1 industrial plastic transportation box
