Comprehensive set of soil samplers

Comprehensive set of soil samplers：

YT-QY04 manual soil sampler comprehensive set, including soil sampler, sludge sampler, and standard sampling equipment.

1. Model name

YT-QY04 Soil Sampler Comprehensive Set

2. Origin of soil sampler

Shandong Province

3. Application of soil sampler

Different specialized drill bits can be equipped for soil particles of different diameters to conduct reasonable sampling and classification of soil at different depths and regions.

4. Characteristics of soil sampler (HM-QY04 manual soil sampler comprehensive set, soil sampler, sludge sampler, standard sampling equipment.)

Can collect soil samples of different textures,

Easy to disassemble and compact for outdoor carrying,

Easy to operate.

The standard configuration and technical specifications of soil samplers are shown in the table below

Number, Model, Name, Specification, Quantity

1 YT-TS35 T-shaped handle with a length of 35cm, threaded connection 1

2 YT-Y30 extension rod with a length of 30 cm, graduated, threaded connection 1

3 YT-Y50 extension rod with a length of 50 cm, graduated, threaded connection 1

4 YT-Y100 extension rod length 100cm, with scale, threaded connection 2

5 YT-XS5 heart-shaped sand drill bit with a blade width of 7cm, blade spacing of 5cm, sampling length of 20cm, threaded connection, stainless steel material, special hardening treatment, eliminating rust troubles, and easy maintenance

6 YT-XN6 heart-shaped clay drill bit with a blade width of 3cm, blade spacing of 6cm, sampling length of 20cm, threaded connection, stainless steel material, special hardening treatment, eliminating rust troubles, and easy maintenance

7 YT-DS7 Multi Stone Soil Drill Bit with a sampling diameter of 7cm, threaded connection, manganese steel material, hard and wear-resistant 1

8 YT-NT5 mud soil drill bit made of stainless steel material, sampling diameter 5cm, sampling length 20cm, threaded connection 1

9 YT-GD scraper made of stainless steel material, with a width of 20mm

10 YT-BS wrench 19 × 22mm 2

11 YT-ST gloves made of cowhide, breathable on the back of the hand, 1

12 YT-R3 steel tape measure 3 meters 1

13 YT-MJ towel for wiping drilling tools 1

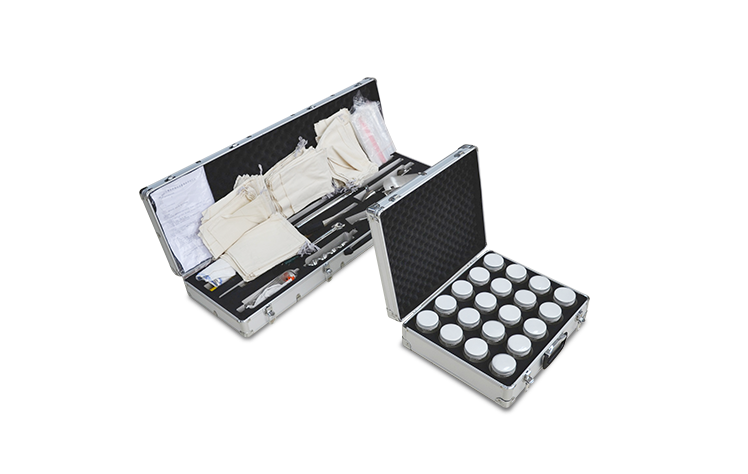

14 YT-LV01 aluminum box is equipped with an EVA shock-absorbing lining, which is used to hold the above drilling tools and is easy to carry outdoors

15 YT-YP soil sample bottle 250ml, soil sample storage bottle for measuring soil organic matter, milky white 1

Specifications:

Standard configuration sampling depth of 2 meters, detailed parameters can be found below

Features:

Can be sampled from different soil textures, easy to disassemble, small in size, and portable outdoors

Usage:

During soil sampling, different soil textures may be encountered, such as clay, loam, sand, and peat. In order to achieve better sampling results, suitable drill bits should be selected based on different soil textures. We now provide the following four types of drill bits, which can collect samples from the surface layer of soil with different textures of 0-20cm, and can also be used for deep sampling.

Standard configuration:

1 heart-shaped clay drill, 1 heart-shaped loam drill, 1 heart-shaped sand drill, 1 cylindrical peat drill, 2 100cm extension rods, 1 50cm extension rod, T-shaped
