weather station

 Product Introduction

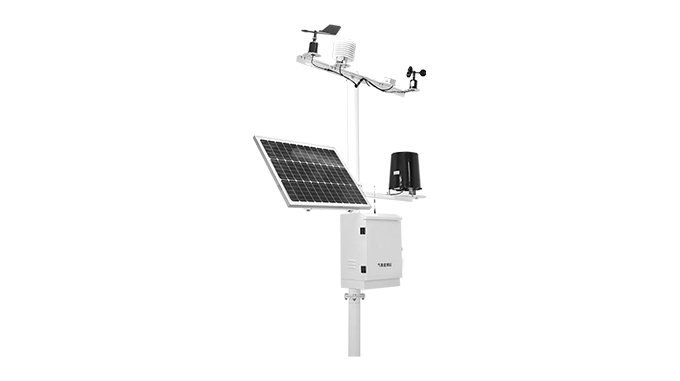

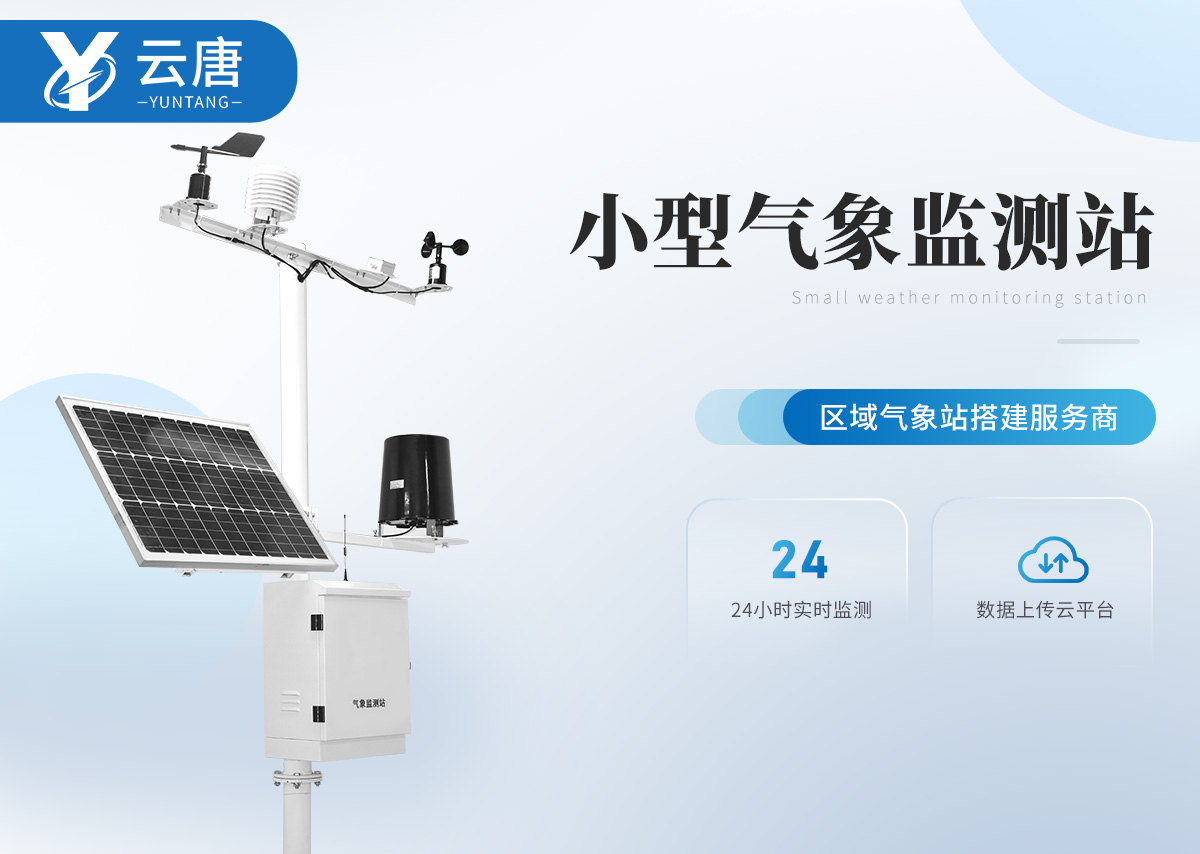

The YT-YQ10 ultrasonic weather station is a highly integrated, low-power, quick to install, and easy to use high-precision automatic meteorological observation equipment for field monitoring.

This device is debugging free and can be quickly deployed. It is widely used in fields such as meteorology, agriculture, forestry, environmental protection, ocean, airports, ports, scientific research, and campus education.

Compared with traditional ultrasonic weather stations, our products overcome the need for high-precision timers and avoid measurement inaccuracies caused by sensor startup delay, demodulation circuit delay, and temperature changes.

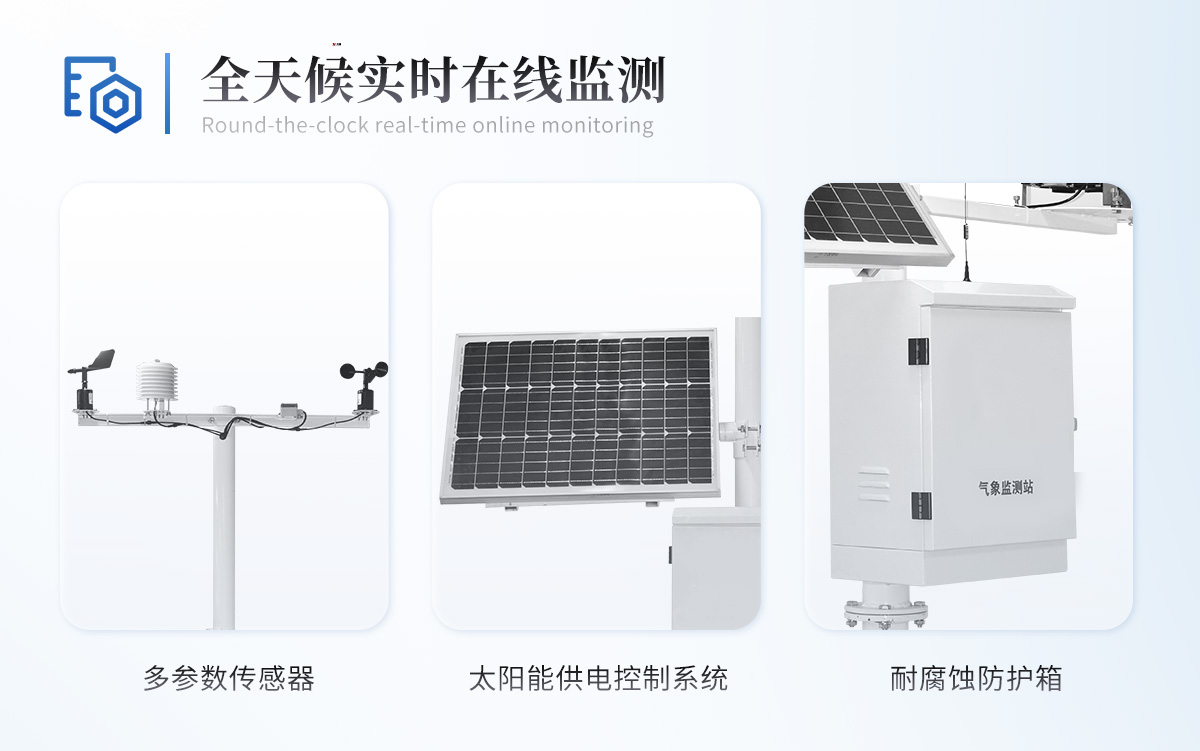

This device innovatively adopts a ten element integrated sensor, which can observe meteorological factors such as wind speed, wind direction, air temperature, humidity, atmospheric pressure, light, optical rainfall, PM2.5, PM10, noise in real time. It can achieve 24-hour continuous online monitoring of outdoor meteorological parameters and output the ten parameters to users at once through a digital communication interface.

 Product features

1. Hidden ultrasonic probe on the top cover, avoiding interference from rain and snow accumulation, and avoiding natural wind obstruction (utility model patent, patent number ZL 2020 2 3215713. X) ☆

2. The principle is to emit continuous frequency conversion ultrasonic signals and detect wind speed and direction by measuring relative phase (invention patent, patent number ZL 2021 1 0237536.5) ☆

3. Temperature, humidity, wind speed, wind direction, atmospheric pressure, optical rainfall, light, PM2.5, PM10, and noise ten element integrated sensors (utility model patent, patent number ZL 2020 2 3215649.5) ☆

4. Standard GPRS; Multiple transmission methods including RJ45, Ethernet, 4-20mA, Lora transparent transmission, 4G transparent transmission, Bluetooth, 485 to USB, etc. are optional

5. Two meter carbon steel bracket, with no need for flange at the top to directly connect the sensor (utility model patent, patent number ZL 2020 2 3211795.0)

6. The sensor housing is made of imported ASA material, which is more effective in resisting salt spray and other environments, with a protection level of IP65 or above

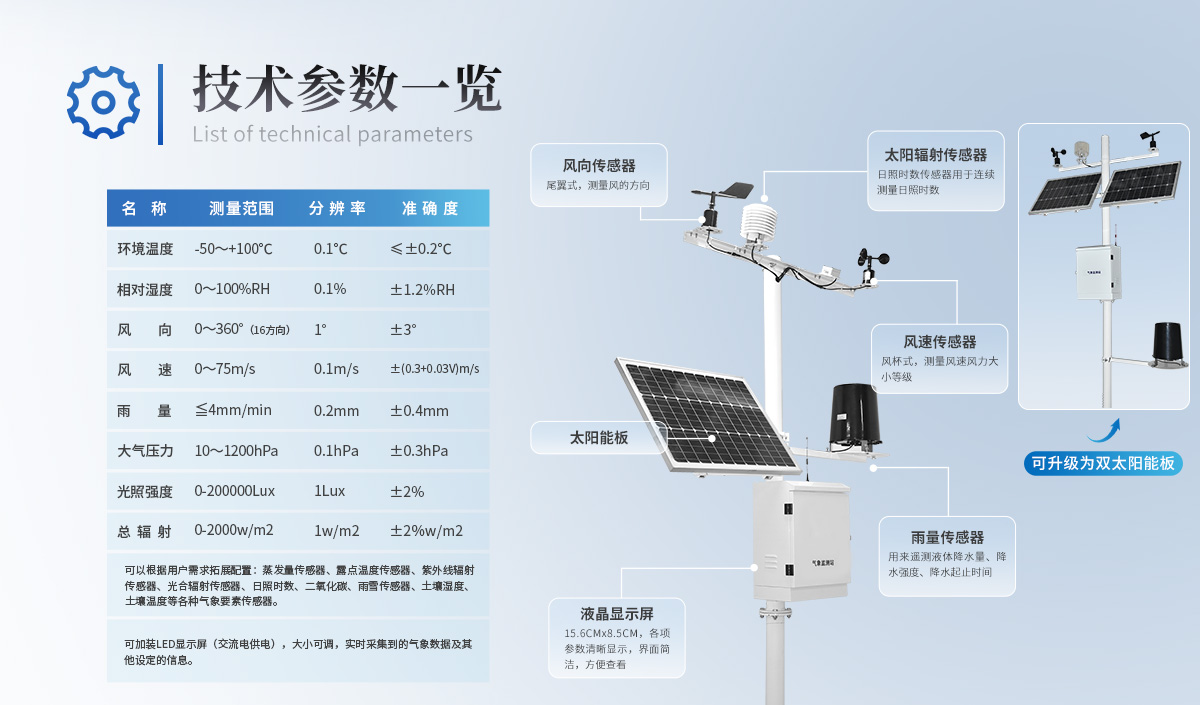

 Technical parameters

1. Wind speed: Measurement principle: Ultrasonic, 0-60m/s (± 0.1m/s) resolution: 0.01m/s; (Invention patent, patent number ZL 2021 1 0237536.5)

2. Wind direction: Measurement principle: Ultrasonic, 0-360 ° (± 2 °); Resolution: 1 °; (Invention patent, patent number ZL 2021 1 0237536.5)

3. Air temperature: Measurement principle: Diode junction voltage method, -40-60 ℃ (± 0.3 ℃), resolution 0.01 ℃; (Beijing Meteorological Bureau Calibration Certificate)

4. Air humidity: measurement principle capacitive, 0-100% RH (± 3% RH), resolution: 0.01% RH; (Beijing Meteorological Bureau Calibration Certificate)

5. Atmospheric pressure: Measurement principle: Pressure resistance type, 300-1100hpa (± 0.25%), resolution of 0.1hpa; (Beijing Meteorological Bureau

6. PM2.5: Measurement principle light scattering, 0-1000ug/m ³ (± 10%), resolution of 1ug/m ³；

7. PM10: Measurement principle light scattering, 0-1000ug/m ³ (± 10%), resolution of 1ug/m ³；

8. Noise: Measurement principle capacitive, 30-120dB (± 1.5dB), resolution 0.1dB;

9. Lighting: Measurement principle: photoelectric effect, 0-20W LUX (＜ ± 3%), resolution of 1lux;

10. Optical rainfall: measurement principle: photoelectric type, 0-4mm/min (≤ ± 4%), resolution of 0.01mm;

11. Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V ± 0.5V peak current 1A

12. Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, equipment configuration interface: GX-12-4P plug, input voltage 5V

13. Solar powered, equipped with lead-acid batteries, optional with 30W 20AH/50W 40AH/100W 100AH. Charging controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%

14. Data upload interval: adjustable from 1 minute to 1000 minutes

15. Android 7-inch touch screen, screen size: 1024 * 600 RGB LCD

16. The entire machine has obtained a calibration certificate from the National Meteorological Measurement Station

17. The entire machine has obtained a utility model patent, patent number ZL 2020 2 3208599.8

18. Production enterprises have ISO quality management system, environmental management system, and occupational health management system certifications

19. Production enterprises have computer software registration certificates

20. The production enterprise is a 3A credit enterprise

 Introduction to upper computer software

1. PC standalone data receiving, storage, viewing, and analysis software

2. Support serial port data reception, processing, and display

3. Supports communication methods such as JSON strings and modbus485

4. The storage time can be set by oneself, and the collection time can be set by oneself in modbus485 collection mode

5. Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc

6. Support data post-processing function

7. Support external running of JavaScript scripts

 Introduction to Android APP

1. Android standalone data receiving, storage, viewing, and analysis software

2. Supports Bluetooth data reception

3. After the phone goes into sleep, the software receives and processes it in the background

4. JSON automatic data addition device, Modbus device supports scanning code to add devices

5. Support viewing, analyzing, and exporting historical data into tables, as well as displaying curves and viewing odd number sites

6. Support data post-processing function

7. Support external running of JavaScript scripts

 Cloud Platform Introduction

1.CS architecture software platform, supporting direct observation on mobile phones and PC browsers without the need for additional software installation

2. Support multiple account and device logins

3. Support real-time data display and historical data display dashboard

4. Cloud servers, cloud data storage, stable and reliable, easy to scale, load balancing

5. Support SMS alarm and threshold setting

6. Support map display and viewing device information.

7. Support data curve analysis

8. Support data export in table format

9. Supports data forwarding, HJ-212 protocol, TCP forwarding, HTTP protocol, etc

10. Support data post-processing function

11. Support external running of JavaScript scripts
