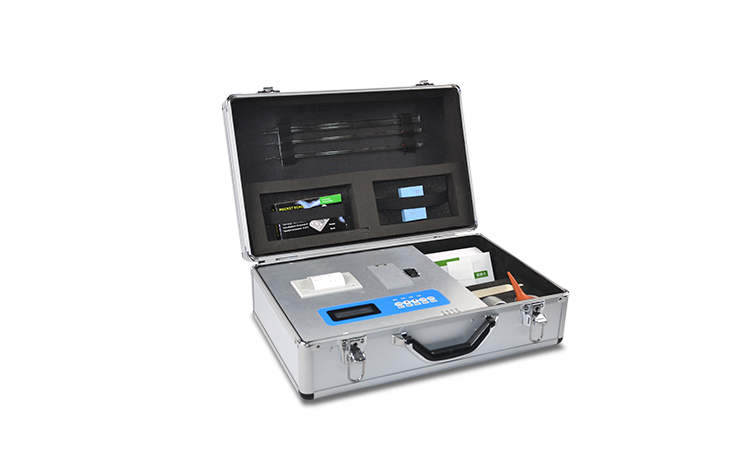

Fertilizer nutrient detector (YT-HB)

Features:

★ Exclusive national patent design for "Integrated Aluminum Alloy Case/Pharmacy", easy to carry, sturdy and durable, with matching testing methods and finished pharmaceuticals.

★ Micro computer control, digital circuit, programmatic design, LCD display, dual use of AC and DC, test data can be stored and queried, and can be tested in the field, minimizing operator errors and labor intensity.

★ Resolution: 0.001, touch button, built-in new generation thermal printer, can print test results.

The compound fertilizer nutrient content detector can detect the available nitrogen, available phosphorus, available potassium, total nitrogen, total phosphorus, total potassium, organic matter, pH, calcium, magnesium, sulfur, iron, manganese, boron, zinc, copper, chlorine, silicon, molybdenum and other trace elements in fertilizers, organic fertilizers (including foliar fertilizers, water-soluble fertilizers, spray fertilizers), biological fertilizers, etc., as well as the content of various heavy metals such as lead, chromium, cadmium, mercury, arsenic, nickel, aluminum, fluorine, titanium, selenium, etc.

★ High brightness LED light source is used, with filtering processing to ensure stable wavelength of the light source. Silicon semiconductor is used as the signal receiving system, with a lifespan of up to 100000 hours. Stable light source, good reproducibility, and high accuracy.

The color comparison groove adopts a single channel design, with no mechanical displacement or wear. The optical path testing positioning is accurate, ensuring the accuracy of the measurement results.

 Multi functional and complete testing items:

Fertilizer nutrients: ● Nitrogen, phosphorus, and potassium in elemental fertilizers; Ammonium nitrogen, nitrate nitrogen, phosphorus, potassium, and biuret in Hefei and urea;

Organic fertilizer nutrients: ● Organic fertilizers include available nitrogen, available phosphorus, available potassium, total nitrogen, total phosphorus, total potassium, organic matter, various humic acids, trace elements (calcium, magnesium, sulfur, iron, manganese, boron, zinc, copper, chlorine, silicon, molybdenum), and various heavy metals (lead, chromium, cadmium, mercury, arsenic, nickel, aluminum, fluorine, titanium, selenium).

 Instrument technical specifications:

1. Power supply: AC 220 ± 22V DC 12V+5V (can be used as an onboard power supply or choose the instrument's built-in lithium battery)

2. Power: ≤ 5W

3. Range and resolution: 0.001-9999

4. Repeatability error: ≤ 0.3% (0.003, potassium dichromate solution)

5. Instrument stability: Within three minutes, the drift is less than 0.2% (0.002, transmittance measurement). After preheating the instrument for 5 minutes, it shows no digital drift within two minutes (transmittance measurement), and the digital drift does not exceed 0.3% within five minutes (transmittance measurement); Digital drift within 20 minutes shall not exceed 0.5% (transmittance measurement) and 0.001 (absorbance measurement); Digital drift within thirty minutes shall not exceed 0.7% (transmittance measurement) and 0.002 (absorbance measurement).

6. Linear error: ≤ 1% (0.01, copper sulfate detection)

7. Sensitivity: Red light ≥ 4.5 × 10-5 Blue light ≥ 3.17 × 10-3 Green light ≥ 2.35 × 10-3 Orange light ≥ 2.13 × 10-3

8. Wavelength range: Red light: 680 ± 2nm; Blue light: 420 ± 2nm; Green light: 510 ± 2nm; Orange light: 590 ± 4nm

9. Simultaneous, rapid, and accurate detection of nutrients such as nitrogen (N), phosphorus (P), potassium (K), and organic matter in fertilizers

10. Data printing: Built in new one click thermal printer (the first in China)

Test speed:

Test a compound fertilizer sample (N, P, K) for ≤ 50 minutes; Add 20 minutes for each additional fertilizer sample.

Test an organic fertilizer sample (N, P, K, organic matter) for ≤ 1.5 hours; Add 30 minutes for each additional sample.

Test error:

The individual error of fertilizer is ≤ 1%, and the total error of nitrogen, phosphorus, and potassium is ≤ 2%.

Product instrument features:

The nutrient content tester for compound fertilizers is fully functional: the testing items are the most comprehensive both domestically and internationally (all types of pesticides can be purchased).

Complete supporting facilities: This instrument integrates medicine, equipment, and instruments, making it easy to carry and equivalent to a small laboratory. Suitable for agricultural service departments, agricultural material distributors, and fertilizer manufacturers to test soil fertilization and distinguish the authenticity of fertilizers.

Easy to operate and fast, the finished drug is ready to use upon opening without the need for configuration.

After sales service:

The entire instrument is guaranteed for one year, with lifetime free maintenance service, free shipping of instruments, and free training.

Lifetime free agricultural related technical support such as soil and fertilizer!
