Fertilizer nutrient detector (YT-HA)

Features:

★ The design of the national "Integrated Aluminum Alloy Case/Pharmacy" is easy to carry, sturdy and durable, and comes with finished pharmaceuticals.

★ Micro computer control, digital circuit, programmatic design, LCD display, dual use of AC and DC, capable of field flow testing, minimizing operator errors and labor intensity.

★ Resolution: 0.001, touch button, built-in new thermal printer, can print test results.

The fertilizer nutrient dedicated rapid detection instrument can detect the content of available nitrogen, available phosphorus, available potassium, total nitrogen, total phosphorus, total potassium, and organic matter in fertilizers and organic fertilizers.

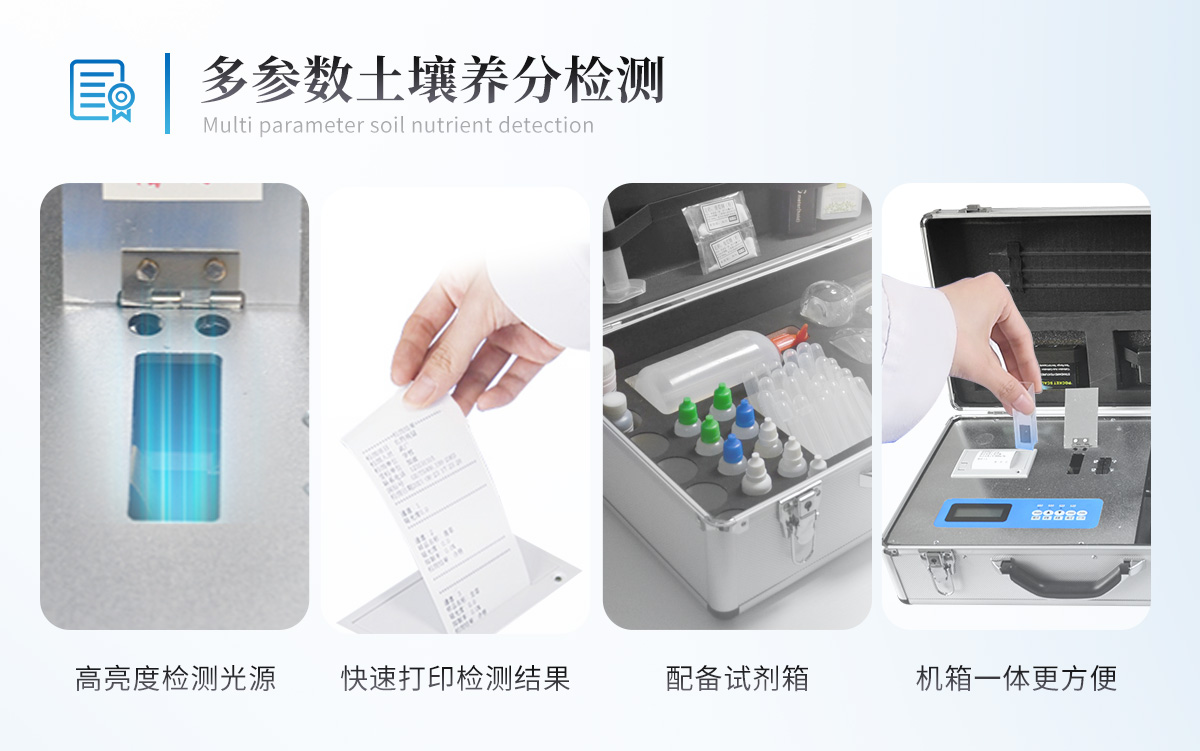

★ Using high brightness LED lights as the light source and silicon semiconductors as the signal receiving system, the lifespan can reach up to 100000 hours. The light source is stable and consistent.

The color comparison groove adopts a single channel and dual optical path design, without mechanical displacement and wear. The optical path testing positioning is accurate, ensuring the accuracy of the measurement results.

★ Adopting independently invented analytical methods to ensure that the detection results absolutely meet the requirements of national standards.

The fertilizer printing result is a percentage content, with a testing error of less than 1%.

Test items:

Fertilizer nutrients: ● Nitrogen, phosphorus, and potassium in elemental fertilizers; Ammonium nitrogen, phosphorus, and potassium in Hefei and urea; Organic fertilizers include available nitrogen, available phosphorus, available potassium, total nitrogen, total phosphorus, total potassium, pH, and organic matter.

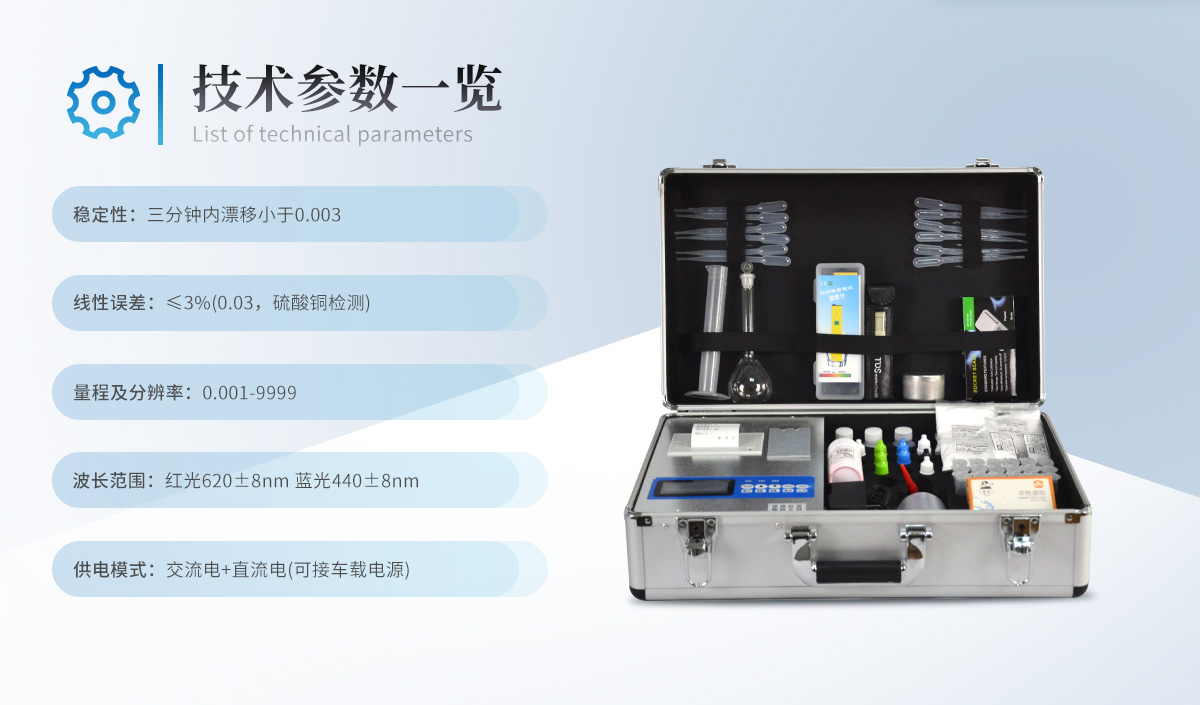

 Technical indicators:

1. Power supply: AC power: 180V~240V, 50Hz; DC power: 12V+5V (can be connected to onboard power supply)

2. Range and resolution: 0.001-9999

3. Stability: Drift less than 0.003 within three minutes

4. Linear error: ≤ 2% (0.002, copper sulfate detection)

5. Repeatability error: ≤ 0.5% (0.005, potassium dichromate solution)

6. Sensitivity: Red light ≥ 4.5 × 10-5 Blue light ≥ 3.17 × 10-3

7. Wavelength range: Red light 620 ± 8nm Blue light 440 ± 8nm

8. Simultaneous, rapid, and accurate detection of nutrients such as nitrogen (N), phosphorus (P), and potassium (K) in fertilizers

9. Testing speed: Test a fertilizer sample (N, P, K) for ≤ 1 hour (including pre-treatment time)

10. Can simultaneously detect 8 soil samples for ≤ 3 hours (including pre-treatment time)

11. Data printing: Built in new one click thermal printer

Test speed:

Test a fertilizer sample (N, P, K) for ≤ 1 hour; Simultaneously test three fertilizers (N, P, K) for ≤ 1.5 hours.

Testing error：

The individual error of fertilizer is ≤ 1.5%, and the total error of nitrogen, phosphorus, and potassium is ≤ 3%.

 Product instrument features:

The fertilizer nutrient dedicated rapid detection instrument is fully equipped: this instrument integrates medicine, equipment, and instrument, making it easy to carry and equivalent to a small laboratory. Suitable for agricultural service departments, agricultural material distributors, and fertilizer manufacturers to test soil fertilization and distinguish the authenticity of fertilizers.

Easy to operate and fast, the finished drug is ready to use upon opening without the need for configuration.

Performance reliability: The working stability is 6 times better than the national standard JJG179-90 index, and the repeatability reaches the level of the grating spectrophotometer index.

After sales service:

The entire instrument is guaranteed for five years, with lifetime free maintenance services, free shipping of instruments, free training, and free provision of testing reagents.

Lifetime free agricultural related technical support such as soil and fertilizer!
