Soil redox potential tester

 Instrument Usage：

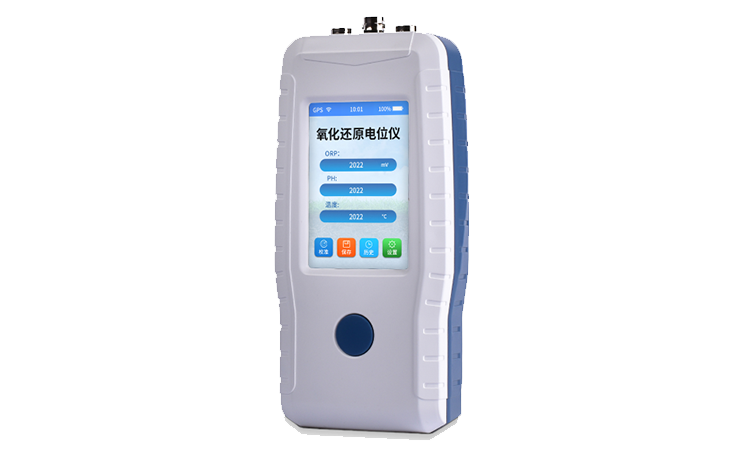

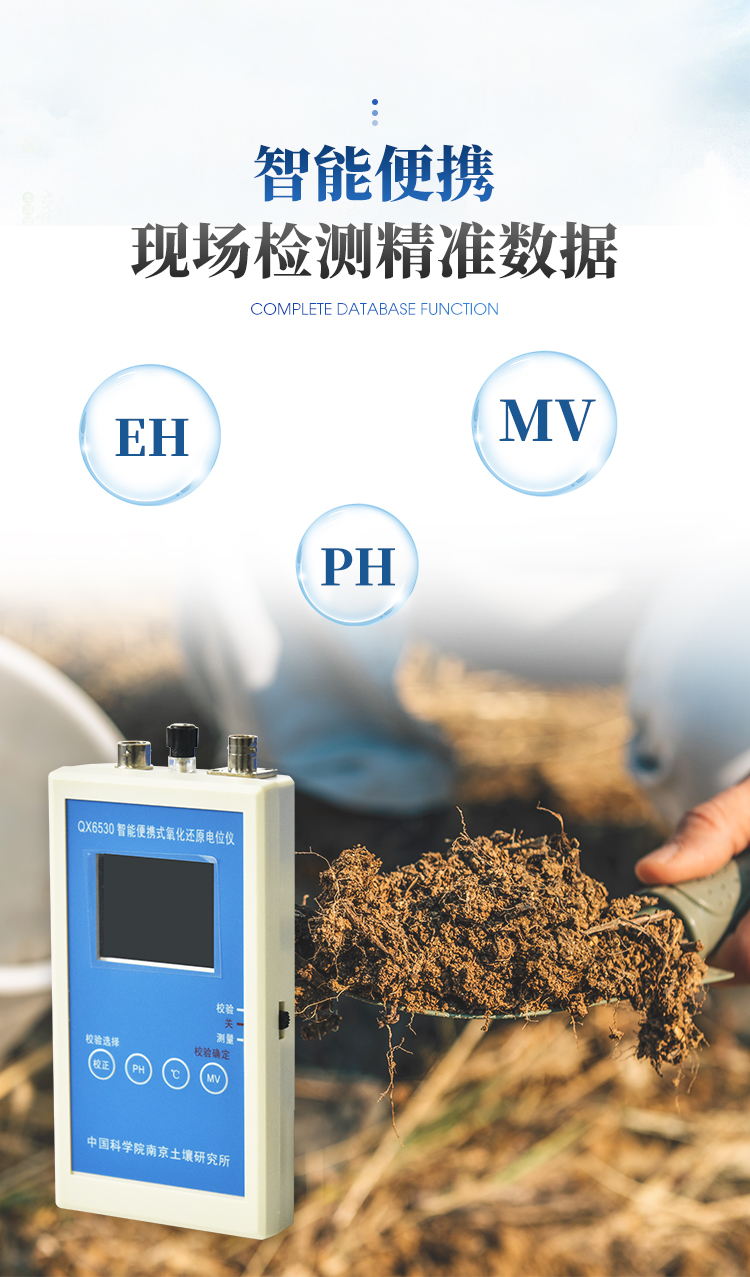

The YT-QX6530 intelligent portable oxidation-reduction potential tester is a portable instrument suitable for measuring soil and water (medium) Eh, mV, and pH, which can measure oxidation-reduction potential (Eh), mV, pH, and temperature. Due to the use of a microcomputer processor, this instrument has the advantages of simple operation, high measurement accuracy, and good reliability. It can be widely used in environmental protection for the detection of soil, sewage, and wastewater, aquaculture for water quality monitoring, and industrial circulating water for water quality monitoring and detection.

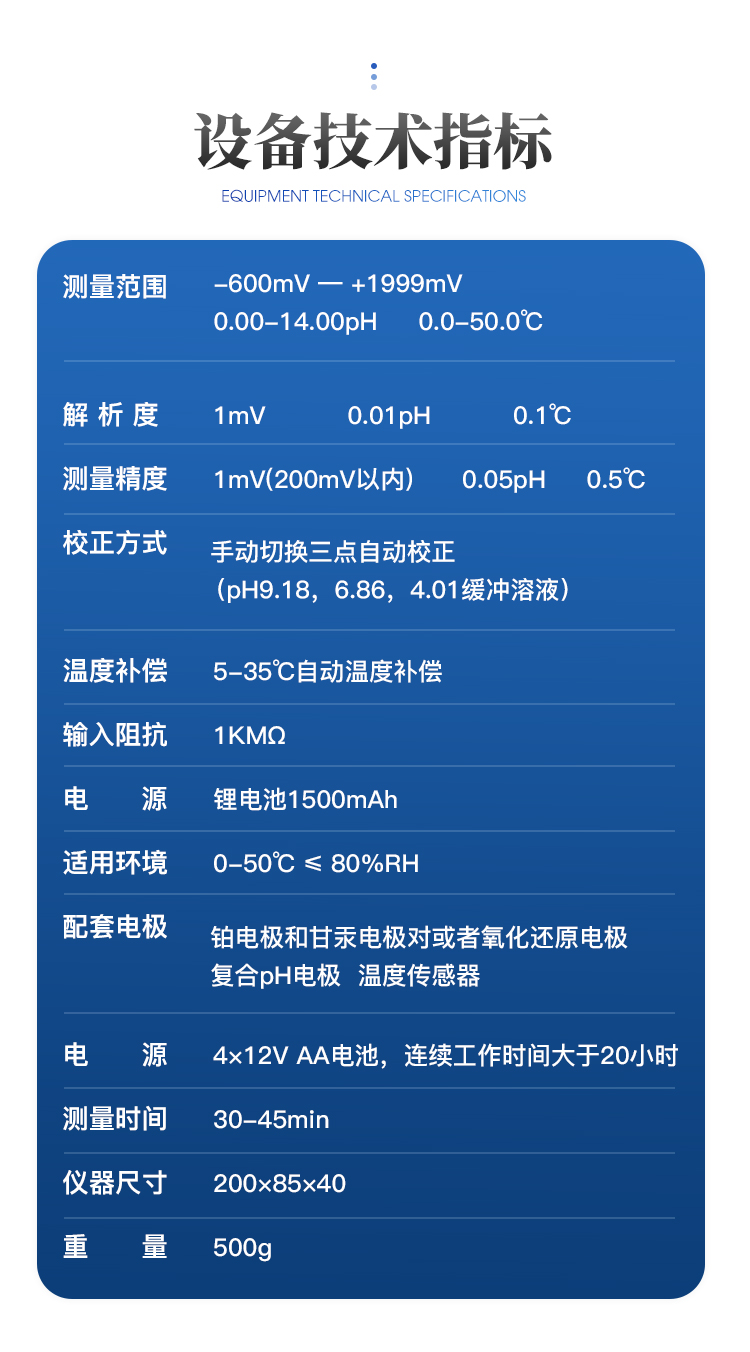

 Technical indicators：

Measurement range: -600mV -+1999mV 0.00-14.00pH 0.0-50.0 ℃

Resolution: 1mV 0.01pH 0.1 ℃

Measurement accuracy: 1mV (within 200mV) 0.05pH 0.5 ℃

Calibration method: Manually switch to three-point automatic calibration (pH 9.18, 6.86, 4.01 buffer solution)

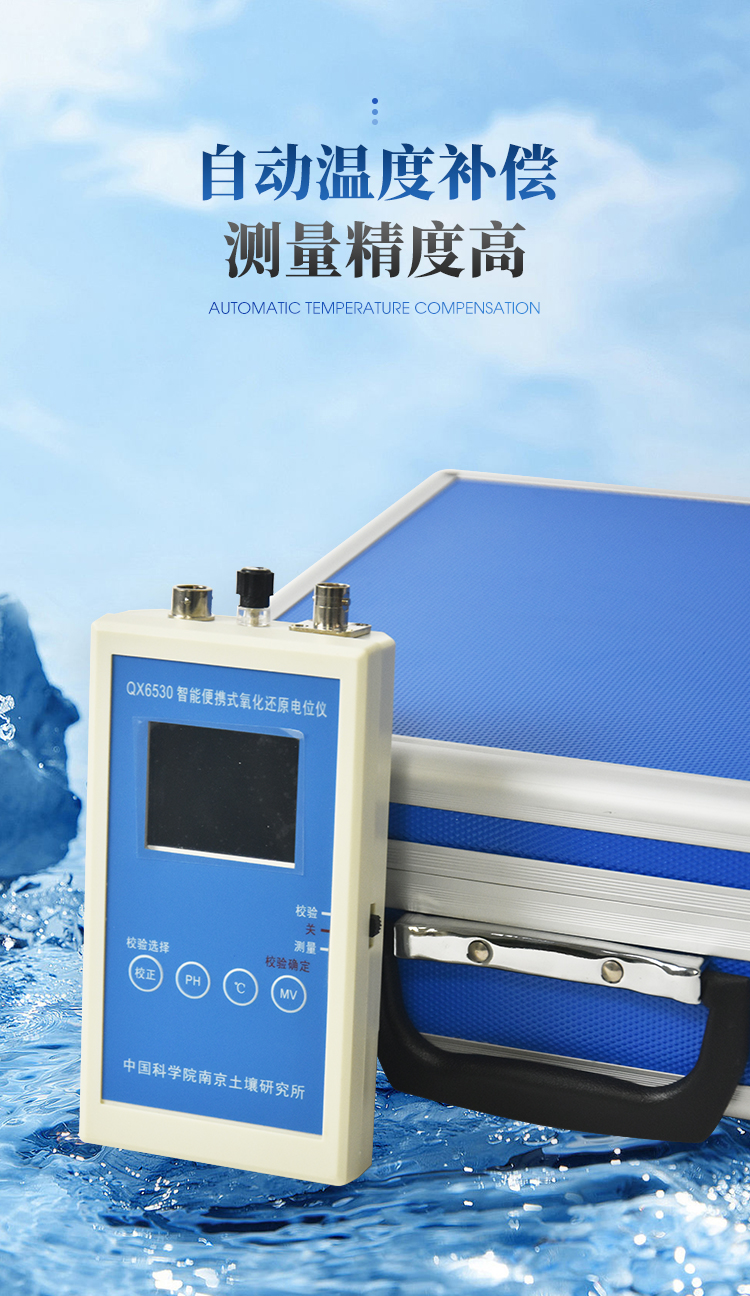

Temperature compensation: 5-35 ℃ automatic temperature compensation

Input impedance: 1KM Ω

Power supply: Lithium battery 1500mAh

Applicable environment: 0-50 ℃ ≤ 80% RH

Matching electrode: Platinum electrode and calomel electrode pair or redox electrode composite pH electrode temperature sensor

Power supply: 4 × 12V AA battery, continuous working time greater than 20 hours

Measurement time: 30-45 minutes

Instrument size: 200 × eighty-five × forty

Weight: 500g

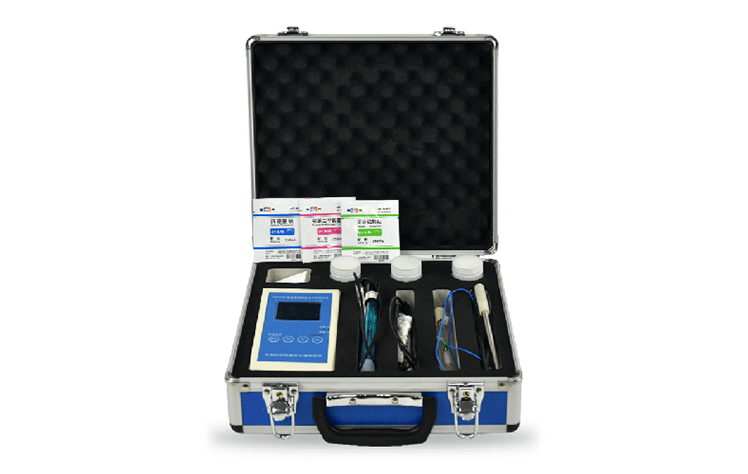

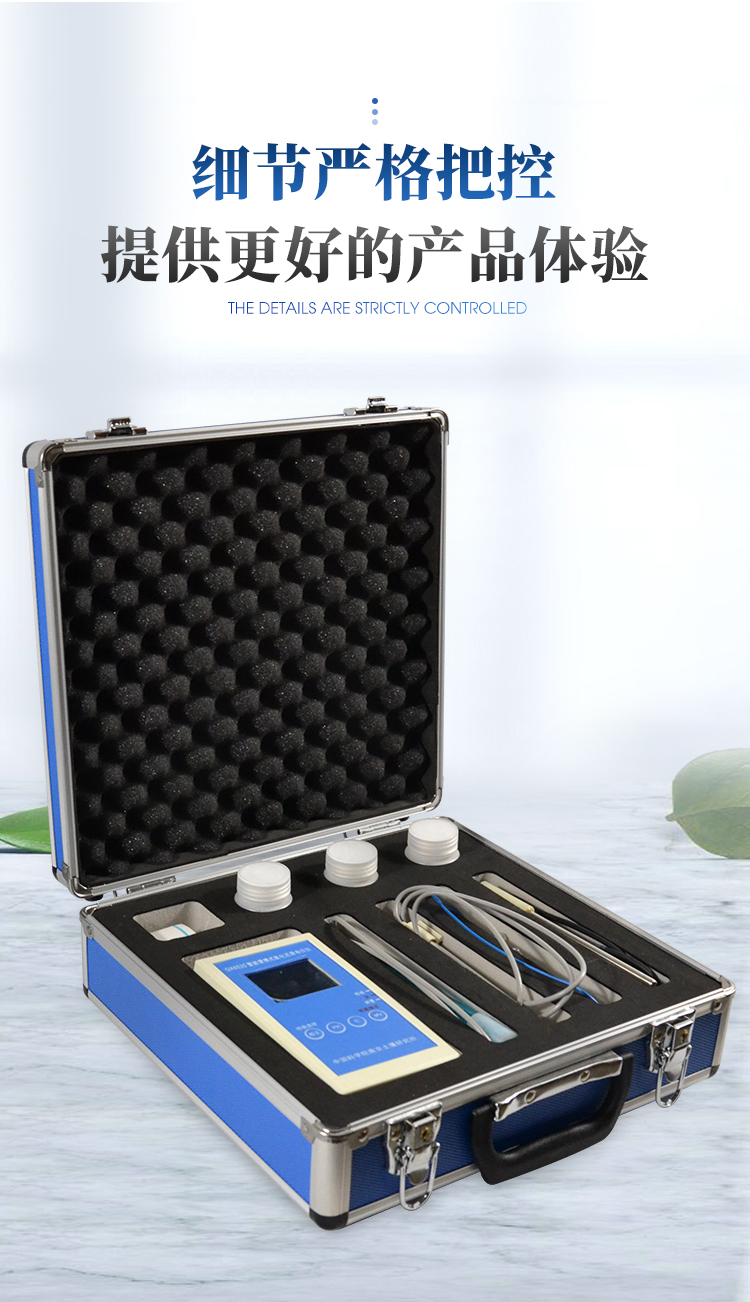

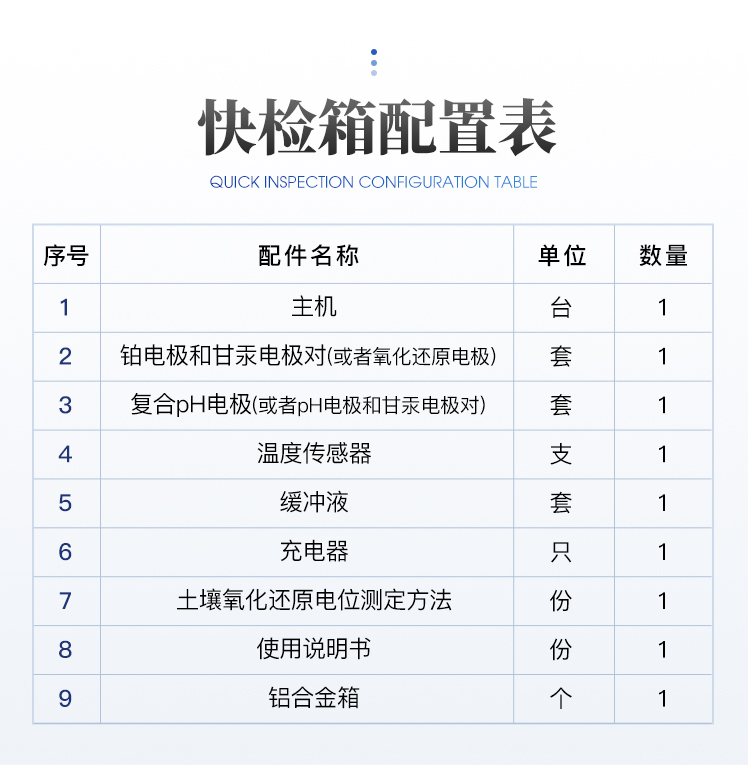

Packing list：

1 host

1 set of platinum electrode and calomel electrode pairs (or redox electrodes)

1 set of composite pH electrodes (or pH electrode and calomel electrode pairs)

1 temperature sensor

1 set of buffer solution

1 charger

One method for measuring soil redox potential

1 copy of user manual

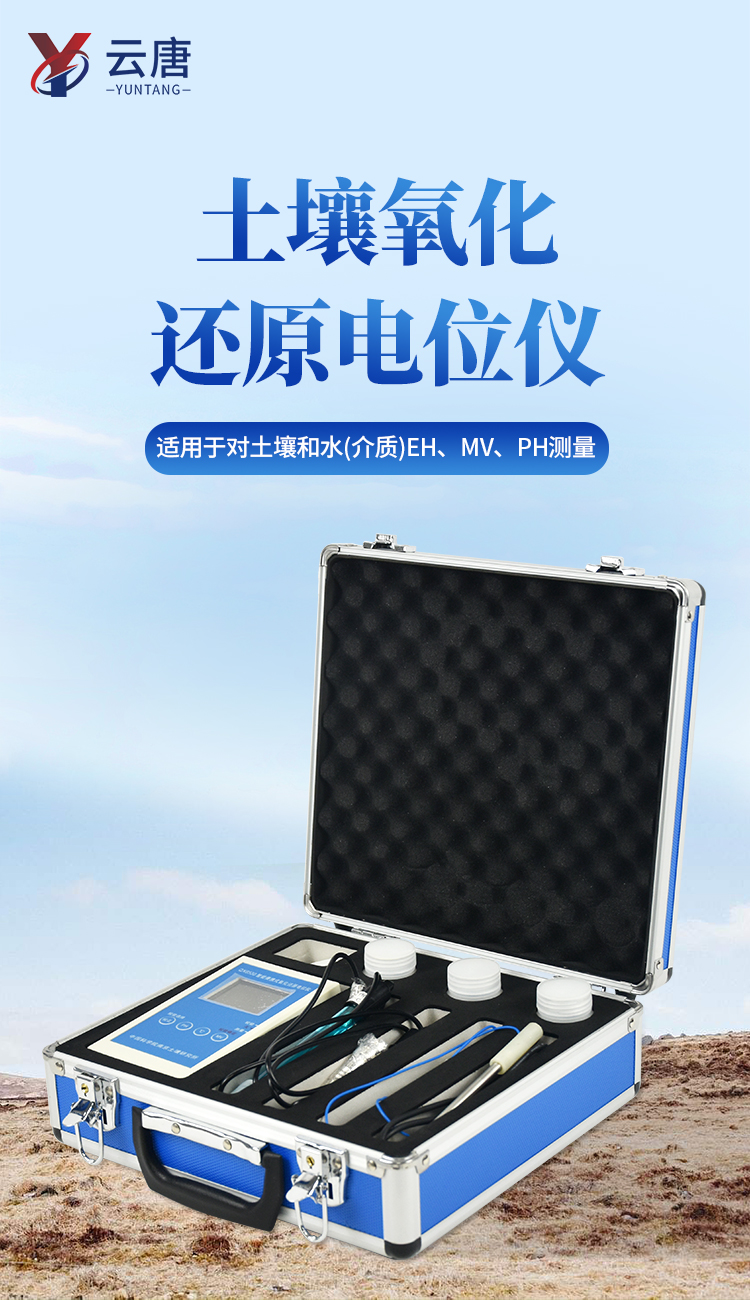

1 aluminum alloy box
