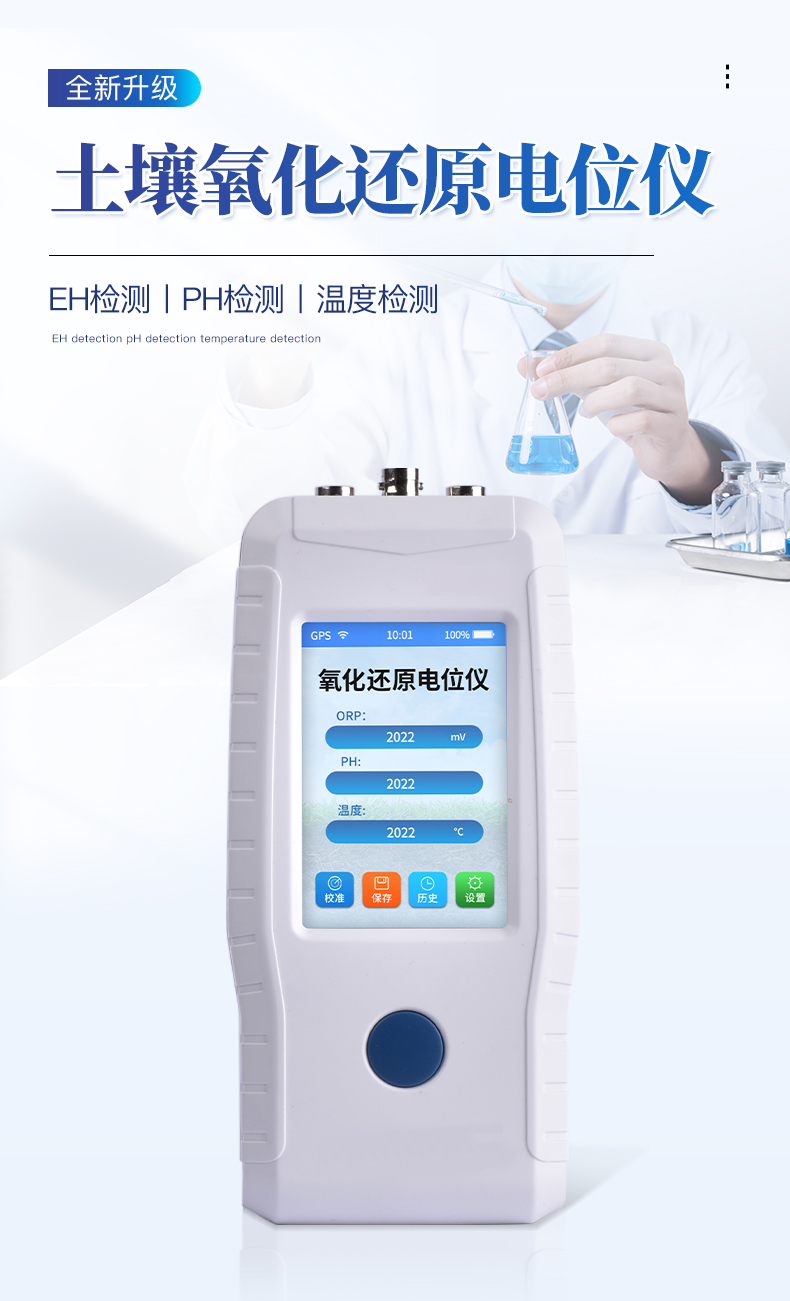

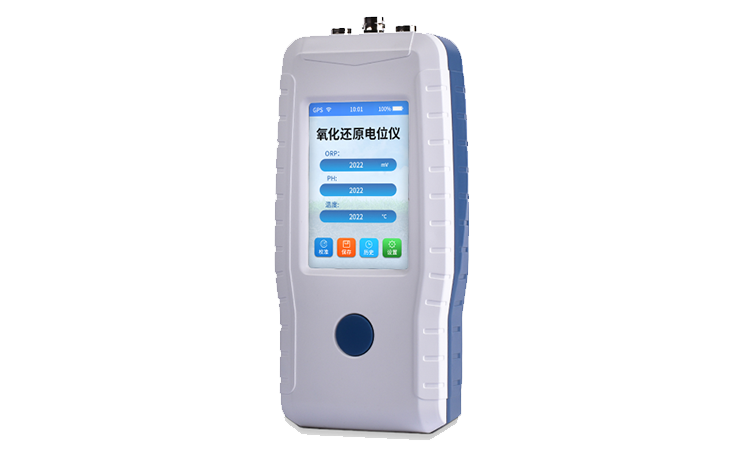

Soil redox potential meter

 Product Introduction：

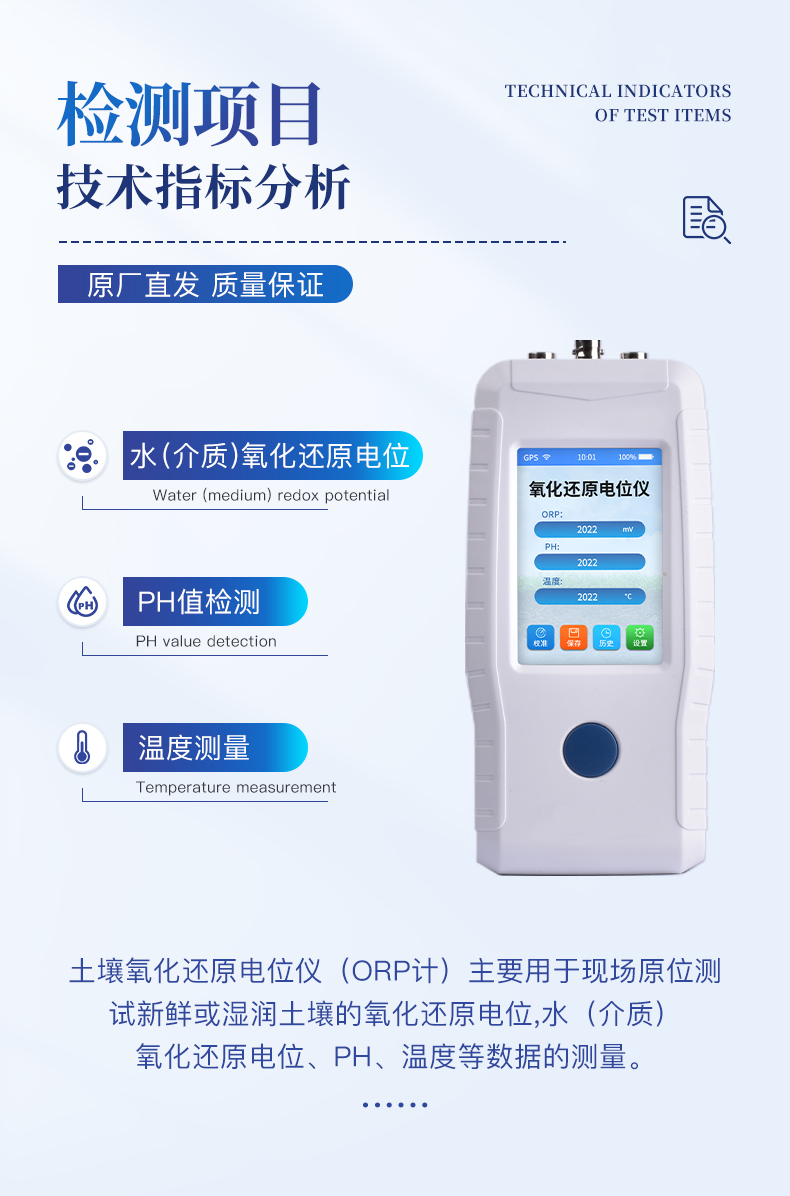

The YT-YH soil oxidation-reduction potential meter (ORP meter) is mainly used for on-site in-situ testing of the oxidation-reduction potential of fresh or moist soil, measurement of water (medium) oxidation-reduction potential, pH, temperature and other data. Meets the standard of HJ746-2015 Determination of Soil Oxidation-reduction Potential by Potentiometric Method.

The soil oxidation-reduction potential (ORP/Eh), as a comprehensive indicator of soil environmental conditions, has been used for a long time. It characterizes the relative degree of the medium's oxidizing or reducing properties and has an important impact on the chemical and biological processes of soil. It is an important parameter for understanding the properties and processes of soil. The higher the oxidation-reduction potential, the stronger the oxidizing ability. The lower the oxidation-reduction potential, the stronger the reducing ability. A positive potential indicates that the solution exhibits certain oxidizing properties, while a negative potential indicates that the solution exhibits certain reducing properties.

The oxidation-reduction potential (ORP) of water quality is one of the most important water quality indicators. Although it cannot independently reflect the quality of water quality, it can integrate other water quality indicators to reflect the ecological environment in aquatic systems. 1. Industrial wastewater treatment: used in redox systems for water treatment, mainly for the reduction of chromic acid and the oxidation of cyanide; 2. Disinfection and application of water: The redox potential can measure the disinfection effect on swimming pool water, mineral water, and tap water. Because the bactericidal efficiency of Escherichia coli in water is related to the redox potential, the redox potential is a reliable indicator of water quality; 3. Aquaculture industry: The oxidation-reduction potential can reflect the concentration of certain inorganic substances in water, the state of aquatic organisms, and the oxygen content in water, reflecting the macroscopic oxidation-reduction properties of water quality. It is a comprehensive indicator for judging water quality.

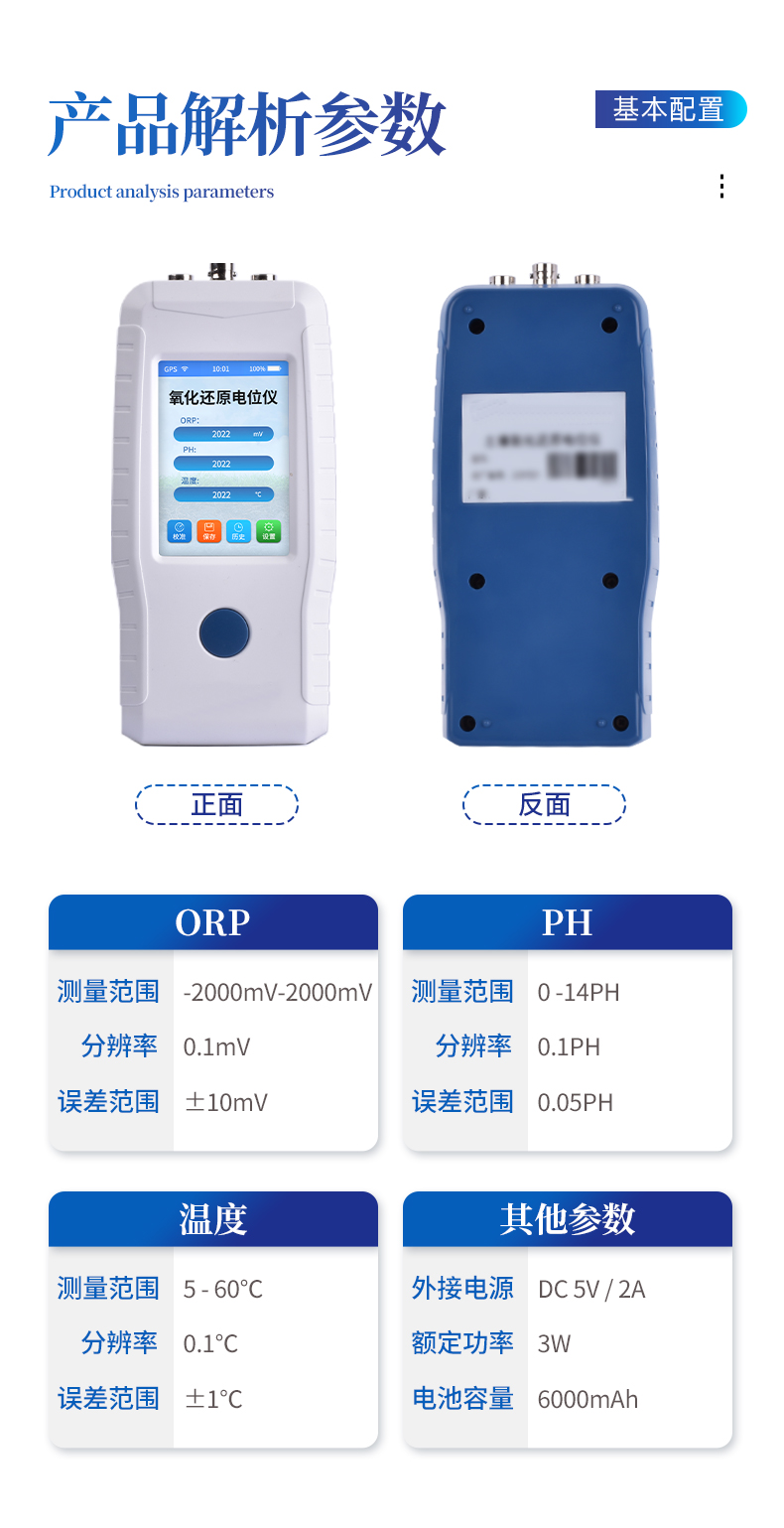

 Product parameters：

(1) ORP: Measurement range -2000mV to 2000mV

Resolution 0.1mV

Error range ± 10mV

(2) PH: Measurement range 0-14PH

Resolution 0.1PH

Error range: 0.05PH

(3) Temperature: measurement range 5-60 ℃

Resolution: 0.1 ℃

Error range ± 1 ℃

(4) External power supply: DC 5V/2A

(5) Rated power: 3W

(6) Battery capacity: 6000mAh

 Product features：

ARM Cortex-M3 architecture processor, Android system.

Standard Type-c charging allows for direct charging of devices using a mobile phone charger.

Continuous detection, data collection time can be set in minutes.

● Support calibration

Equipped with automatic temperature compensation function, supporting manual temperature compensation

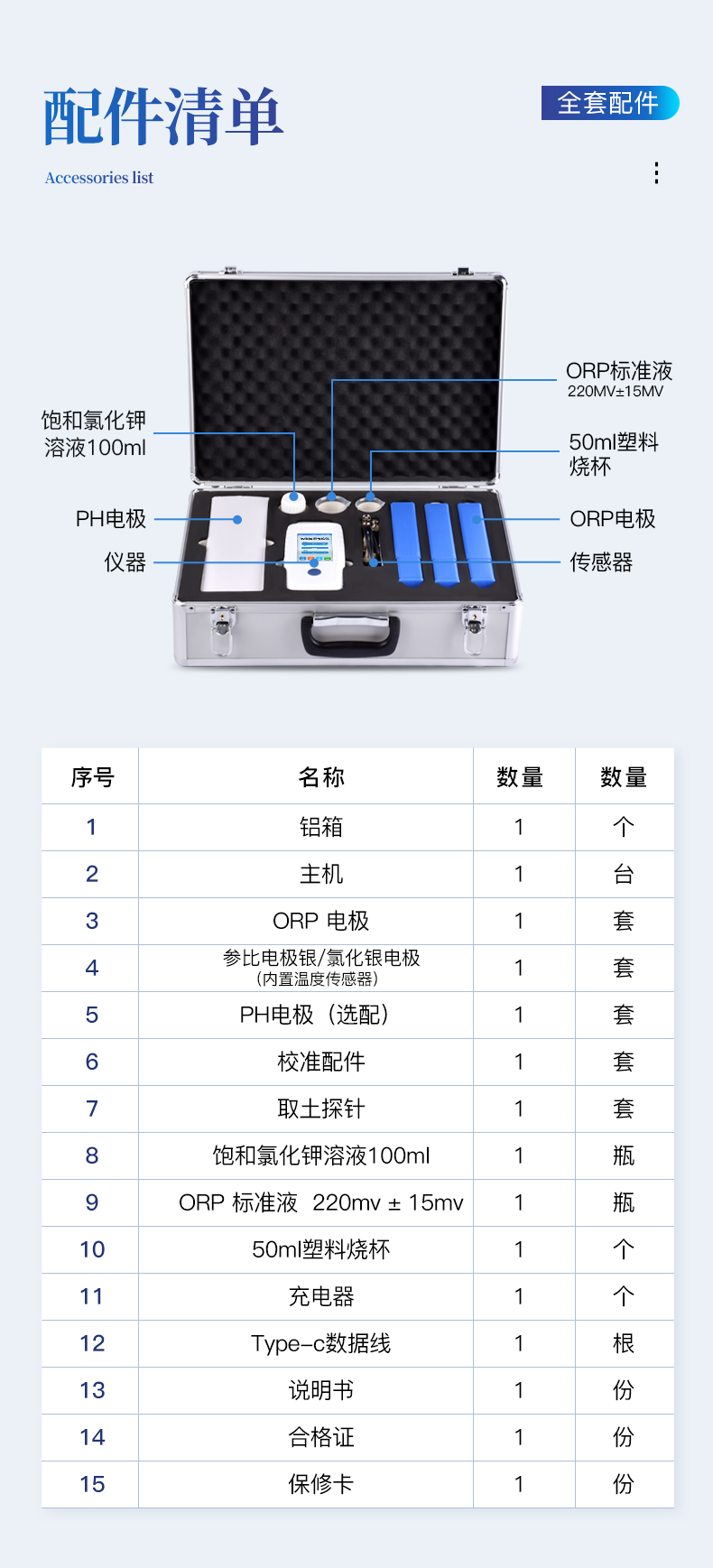

Equipped with dedicated ORP electrodes, reference electrodes, and stainless steel hollow plugs, which can be directly inserted into soil

Equipped with reading lock function (automatic reading), the measurement result is the final result, without the need for conversion and calculation

The test results can be uploaded.

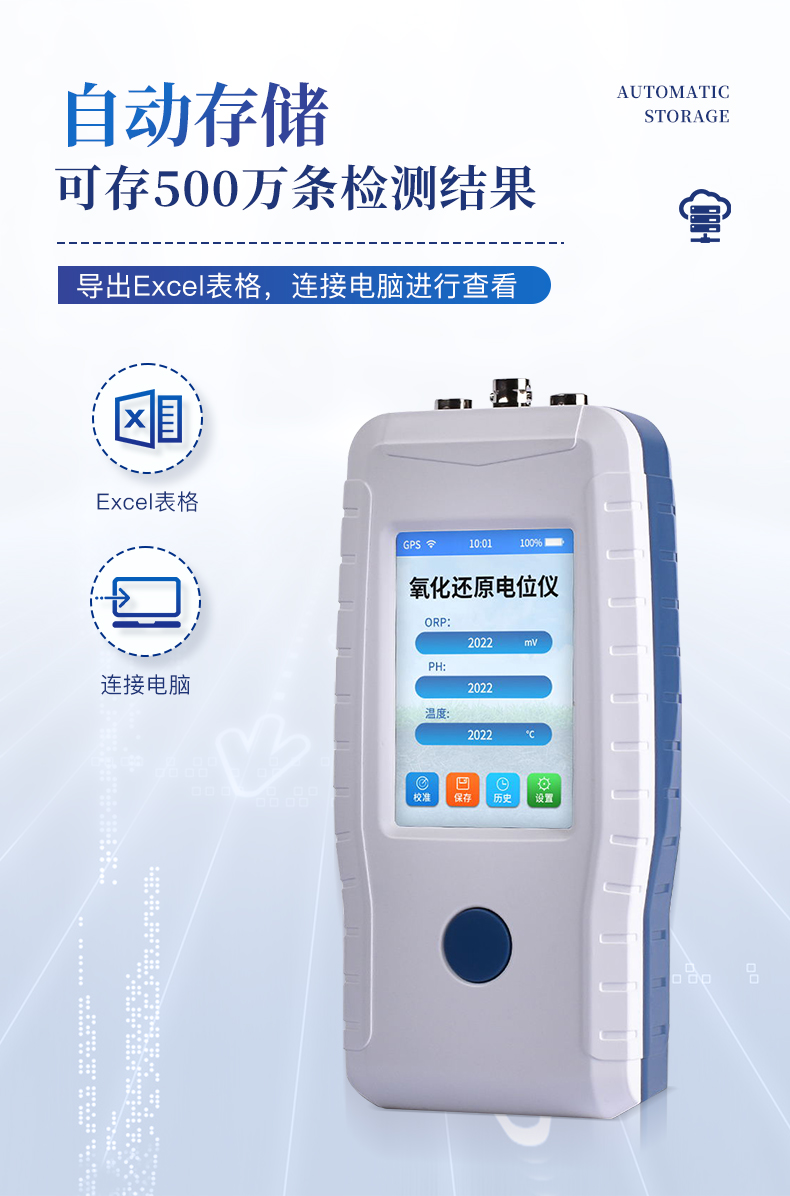

The test results can be exported to an Excel spreadsheet and viewed by connecting to a computer.

The storage capacity for detection results is 5 million, supporting data storage and retrieval.

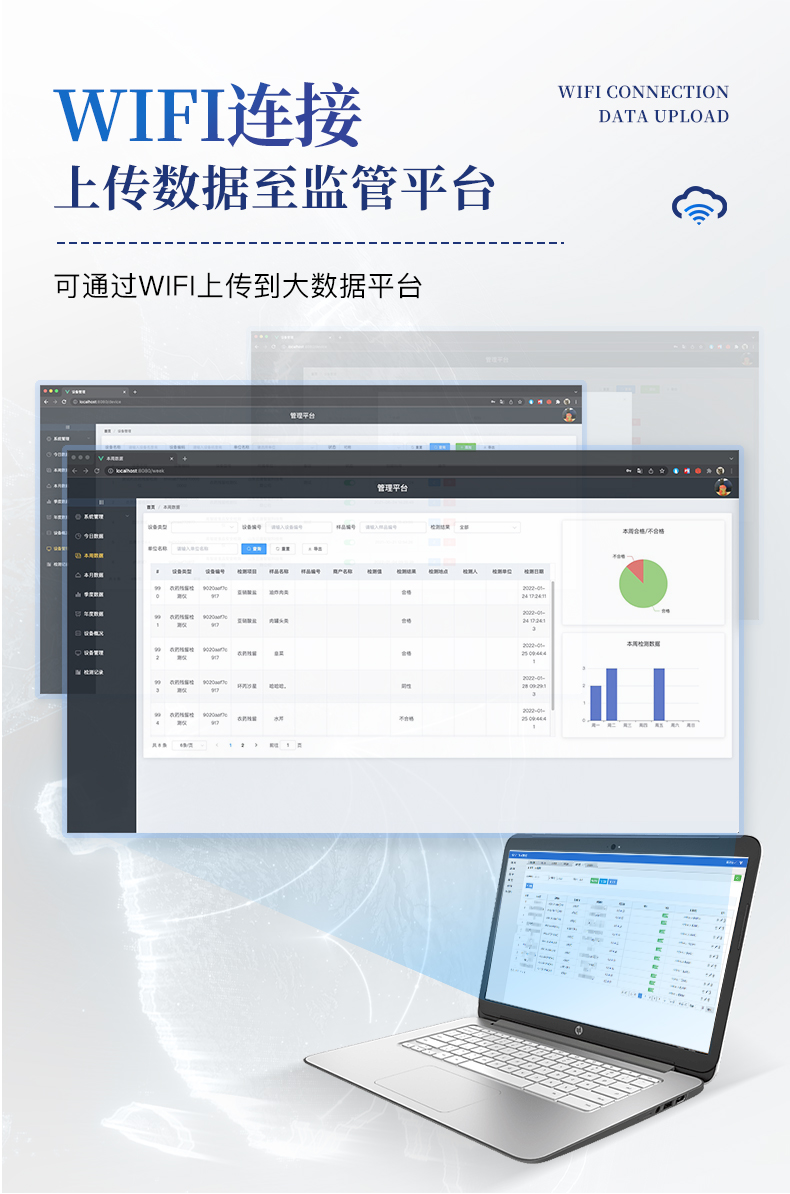

● Supports Wi Fi, with detection results directly transmitted to regulatory platforms

A 3.5-inch color touch screen provides a better user experience.

● Equipped with automatic backlighting and automatic shutdown functions;;

P65 protection level.
