Plant disease and pest detection instrument

Product Usage:

The disease meat detector produced by Shandong Yuntang Intelligent Technology Co., Ltd. is an integrated food safety rapid detection and analysis equipment that adopts a desktop integrated design. It can quickly and quantitatively detect histamines and volatile base nitrogen in diseased meat such as pork, beef, lamb, and fish. The instrument reserves other project detection programs and ports, and can be upgraded according to future needs

The disease meat detector is an integrated food safety rapid detection and analysis equipment, which is currently widely used in market supervision bureaus, food and meat product deep processing enterprises, school canteens, health departments, animal husbandry departments, slaughterhouses, inspection and quarantine departments, and other units.

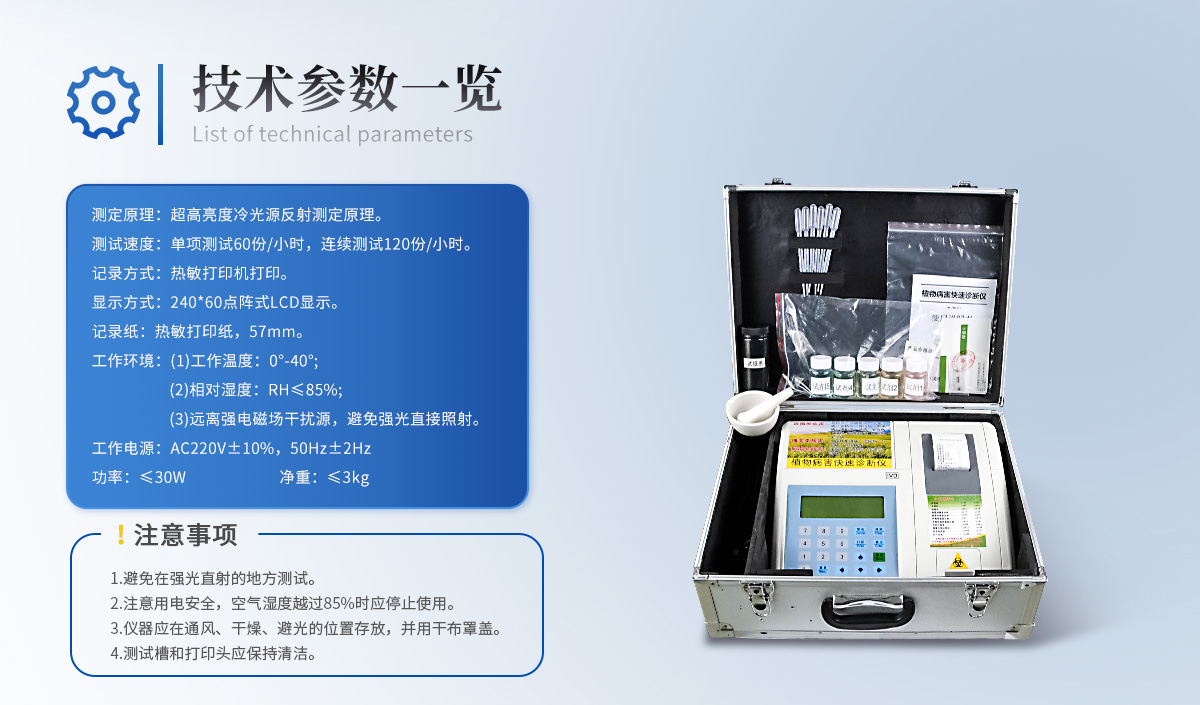

Technical indicators:

1. The instrument adopts desktop integrated system detection technology, which highly integrates the spectrophotometer module, digital management module, and wireless communication module, supporting the detection of dozens of food safety detection items, while reserving upgrade detection methods.

2. The instrument detection module is standardized and intelligent, and the detection items can be freely combined. The detection box is equipped with multiple standard detection units, and the detection module can be adjusted and configured.

3. Display screen: The instrument adopts a 7-inch LCD touch screen, paired with the Android intelligent operating system. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, which is easy to operate and has stronger performance.

4. Detection channel: ≥ 12 channels; Adopting a precision rotating colorimetric cell design, using the same chip and light source to calibrate accuracy, solving the error values between different light sources, making it more accurate and efficient.

5. Instrument light source: high-precision imported four wavelength cold light source, each channel is equipped with 410, 520, 590, and 630nm wavelength light sources, and is equipped with advanced optical path switching devices as standard. The patented optical path switching function can achieve 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

6. Communication interface: equipped with wireless communication module, optional 4G (APN) communication module and Bluetooth transmission, and equipped with USB interface, which can achieve data storage and transmission in multiple ways.

7. Storage method: Supports USB storage, standard USB interface, and driver free installation. The storage capacity of the test results is over 200000, which can generate Excel spreadsheets for copying and has login protection function.

8. Intelligent operating system:

8.1 Operating System: The instrument can automatically correspond to relevant detection channels on the same detection interface, selecting 1-12 sample names at once, without the need to exit the interface, saving operation time. And each channel attribute and sample information can be edited separately, such as the inspection unit, personnel, testing personnel, etc. When printing, check the print display.

8.2. Limit determination system: With a limit inquiry and compliance determination system for added substances. After detecting the results, the system automatically calls the relevant national standards in the system database for comparison and judgment, objectively displaying whether the results are qualified.

8.3. Data Supervision System: Synchronized with the supervision platform, data can be uploaded on both local area networks and the internet, and test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision, big data analysis and processing, and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and warning.

8.4 Printing System: Equipped with a brand new printer, it can print information such as project name, QR code, sampling information, testing information, inspection information, review information, sampling date, testing date, etc.

9. Power supply mode: The instrument can be used for both AC and DC, with a 12V DC power supply (standard). It can be connected to a car power supply, and can also be equipped with a 6Ah large capacity rechargeable lithium battery. The battery level can be displayed in real-time, making it convenient for outdoor flow testing.

10. The instrument has functions of recalibration, locking, and restoring factory settings,

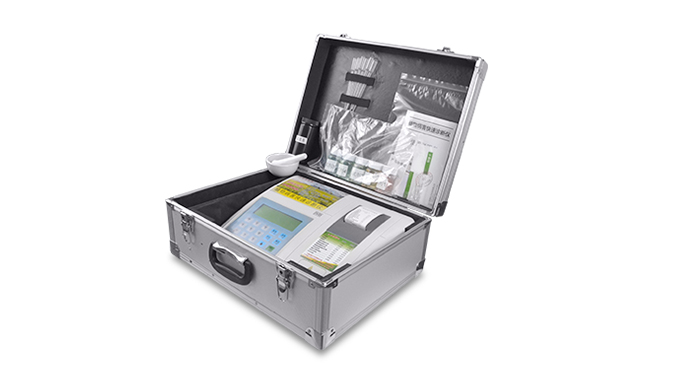

11. Appearance size: 415X310X150 (mm), and aluminum alloy suitcase can be added
