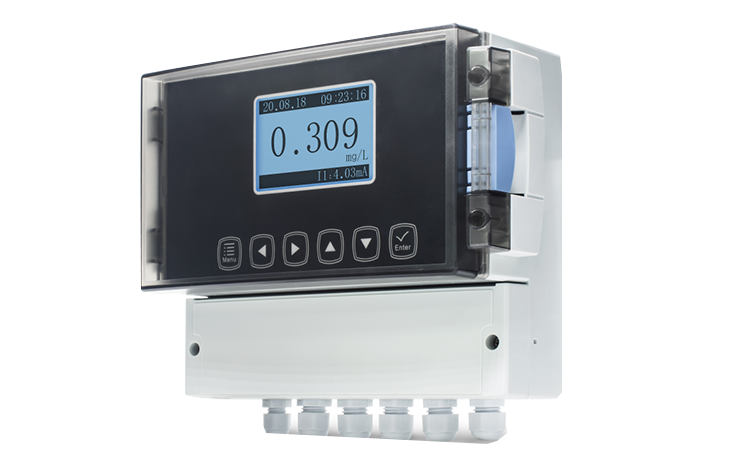

Residual chlorine online detector

Product Overview:

Industrial residual chlorine online analyzer is a brand new residual chlorine analyzer with high intelligence and flexibility. It can simultaneously measure residual chlorine, hypochlorous acid, pH, and temperature. It is widely used in industries such as electricity, water supply, medicine, chemical, and food, and continuously measures residual chlorine and pH values in water.

Product features:

Featuring full intelligence, versatility, high measurement performance, and strong environmental adaptability;

Simultaneous display of multiple parameters, residual chlorine value, output current, and time;

Various variable outputs such as 4-20mA transmission output, relay high and low alarm control output, RS485 communication output, etc. are intelligently controlled by the system;

The two-point calibration method can correct sensor errors;

Adapt to various types of measuring electrodes;

High precision automatic temperature compensation system;

Chinese and English operation interface

Measurement composition system

Online transmitter/host (LCD menu in both Chinese and English)

Immersion and flow type electrodes/sensors

10 meter cable (standard configuration, extension to be discussed separately)

4-20mA/RS485 can be connected to PLC or recorder, etc. (RS485 needs to be purchased)

Immersion installation bracket, circulation accessories, outdoor instrument box (optional)

Instrument features:

❊ Lattice LCD screen display

❊ Intelligent menu operation

Multiple automatic calibration functions

Multiple signal output methods

❊ Manual and automatic temperature compensation

❊ Three sets of relay control switches

❊ High limit, low limit, hysteresis control

Display residual chlorine, temperature, status, etc. on the same interface

Technical parameters:

Product name: Online residual chlorine analyzer

Product model: HM-SYL

Measurement range: Flow rate: 0.05-20.00mg/L (ppm) Temperature: 0-50 ℃

Measurement accuracy: ± 1% F S temperature: ± 0.3 ℃

Temperature compensation: automatic or manual

Resolution: 0.001mg/L Temperature: 0.1 ℃

Response time: 90% less than 90 seconds

Relay: Three sets of 5A 240VAC/5A 28VDC or 120VAC

Power supply: 85-265VAC or 9-36VDC, power: ≤ 3W

Current output: standard with 2 channels of 4-20mA

Communication output: Standard RS485 Modbus RTU

External dimensions: 215 * 125 * 80mm

Opening size:-

Protection level: IP65

Installation method: wall mounted

Instrument weight: 1.5kg

Environmental temperature: -10~60 ℃; Relative humidity: ≤ 90%; No strong magnetic field interference around except for the Earth's magnetic field
