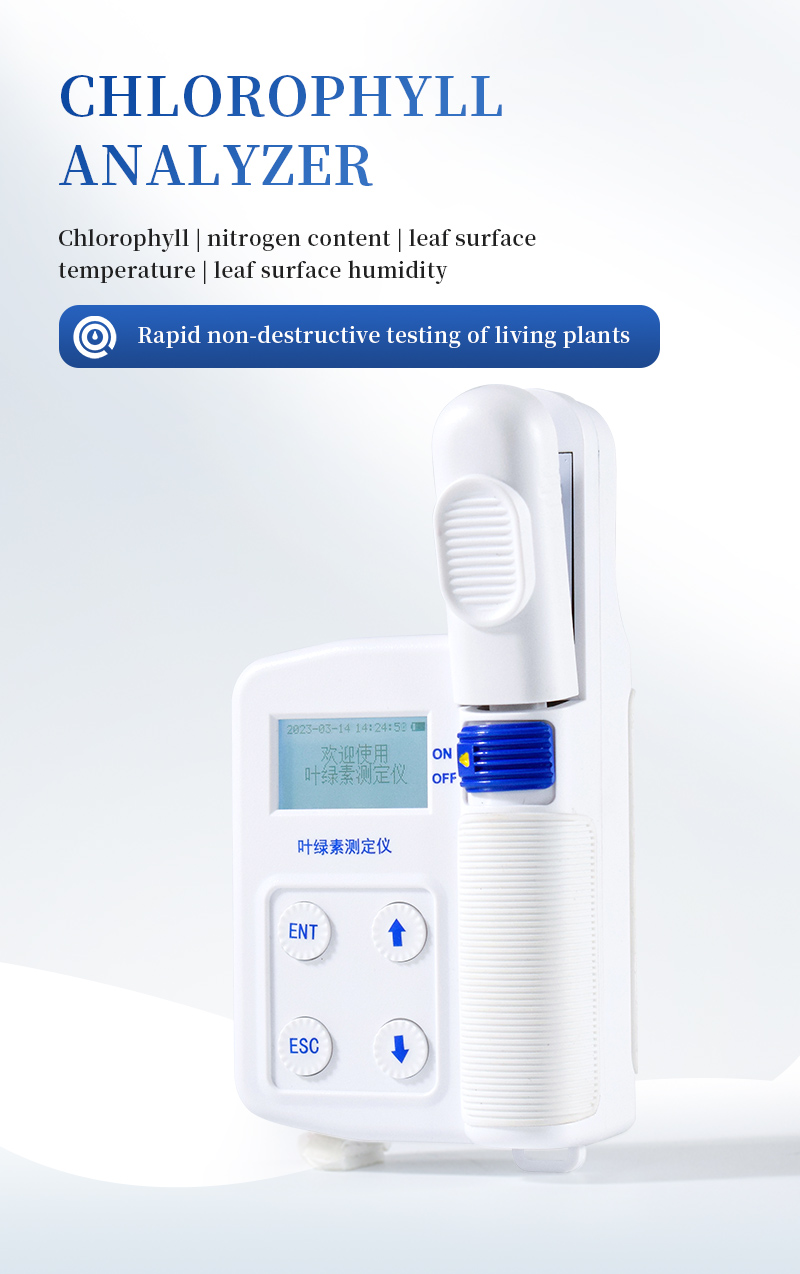

Intelligent chlorophyll meter YT-YE

1、 Purpose:

The plant nutrient analyzer can instantly and non destructively measure the relative chlorophyll content (unit SPAD) or greenness, nitrogen content, leaf surface humidity, and leaf surface temperature of plants, thereby understanding the true nitrate demand of plants and the degree of soil nitrate deficiency or whether excessive nitrogen fertilizer has been applied. This instrument can increase the utilization rate of nitrogen fertilizer and protect the environment. It can be widely applied in agricultural and forestry related research institutions and universities to study plant physiological indicators and provide guidance for agricultural production.

2、 Technical indicators

1. Testing items: chlorophyll content, nitrogen content, leaf surface temperature, leaf surface humidity

2. Measurement range Chlorophyll: 0.0-99.99SPAD Nitrogen content: 0.0-99.99mg/g

Leaf surface humidity: 0.0-99.9RH% Leaf surface temperature: -10-99.9 ℃

3. Measurement area: 2mm * 3mm

4. Measurement accuracy of chlorophyll: within ± 1.0 SPAD unit (SPAD value ranges from 0-50 at room temperature)

Nitrogen content: ± 5% Leaf surface humidity: ± 5% Leaf surface temperature: ± 0.5 ℃

5. Repetitive chlorophyll: within ± 0.3 SPAD units (SPAD value between 0-50)

Nitrogen content: ± 0.5mg/g Leaf surface humidity: ± 0.5RH% Leaf surface temperature: ± 0.2 ℃

6. Measurement time interval: less than 0.8 seconds

7. Data storage: 16GB can be grouped and stored according to user needs

8. Power supply: 4.2V rechargeable lithium battery

9. Battery capacity: 3000mAh

10. Weight: 230g

11. Working and storage environment: -10 ℃~50 ℃ ≤ 85% relative humidity

3、 Functional Features

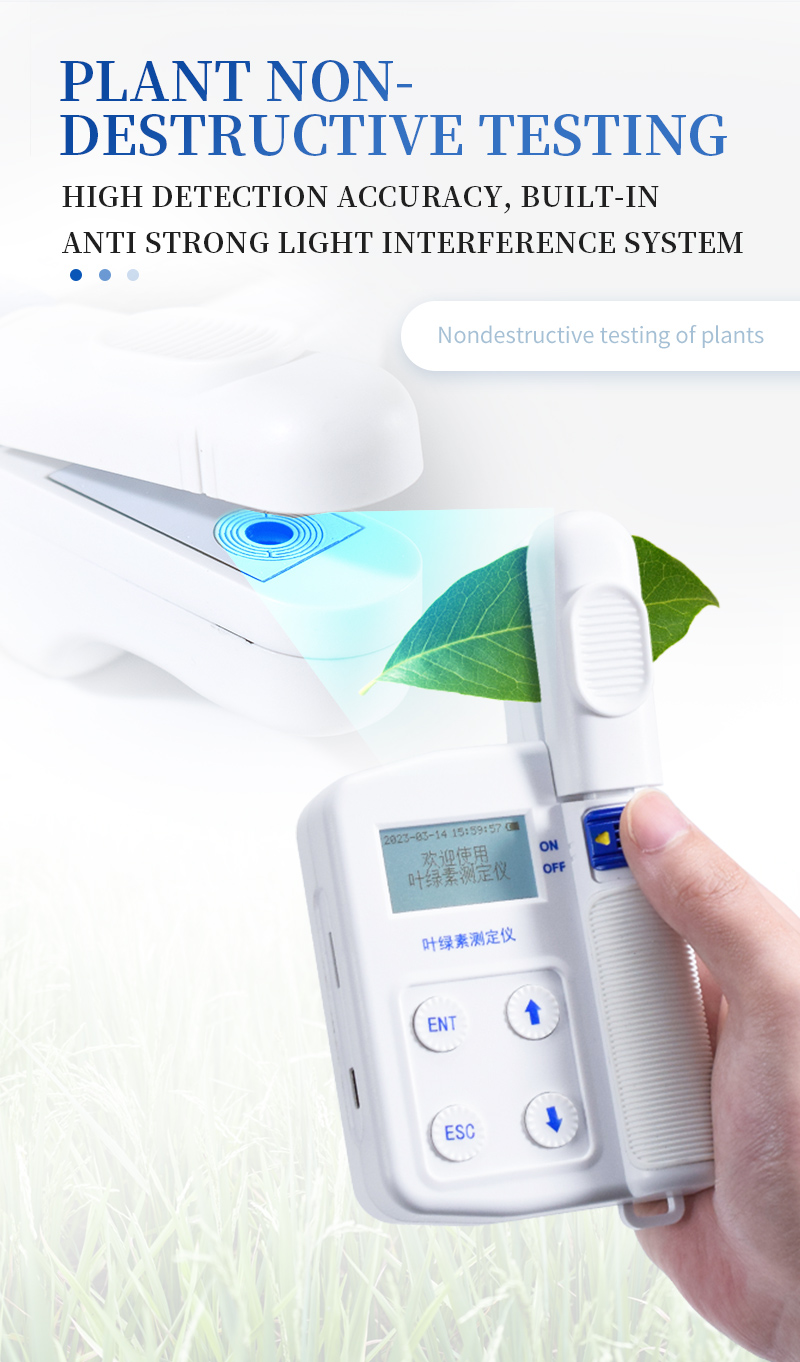

1. Fast and non-destructive plant live detection, measurement only requires inserting the leaves, no need to pick the leaves, does not affect the normal growth of crops, can monitor the leaves throughout the crop growth process, and obtain more scientific analysis results

2. High measurement accuracy (accuracy: ± 1.0 SPAD, repeatability: ± 0.3 SPAD), built-in anti strong light interference system

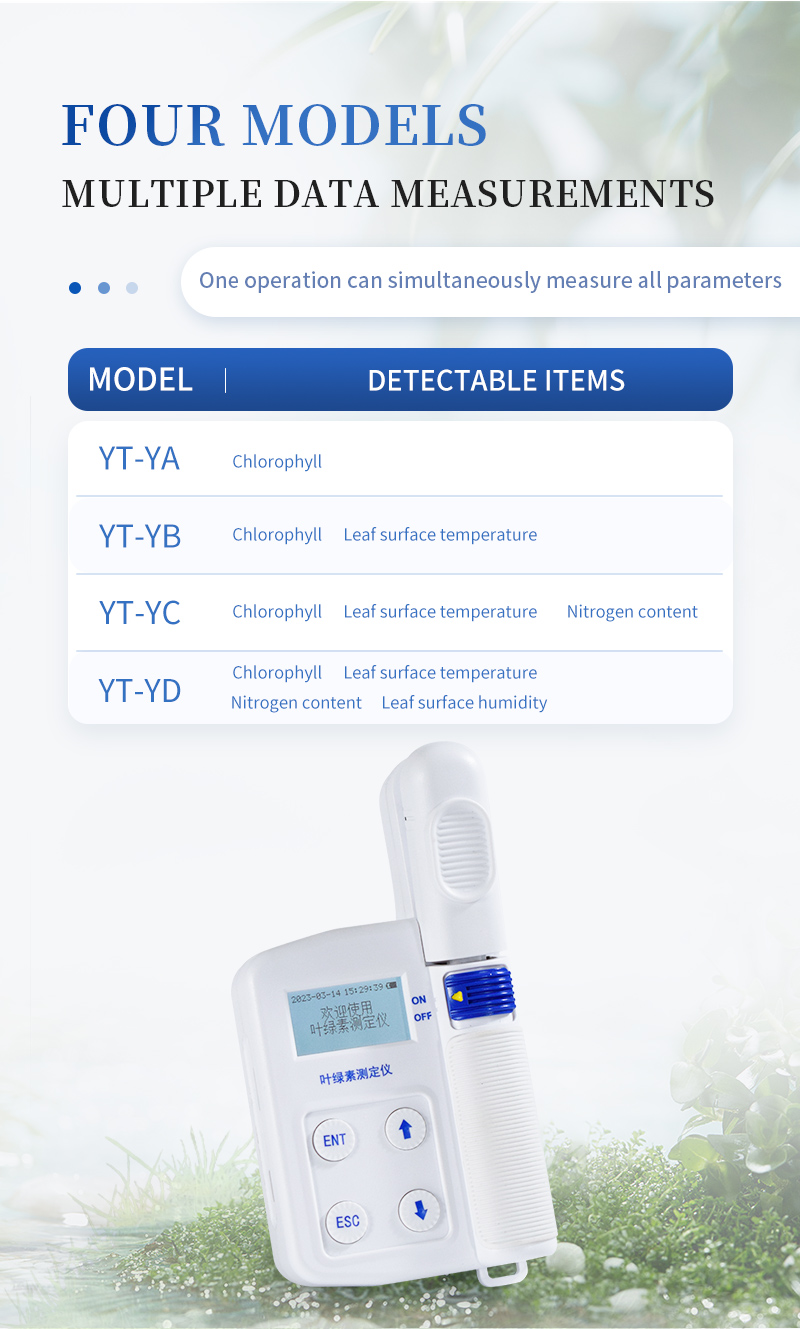

3. One operation can simultaneously measure all parameters, including chlorophyll, nitrogen content, leaf surface temperature, and leaf surface humidity, which can be displayed on the same screen and stored simultaneously

4.16GB large storage space, data can be grouped for storage, viewing, and exporting

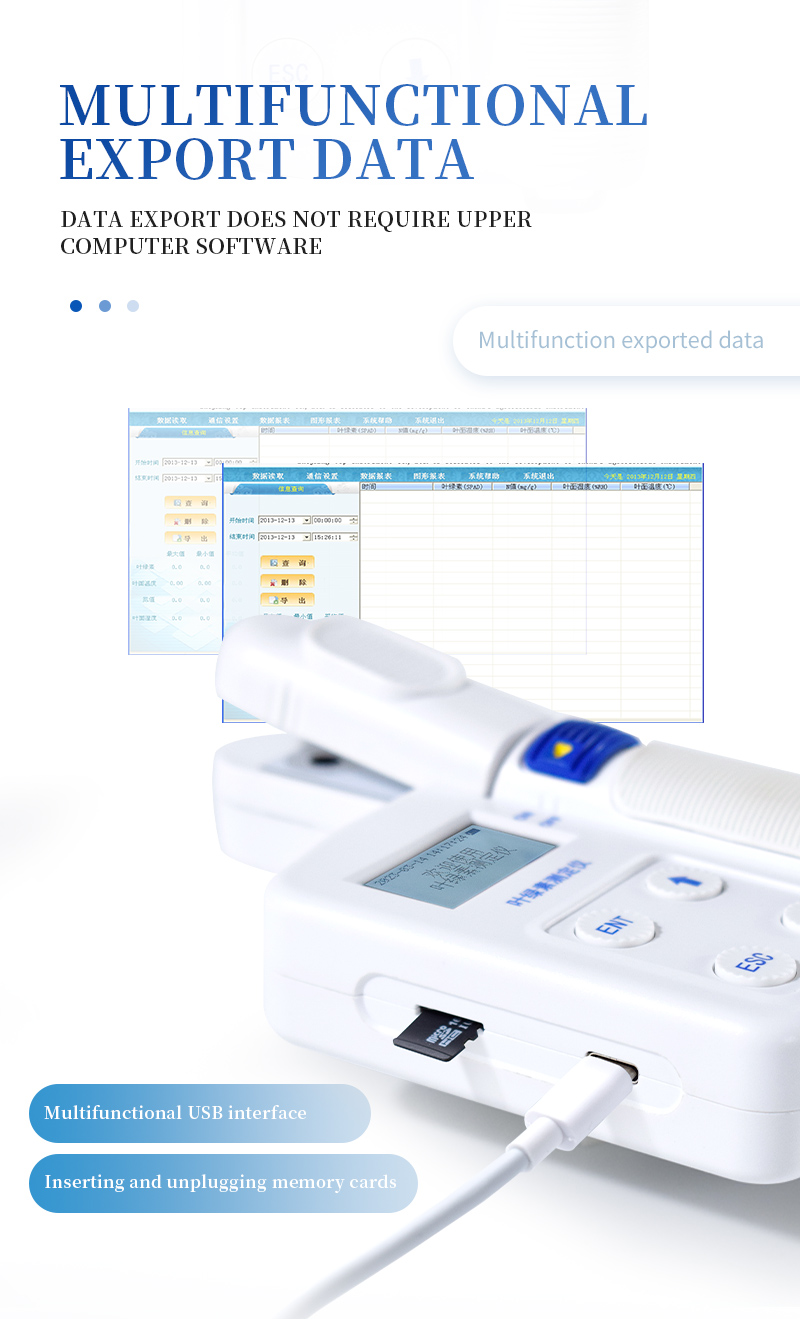

5. Multi functional USB interface, which can realize data export and charging functions. The instrument can be directly connected to the computer, and data export does not require upper computer software. It can also choose to use a memory card to directly export data, with simple and convenient operation

6. Data browsing: can browse, transfer, and clear historical data on the instrument

7. GPS positioning function: It can display satellite positioning latitude and longitude in real time, and clarify the current detection location.

8. The instrument is equipped with a built-in 4G wireless transmission module, which supports real-time uploading of data in outdoor environments. The test results can be directly transmitted to a dedicated cloud agriculture data center, and an enterprise specific cloud agriculture data center account can be assigned to view the uploaded data.

9. The cloud agriculture data center can retrieve historical data according to any time period, view measurement time, chlorophyll content, nitrogen content, leaf surface temperature, leaf surface humidity, GPS positioning information and other data, display the trend of each parameter process curve, display the maximum and minimum values for viewing, zoom in and out functions, support online download, EXCEL export, analysis, printing and other functions

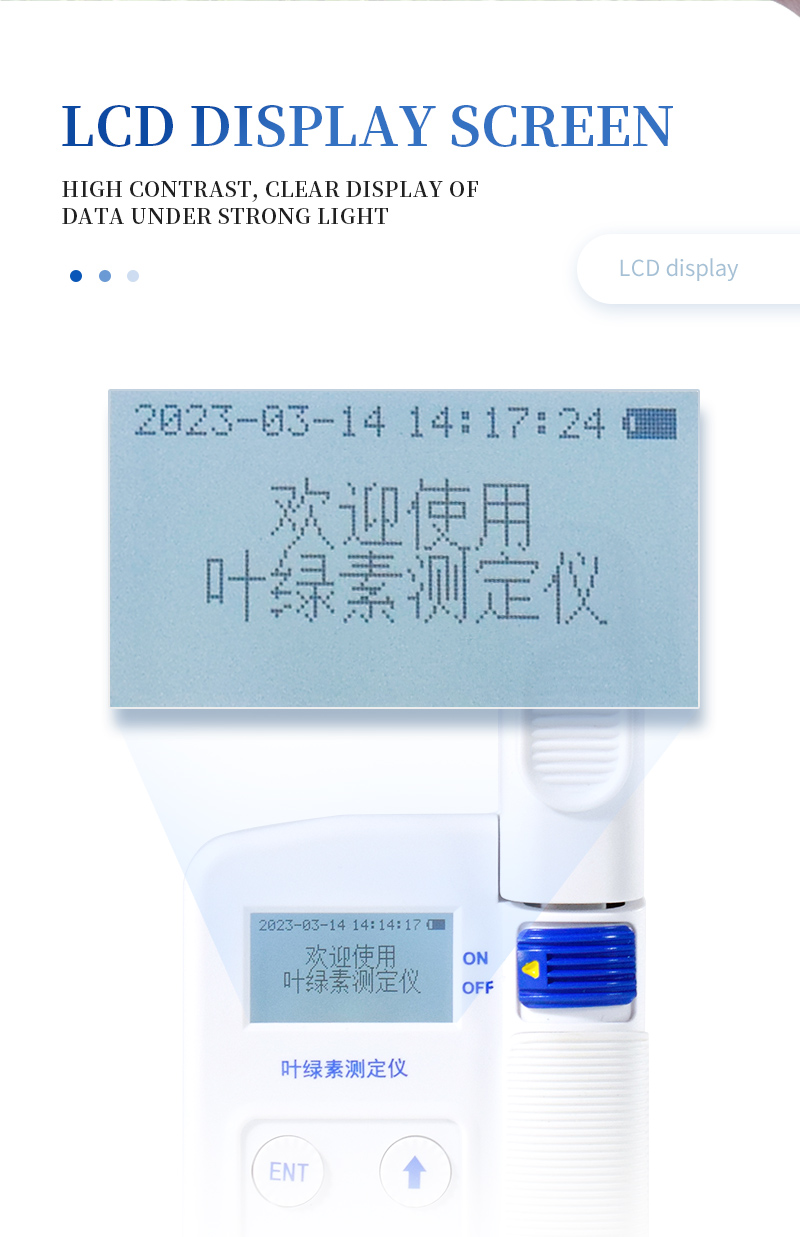

10. High contrast LCD display screen, capable of displaying data clearly even under strong light

11. Low power mode design, built-in large capacity lithium-ion rechargeable battery, with overcharge prevention function, energy-saving and environmentally friendly, and convenient outdoor operation

12. Built in bilingual display in Chinese and English, one click switching, seamless integration
