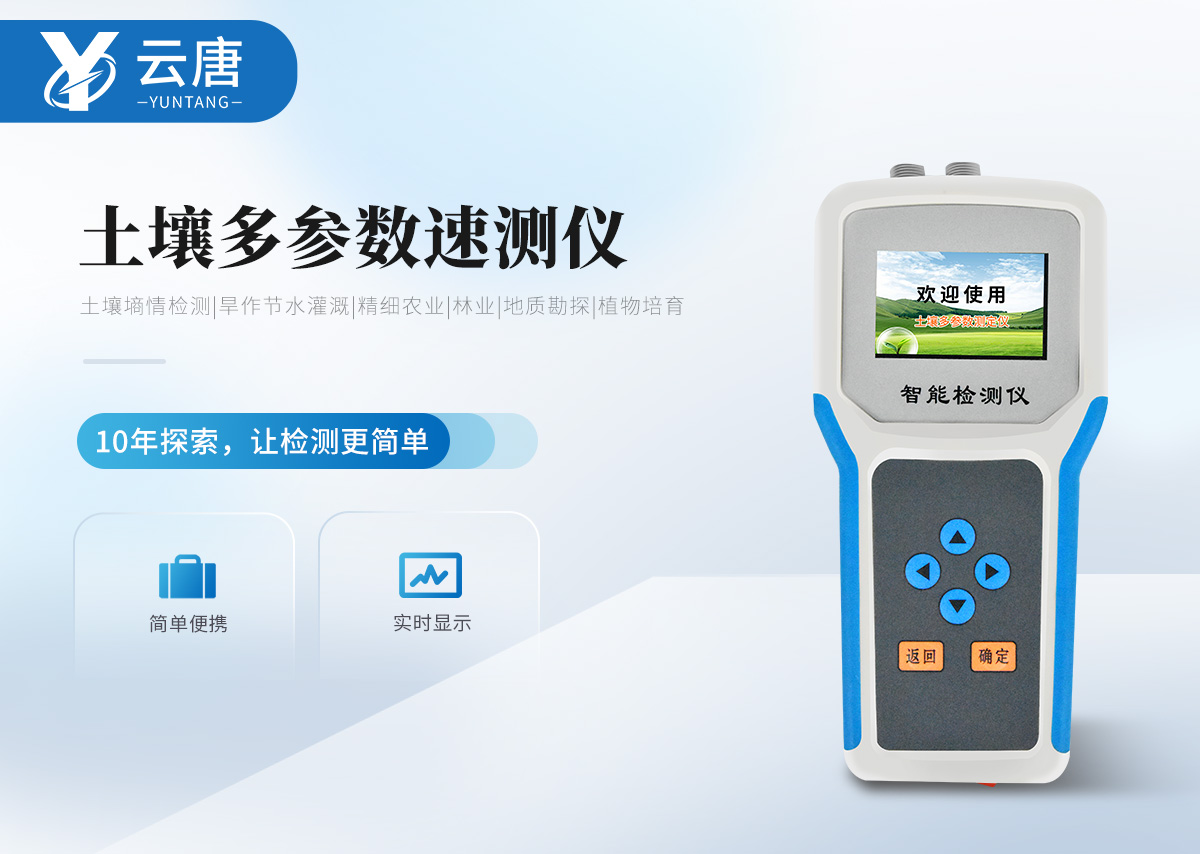

Soil pH rapid measuring instrument

Introduction:

The YT-TPH intelligent soil pH tester adopts an integrated structure design and an external SD card. The host can collect multiple parameters such as temperature, moisture, salinity, and pH of the tested environment soil in real time, and upload data with just one click.

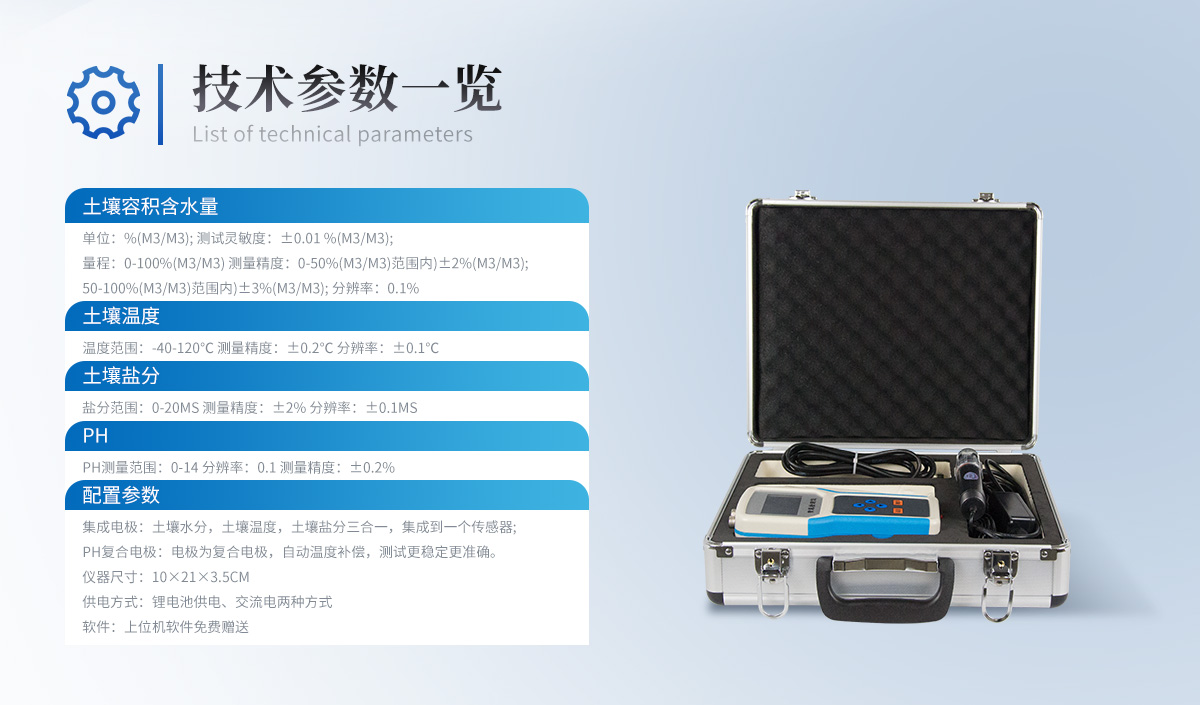

Technical parameters:

. PH measurement range: 0-14 Resolution: 0.1 Measurement accuracy: ± 0.2%

Power supply method: lithium battery or AC power supply. Software: Free gift of upper computer software

Intelligent electrode: Adopting high-precision two in one composite electrode with intelligent temperature compensation function

Outstanding performance:

Adopting an integrated structural design and an external SD card, it can accurately measure the pH of the measured location, and upload environmental factor measurement data of the measured point with just one click. You can also export data directly to the computer through the upper computer software.

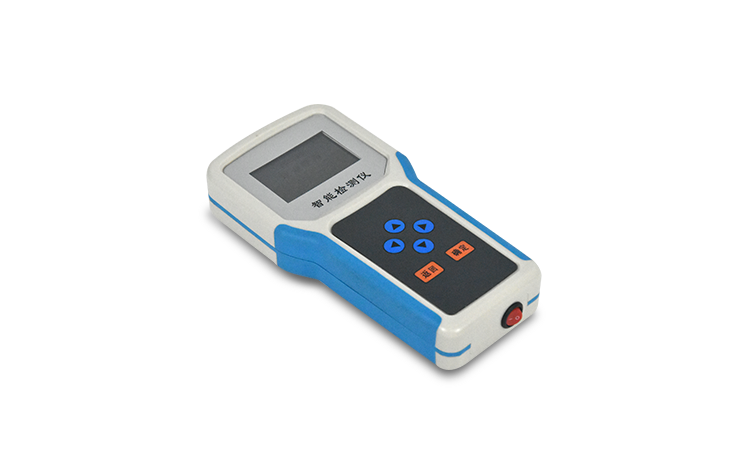

This machine is compact, aesthetically pleasing, easy to operate, reliable in performance, and extremely convenient to carry in the wild. After connecting the sensor to the host, records can be manually stored or automatically stored by setting sampling intervals on the host.

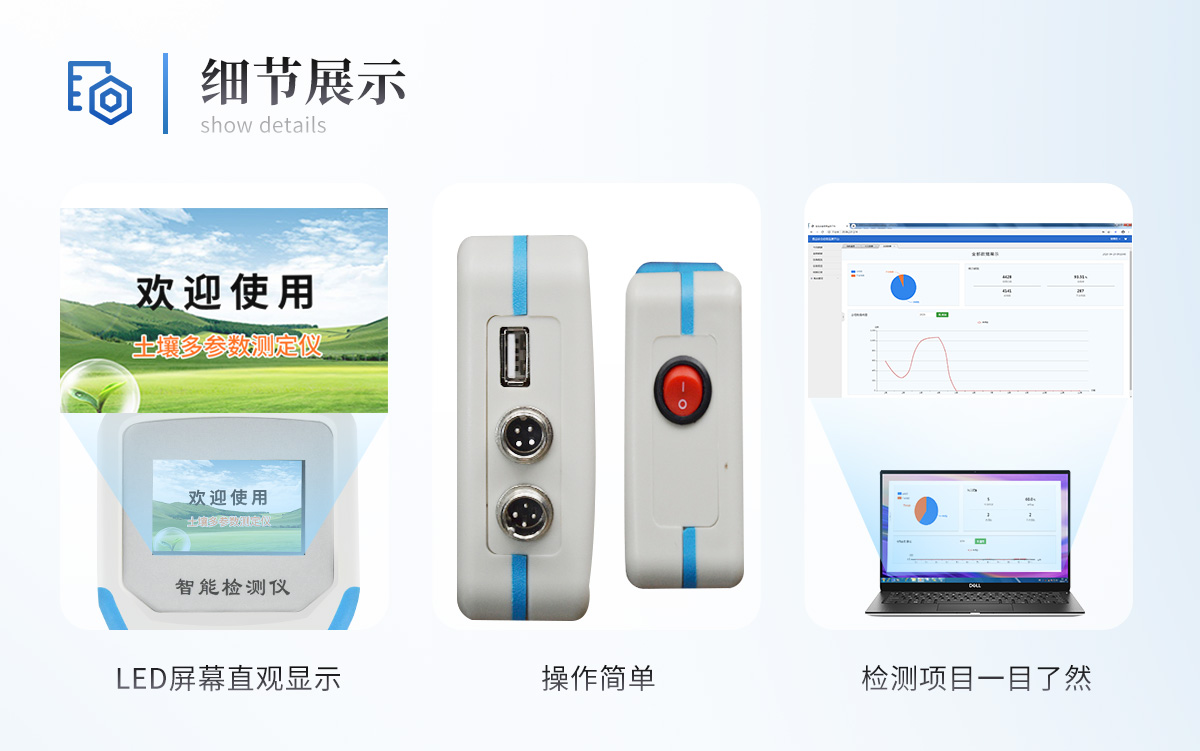

Large screen Chinese LCD display, tracking and recording the values, number of groups, and low voltage alarms of various tested environmental factors throughout the process. The host is equipped with a large capacity memory, which can store 300000 pieces of data and has automatic storage protection function for power outage data.

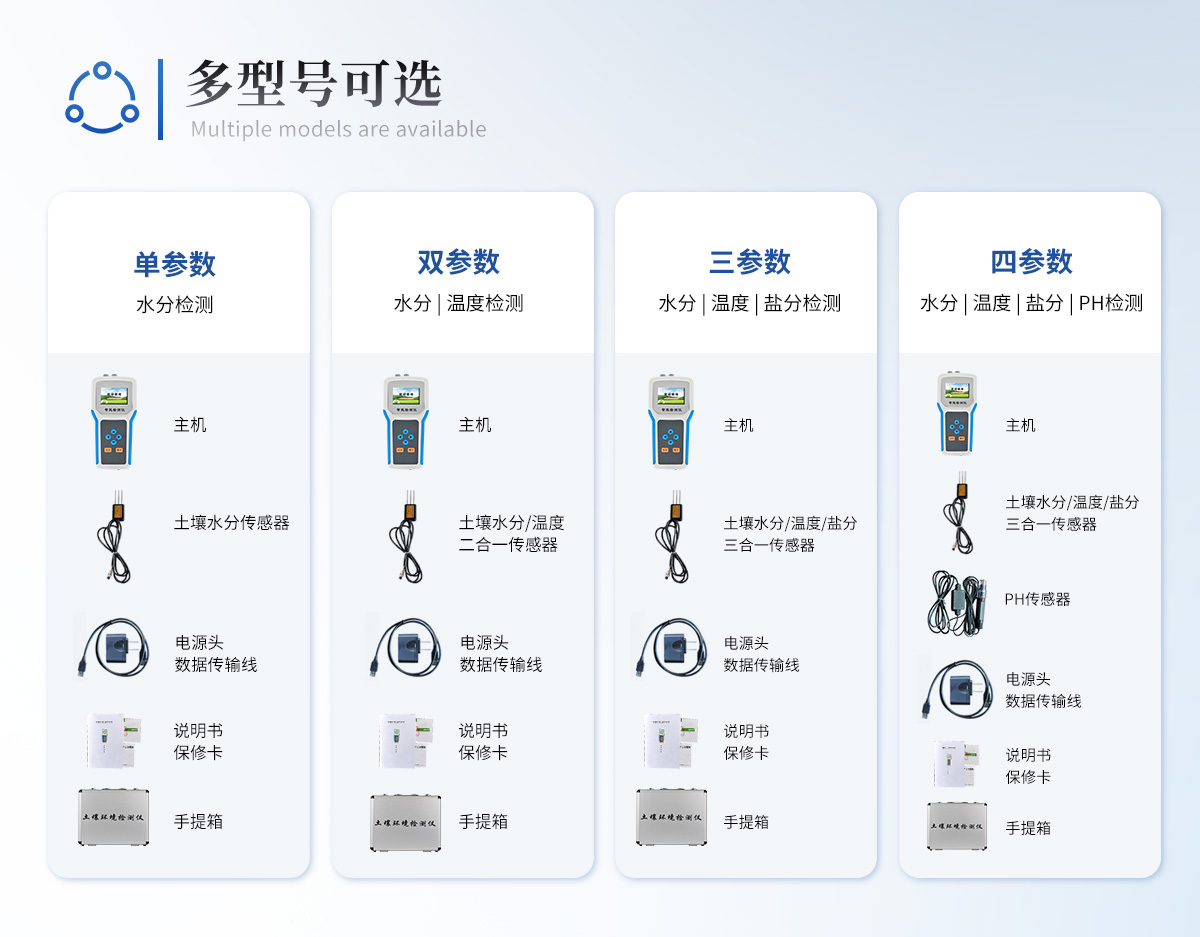

After the sensor is inserted into the host, the host has automatic recognition function, good sensor consistency, and can combine sensors according to needs. Sensor interfaces with different parameters can be converted to each other, without affecting measurement accuracy.

The instrument has a multi-channel automatic detection extension function, which can achieve synchronous detection of multiple sensors connected simultaneously.

The upper computer software has powerful functions and can export the recorded data to the computer at any time through a USB interface, and can be stored as an Excel spreadsheet file to generate data curves for further data processing by other analysis software. It has the function of setting color for exceeding limit areas and providing color warning for exceeding limit data, which can serve as a basis for environmental evaluation.

Widely used in the detection of soil acidity and alkalinity, water-saving irrigation in dryland, precision agriculture, forestry, geological exploration, plant cultivation, water conservancy, environmental protection and other fields.
