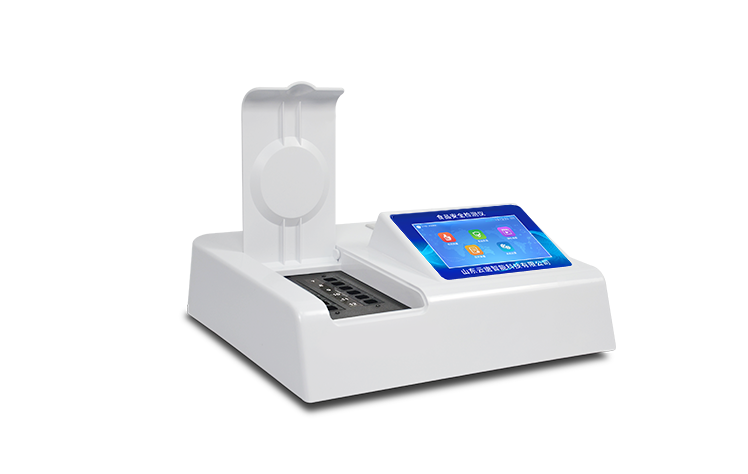

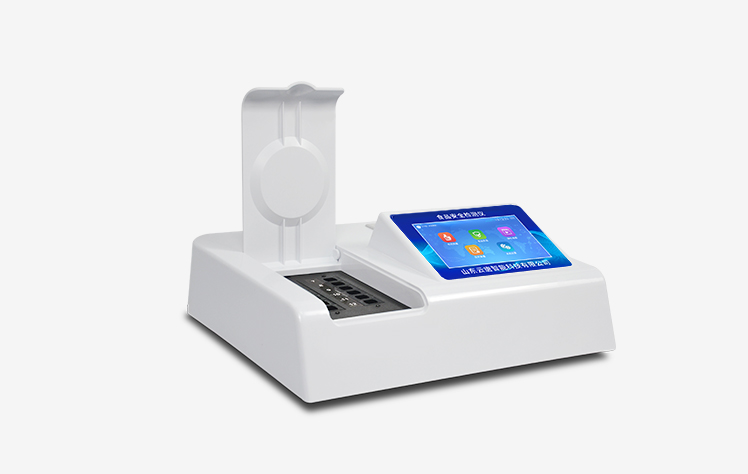

Food pigment rapid detection instrument

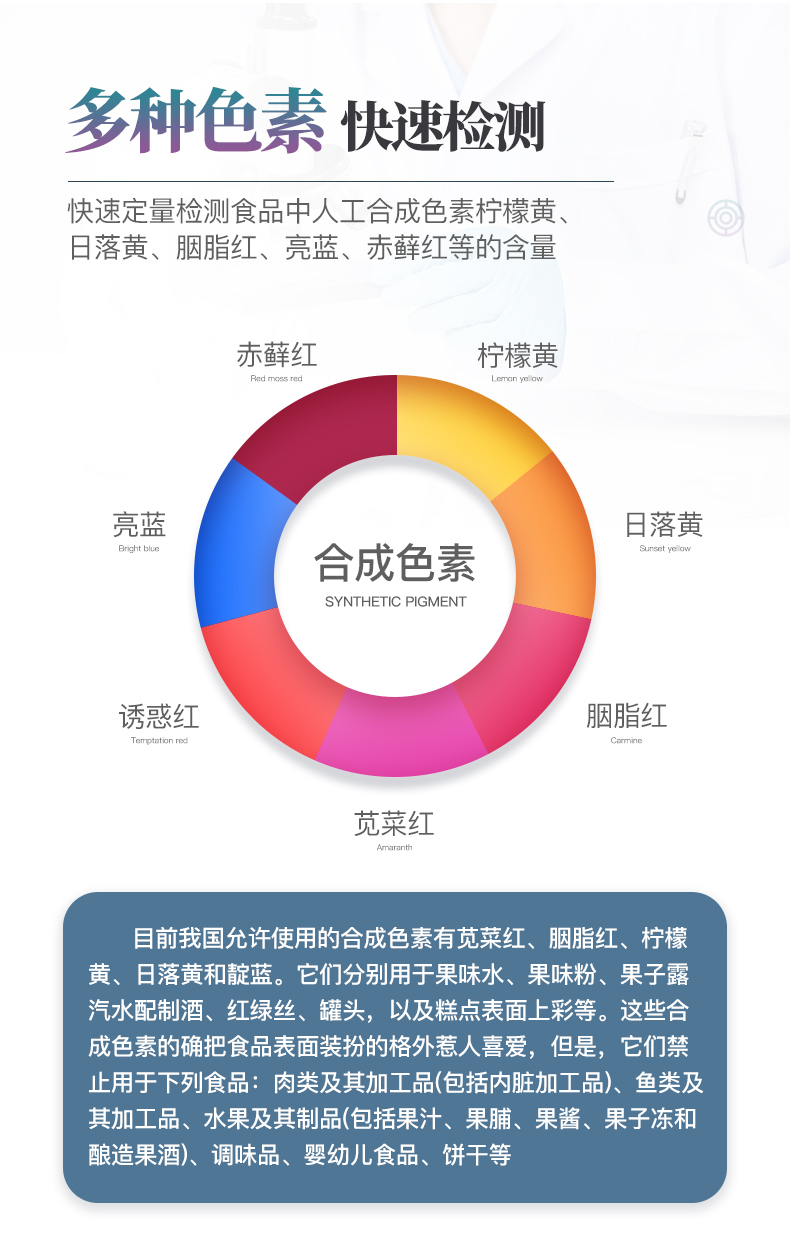

The pigment detector can quickly and quantitatively detect the content of artificially synthesized pigments such as lemon yellow, sunset yellow, carmine red, amaranth red, allure red, bright blue, and erythrin in food.

At present, the synthetic pigments allowed to be used in China include amaranth, carmine, lemon yellow, sunset yellow, and indigo. They are respectively used for fruit flavored water, fruit flavored powder, fruit dew, soda, prepared wine, red and green silk, canned food, and surface coloring of pastries. These synthetic pigments do make the surface of food look particularly appealing, but they are prohibited from being used in the following foods: meat and its processed products (including visceral processed products), fish and its processed products, fruits and their products (including juice, preserved fruits, jam, jelly, and brewed fruit wine), seasonings, baby food, biscuits, etc.

Technical parameters of synthetic pigment detector:

☆ Accuracy error: ± 3%

☆ Linear error: ± 5 ‰

☆ Stability: ± 0.001 A/hr

☆ Wavelength accuracy:<2.0nm

☆ Transmission specific gravity renaturation: ± 1%

☆ Lower limit of synthetic pigment detector: 1.0mg/kg (lemon yellow, sunset yellow, carmine red, amaranth red, allure red) 0.2 mg/kg (bright blue)

☆ Measurement range: 1.0~80.0mg/kg (lemon yellow, sunset yellow, carmine red, amaranth red, allure red) 0.20~20.0 mg/kg (bright blue)

☆ Data storage of 80,00 pieces

☆ Colorimeter: 10 × 10mm standard sample cell

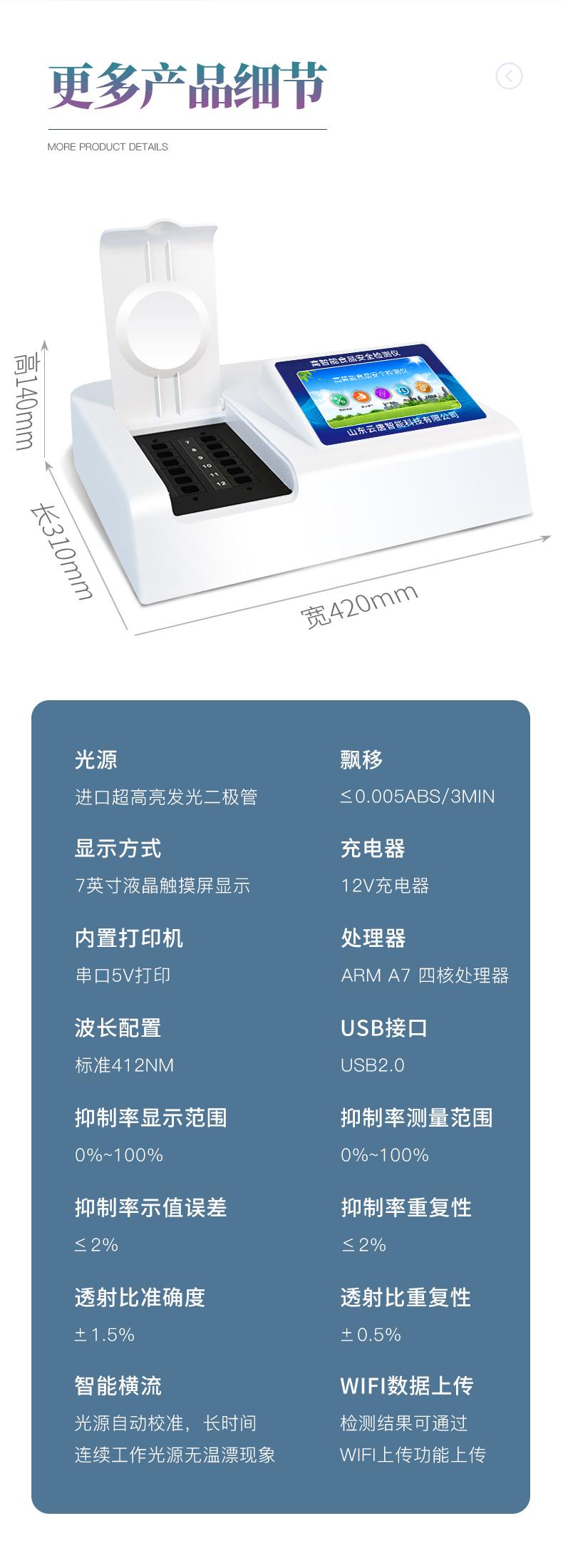

☆ Appearance size: 415X310X150 (mm)

☆ Weight: 3.6kg

Function Introduction:

1. The Android intelligent operating system adopts more efficient and user-friendly operation. The instrument has network cable connection, WiFi networking upload, 4G wireless remote transmission function, and can quickly upload data.

2. High degree of intelligence, the instrument has self checking function: it has power on self checking and zero setting functions, and has automatic detection of repeatability.

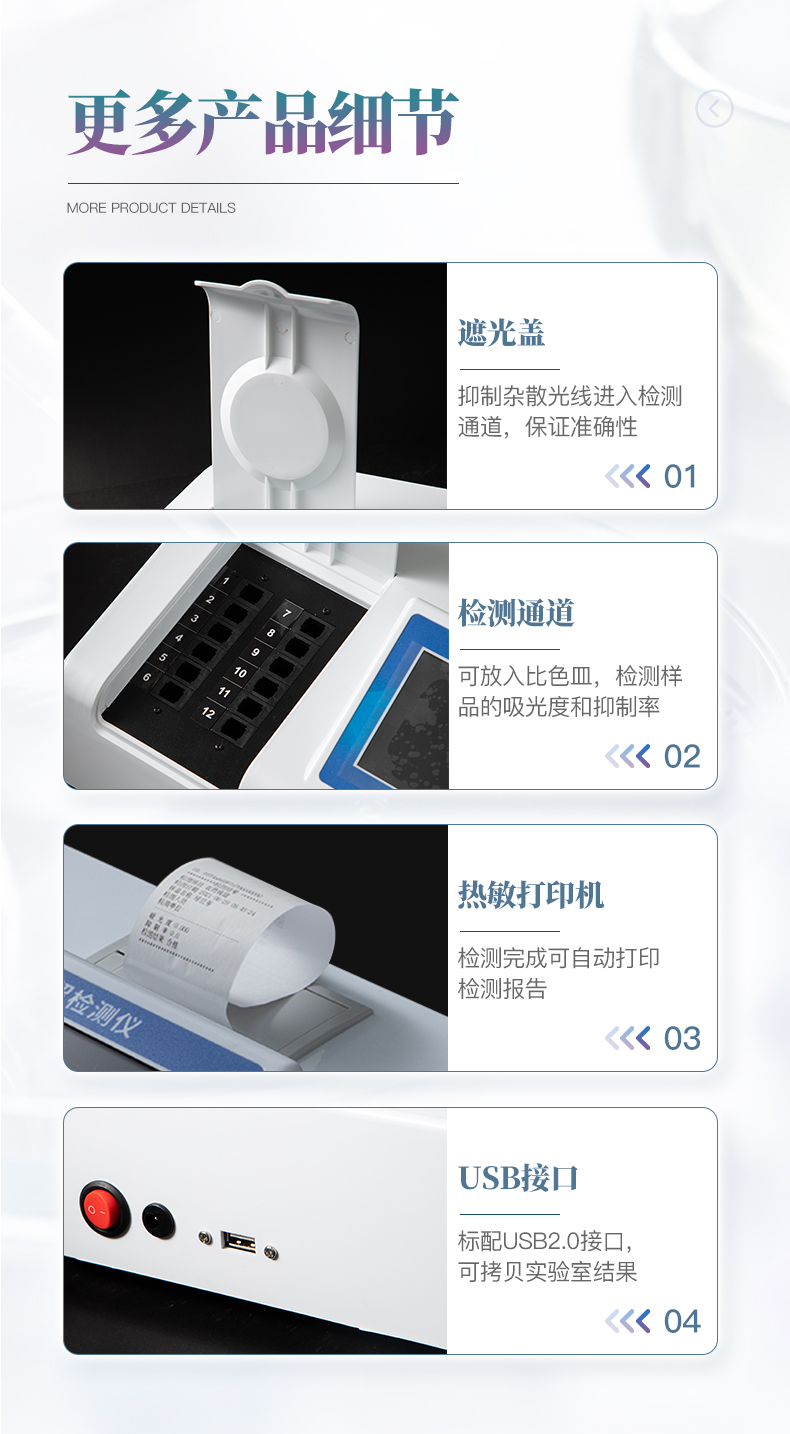

3. Equipped with a new generation of embedded thermal printer, you can choose to print manually or automatically. After the detection is completed, you can automatically print the detection report and QR code.

4. The light source adopts imported ultra-high brightness light-emitting diodes, which have high accuracy, strong stability, controllable light source, and can turn off unused light sources, resulting in lower power consumption.

5. Adopting USB2.0 interface design, it is convenient for data storage and movement, and can be directly connected to a computer at any time, and can be used to control instruments by a computer. Implement data query, browsing, analysis, statistics, printing, etc.

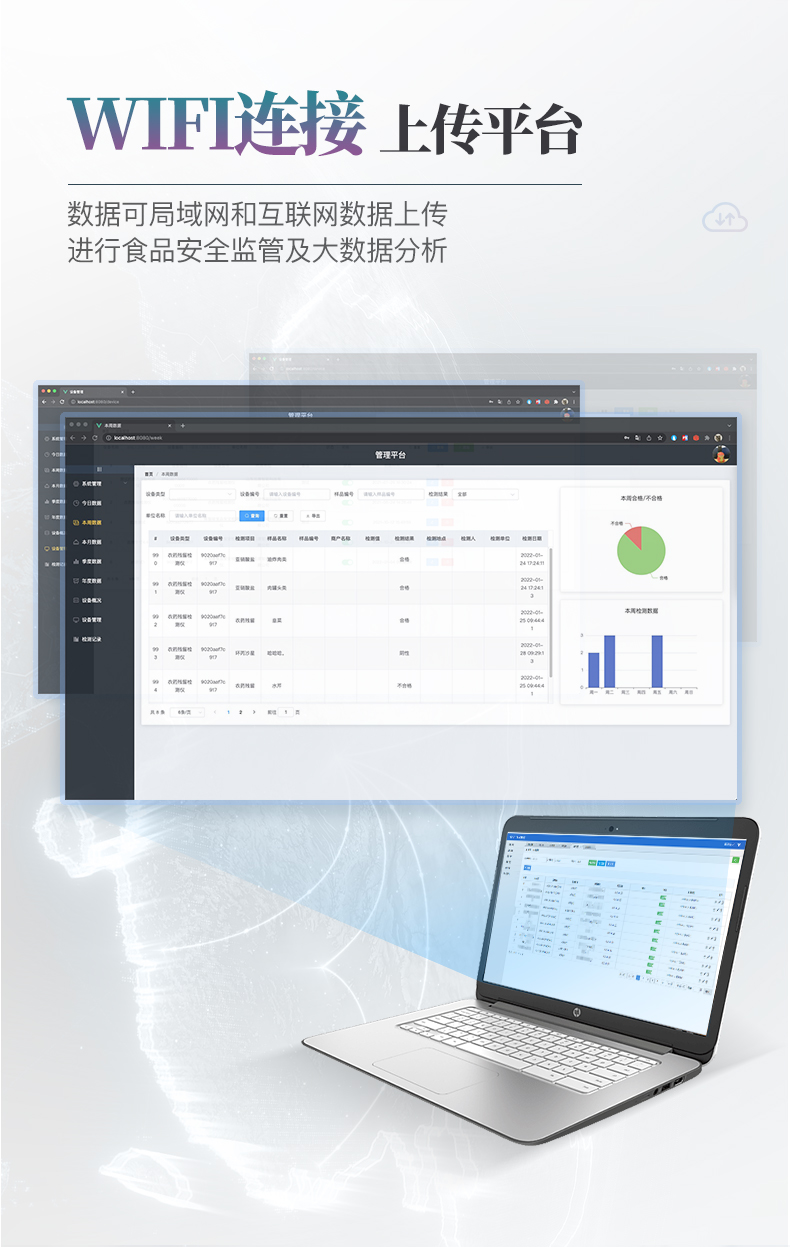

6. The instrument comes with a regulatory platform. The data can be uploaded on both local area networks and the internet, and the test results can be directly transmitted to the food safety supervision platform. Conduct regional food safety supervision and big data analysis and processing, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

7. An integrated portable rapid inspection device that meets the needs of on-site and mobile detection, can achieve the detection of all detection items under the same software, and can visually display the detection results through the same window.

8. The instrument has a menu library of multiple categories and types of samples, allowing for flexible selection of testing samples. Different testing channels can simultaneously test different sample items. You can also directly edit and input sample names, testing indicators, testing units, and other information on the instrument and save them in the sample database.

9. The sample processing is simple and labor-saving, and the overall operation is fast, safe, and convenient.

10. High sensitivity, high detection accuracy, high repeatability accuracy, scanning type high-precision optical sensor.

11. The instrument has functions of recalibration, locking, and restoring factory settings.

12. Support USB storage. The result judgment line can be modified, the calibration value of the reference value can be saved, and data will not be lost after power outage.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88GHz, faster operation speed, and stronger stability.

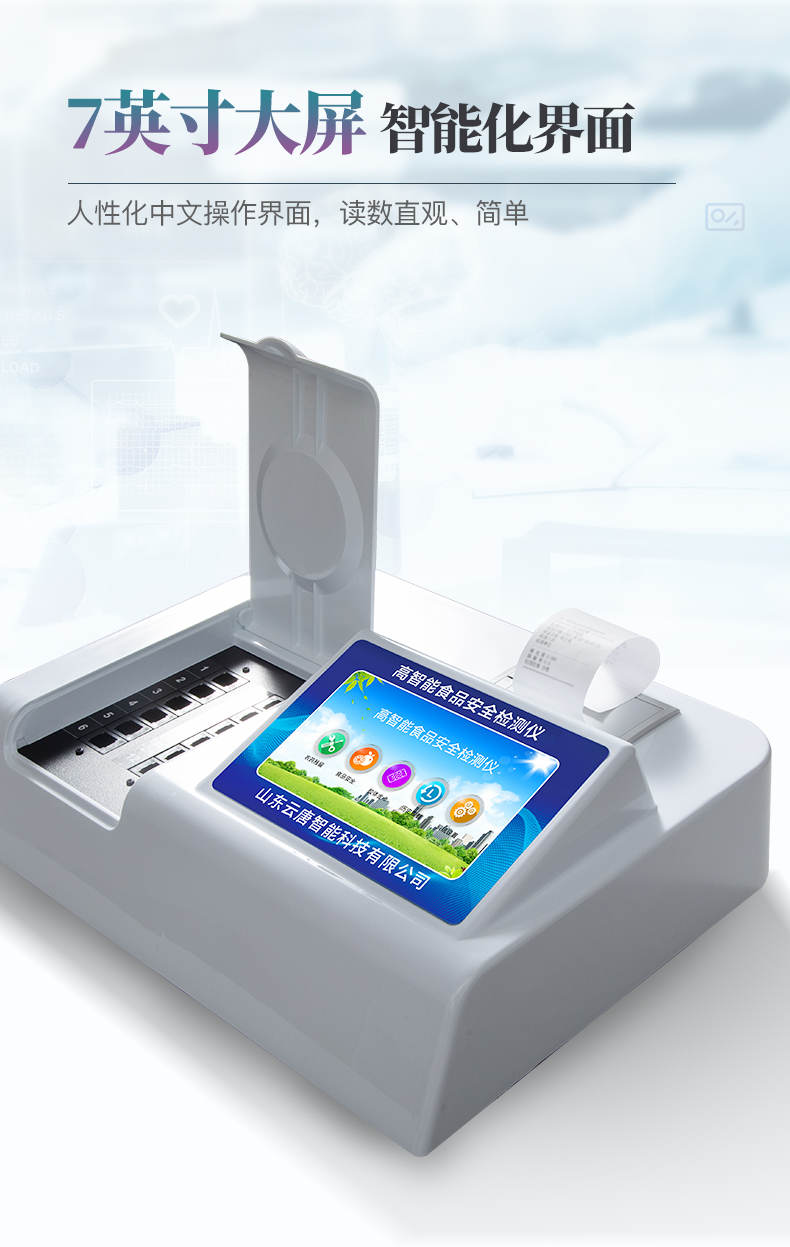

2. Display method: 7-inch color touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

3. DC 12V power supply, can be connected to car power supply, and can be equipped with a 6Ah large capacity rechargeable lithium battery, convenient for outdoor flow testing.

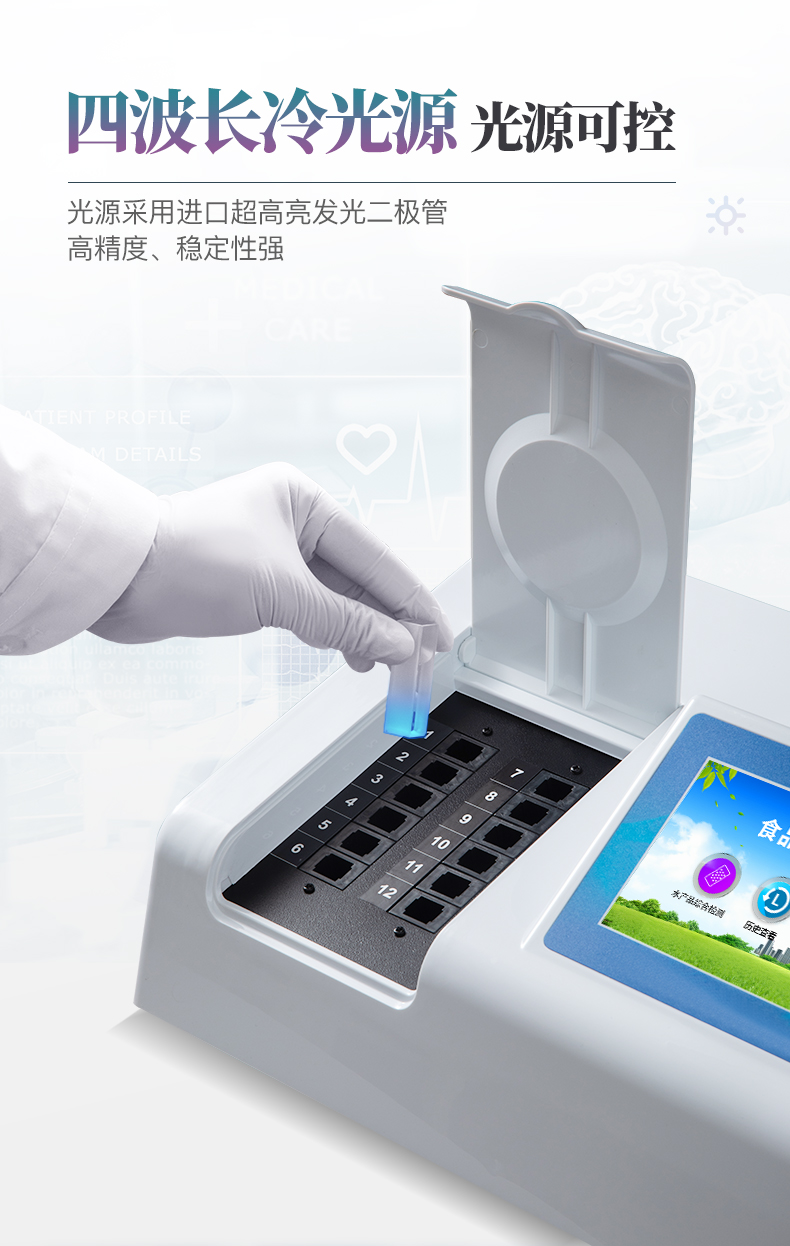

4. Four wavelength cold light source with ≥ 12 detection channels, each equipped with 410, 520, 590, and 630nm wavelength light sources, equipped with advanced optical path switching devices as standard. The patented optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

5. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current and voltage regulation, automatic calibration of light intensity, long-term continuous operation of the light source without temperature drift phenomenon..

7. Built-in new national limit standards, on-site comparison with measured results, and continuous updating of standards.

8. Continuous injection and detection

9. Sample numbers are automatically accumulated.

10. The detection items can be expanded.

11. The test results are in an Excel spreadsheet, which can be copied by connecting to a computer.

12. Storage capacity of 200000 test results

13. Standard USB interface, driver free installation.

14. Configurable large capacity lithium battery, firmware upgradable
