Heavy metal detector

Product Introduction:

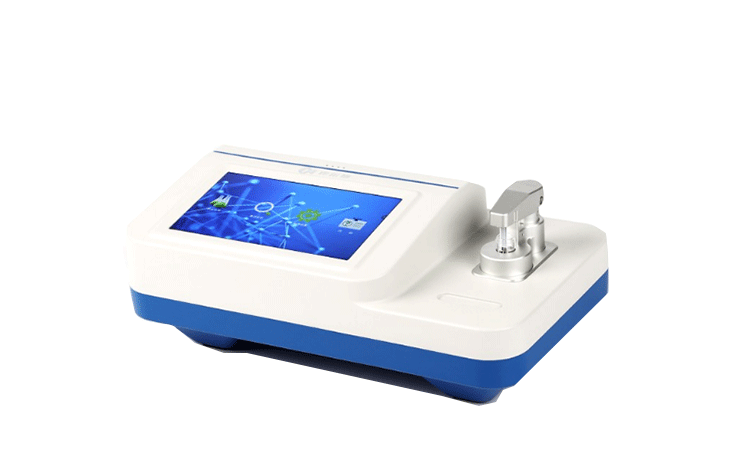

The YT-FZ01 grain heavy metal rapid detection instrument uses a room temperature extraction method, which does not require dangerous operations such as high temperature and high pressure, nor complex operations such as filtering. The time from pre-treatment to detection of a single sample is ≤ 20 minutes. Avoiding the need for heating, sample digestion, cooling, and sample tank cleaning and volume setting in traditional heavy metal detection pre-treatment processes, saving a lot of time.

Application field:

The Public Security Food and Drug Environmental Crime Investigation Department, the Market Supervision Administration Grassroots Supervision Station, the Agriculture Bureau Grassroots Supervision Station, the Food Production Enterprise Testing Department, and the Food Distribution Enterprise Testing Department.

Product features:

1. The test results have a low detection limit and high accuracy, meeting the testing requirements of the food industry;

2. Fast sample testing speed, single sample testing only takes 20 minutes (including 15 minutes of pre-treatment);

3. Portable design, easy to carry, no need for external power supply, can be used for fast food on-site testing;

4. Easy to operate and low in cost;

5. Widely applicable, it is also suitable for on-site or laboratory rapid analysis of heavy metals in agricultural products, aquatic products, and processed foods.

Performance parameters:

1. The Android intelligent operating system allows instruments to be connected via WiFi and upload data to the cloud platform;

2. 10 inch high-definition color touch screen, full touch screen operation, simple software operation interface, convenient to use;

3. The instrument has its own protection function, which can be set with a username and password to prevent non staff operations;

4. The instrument is equipped with built-in operation manual documents and operation videos, making it easier to use and detect without professional training. It is suitable for on-site testing by non professional personnel;

5. The instrument is equipped with a national standard limited edition standard document, which can be opened for learning and viewing from within the instrument;

6. The instrument has data analysis function, which can filter the qualification rate of detection data within a certain period and represent it through a bar chart;

7. Built in USB interface, can export table documents, convenient for statistical analysis;

8. The instrument has a built-in printer that can print information such as the name of the testing project, project type, testing results, testing personnel, testing unit, testing personnel, and limit standards;

9. Equipped with built-in lithium battery power supply, it can be used for both AC and DC, and can be used for more than 4 hours without power. It is suitable for the environmental conditions of portable procurement sites and ensures the accuracy and stability of test results;

10. The pre-treatment time for small batch samples should not exceed 20 minutes, and the pre-treatment process does not require strong acid or heating digestion;

11. Test time: Screening, single element ≤ 4 minutes; Accurate quantification, single element ≤ 9 minutes. Lead and cadmium can be detected simultaneously;

12. The instrument uses screen printed electrodes, eliminating the need for professional and complex pre-treatment processes such as polishing and maintenance;

13. Instrument working voltage: 29V, working current: ＜ 800mA;

14. Whole machine weight: ≤ 3Kg;
