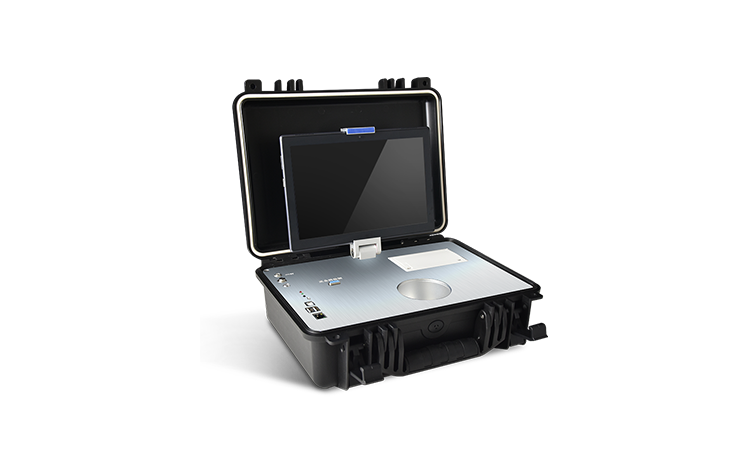

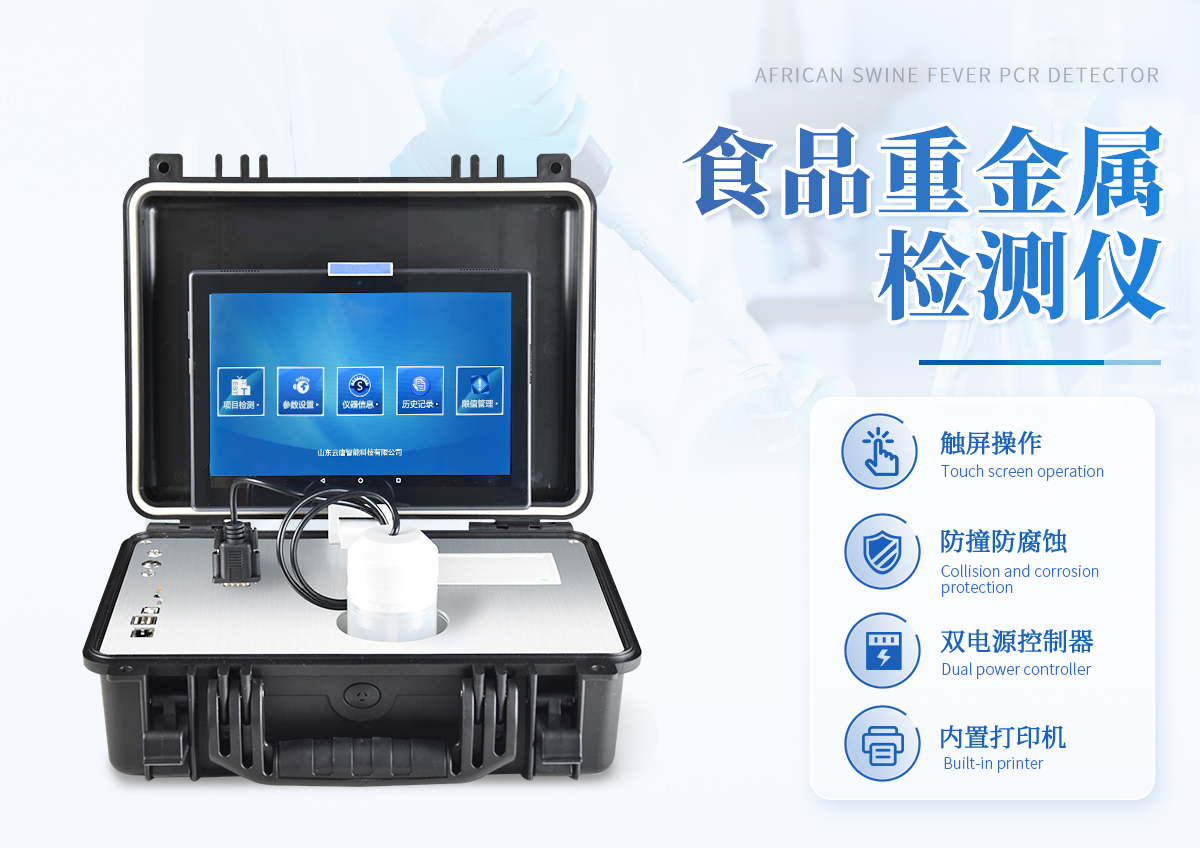

Voltammetric heavy metal detector

Test items:

It can quickly detect heavy metals such as lead, cadmium, copper, zinc, mercury, arsenic, etc.

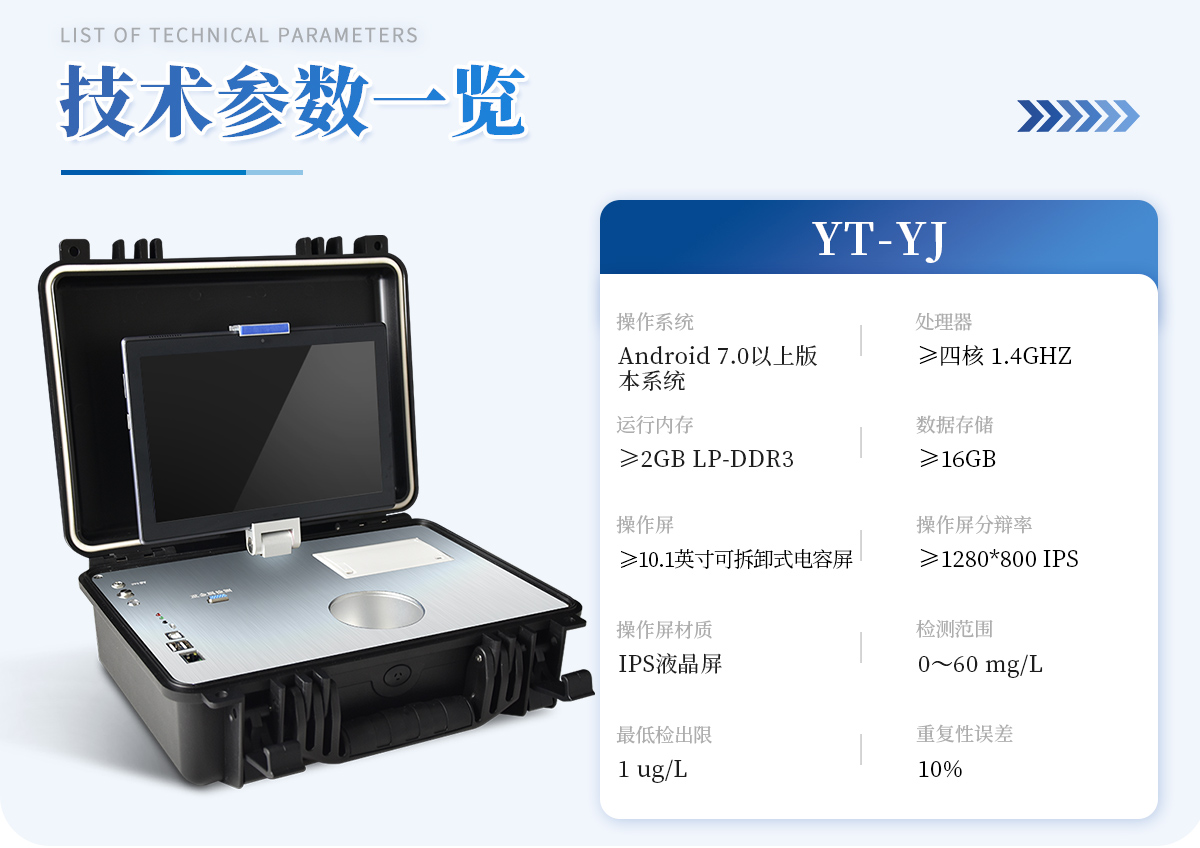

Technical parameters:

1. Basic Overview: Portable box integrated machine, designed with waterproof, compressive, impact resistant, and corrosion-resistant box, meets the needs of in vehicle environments, power free environments, and outdoor testing;

2. Host: Equipped with detection function, auxiliary function, management system software, and information management function, achieving bidirectional data transmission through information technology. It can directly receive tasks issued by the management center and report detection results in real-time to the management platform;

★ 3. Detection technology: Adopting anodic stripping voltammetry detection technology;

4. Operating system: Android version 7.0 or above system;

5. Processor: ≥ quad core 1.4GHz;

6. Running memory: ≥ 2GB LP-DDR3;

7. Data storage: ≥ 16GB;

8. Communication interface: includes two USB interfaces, Ethernet interface, WIFI, Bluetooth, 4G module, built-in GPS interface, used for outdoor or other mobile detection and positioning;

9. Indicator light: Equipped with a thermal printer working indicator light to indicate the printer's working status; Equipped with a power charging indicator light to indicate the charging status of the instrument; Equipped with a wireless Bluetooth docking status indicator light, used to indicate the connection status between the operating platform and the instrument host; Equipped with instrument working status indicator light, used to indicate whether the instrument host is in working status;

10. Operation screen: ≥ 10.1-inch detachable capacitive screen design, the operation screen can be fixed on the instrument or taken out for separate operation to achieve distance control;

11. Operation screen resolution: ≥ 1280 * 800 IPS;

12. Operation screen material: IPS LCD screen;

13. Input method: capacitive screen, touch input, support for multi touch;

14. Using mercury free electrodes, safe and non-toxic;

★ 15. The module comes with a stirring function, which can automatically stir the solution after startup.

16. Detection range: 0-60 mg/L, minimum detection limit: 1 ug/L;

17. Repeatability error: 10%;

★ 18. With automatic peak finding function, calculate the optimal sample data;

★ 19. Built in linear scanning, conventional pulse scanning, and differential pulse scanning;

20. On site evidence collection function of the instrument: The instrument has a high-definition camera with over 8 million anti shake and automatic focus, which can take on-site photos of the tested samples for evidence collection;

21. Power controller: dual power controller, saving power;

22. Journey control: Supports wireless Bluetooth control instrument detection within 20 meters, making it convenient for users to complete project detection even when they are not around the instrument;

23. Printing: Equipped with a miniature thermal printer, it can print detection results at any time;

24. Battery: Equipped with a large capacity rechargeable lithium battery, it can work continuously for more than 5 hours;

25. Box: Portable integrated carrying case, the box can be waterproof and pressure resistant, with a total weight of less than 5kg, making it easy to carry;
