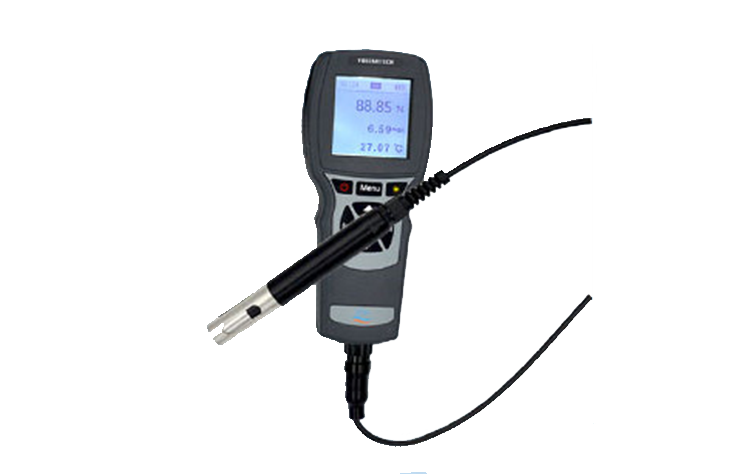

Fluorescence dissolved oxygen analyzer

Instrument Overview:

The dissolved oxygen sensor included in the product adopts internationally leading fluorescence lifetime technology, which is based on the quenching principle of active fluorescence by specific substances in physics. The significant advantage of this fluorescence method for measuring dissolved oxygen is that it does not consume oxygen during the measurement process and therefore has no flow rate restrictions. At the same time, it does not require preheating or electrolyte, and is free from maintenance and frequent calibration. The response time of the Hengmei optical dissolved oxygen probe is as low as 30 seconds, making dissolved oxygen measurement more accurate, stable, rapid, and convenient.

Equipped with backlight display and operation keyboard, it has comprehensive functions and simple operation, with a simple interface. The dissolved oxygen optical sensor automatically recognizes, reads and stores measurement data, calibrates sensors, and other functions. It can also export USB data to achieve more high-end functions. Our consistent pursuit is to pursue high cost-effectiveness.

Technical parameters:

Optical dissolved oxygen sensor:

1. Component Description: Fully Immersed Probe

2 Probe size: Φ sixteen × 180mm

3 Probe weight: 51g

4 probe cable length: 5m, in addition, customers can choose cables of 10m, 15m, and 30m

5. Minimum bending radius of cables: 15mm

6 sensor interfaces: Supports RS-485 and MODBUS protocols

Measurement range: 0-20mg/L or 0-200% air Sat

Measurement accuracy: 0-200%: ± 1%

9 Response time: 30s

10 Sensor drift:<1% per year

11 Temperature accuracy: ± 0.2 ℃

12 Working temperature range: 0-50 ℃

13 Storage temperature range: -40~85 ℃

14 Calibration: One or two point calibration

Lifespan of 15 fluorescent caps: guaranteed to be used for one year (under normal use)

Handheld instrument:

1 Size: 220 x 96 x 44mm

2 Weight: 460g

3 power sources: 2 18650 rechargeable batteries

4. Working temperature range: 0-50 ℃

Storage temperature range: -40~85 ℃

6 Display: 54.38 x 54.38 LCD with backlight

7 Data Storage: Support

8 Air pressure compensation: Built in instrument, automatic compensation of 50-115kPa

9. Protection level: IP67

10 timed shutdown: supported

Configuration:

Handheld instrument: 1 unit

Optical electrode: 1, 5m, cable length optional

18650 rechargeable batteries: 2 units, 3.7V

USB connection cable: 1, Micro USB

Wrist strap: 1 piece

Screwdriver: 1, used to open the battery cover

O-ring: 1, fluorescent cap sealing spare part

Sponge: 2, fluorescent cap moisturizing

Rubber sleeve: 1, fluorescent cap for storage
