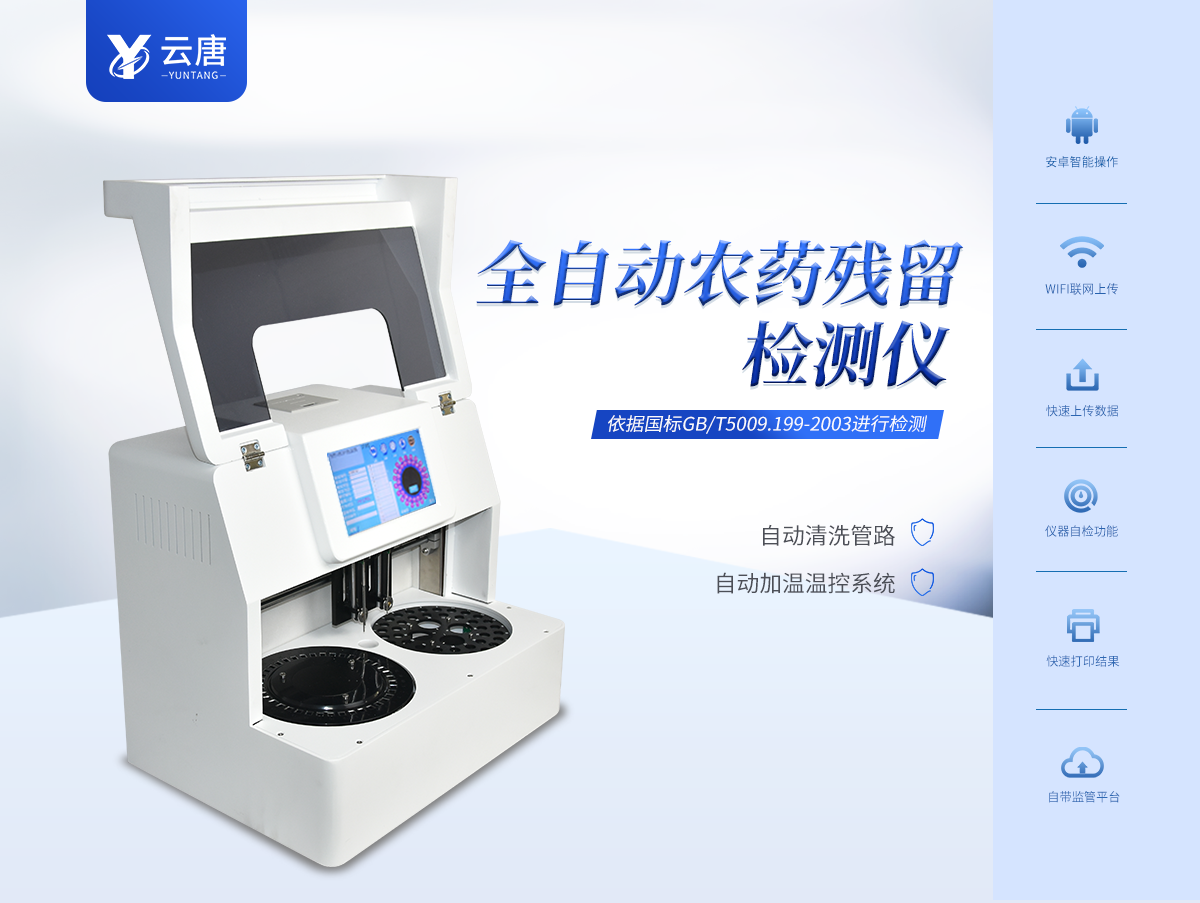

Fully automatic pesticide residue detector

Instrument Overview:

The fully automatic pesticide residue detector is mainly used for quantitative analysis of pesticide residues in samples such as vegetables and fruits. The detection system mainly includes functional modules such as project parameters, reagent location, instrument calibration, setting, sample information, result query, initialization, and overall cleaning. It has the characteristics of moderate analysis speed, no cross contamination, few consumables, and open reagents.

It can be widely used for pesticide residue detection in vegetables and fruits in departments such as product quality supervision and inspection, hygiene and epidemic prevention, environmental protection, business management, vegetable wholesale markets, vegetable production bases, supermarkets, shopping malls, pesticide residue monitoring systems, etc.

Basic Principles:

The fully automatic pesticide residue detector is developed using the principles of enzyme inhibition and photoelectric colorimetry. Under certain conditions, organophosphorus and carbamate pesticides have inhibitory effects on the normal function of cholinesterase, and their inhibition rate is positively correlated with the concentration of pesticides. When a certain amount of organophosphorus pesticides or carbamate pesticides are present in the sample extraction solution, enzyme activity is inhibited and absorbance increases. Based on this rate of change, the residual amount of pesticides in the sample can be determined.

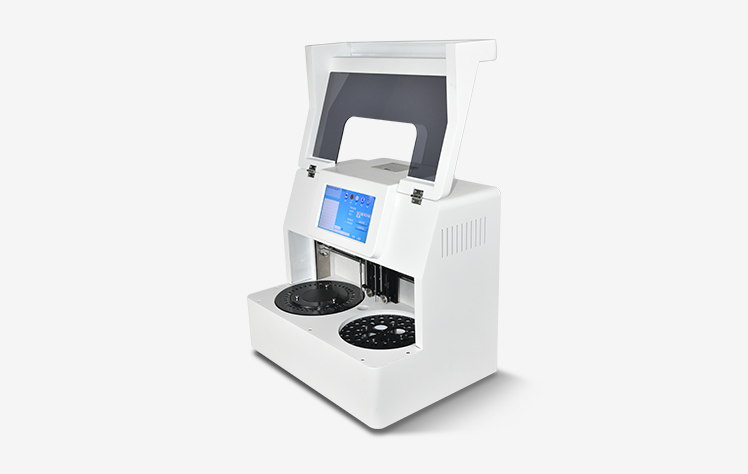

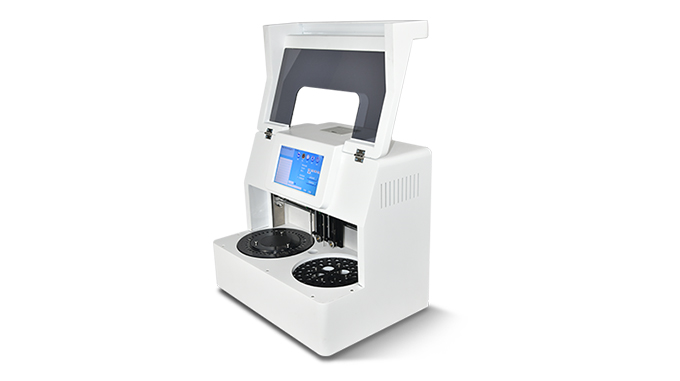

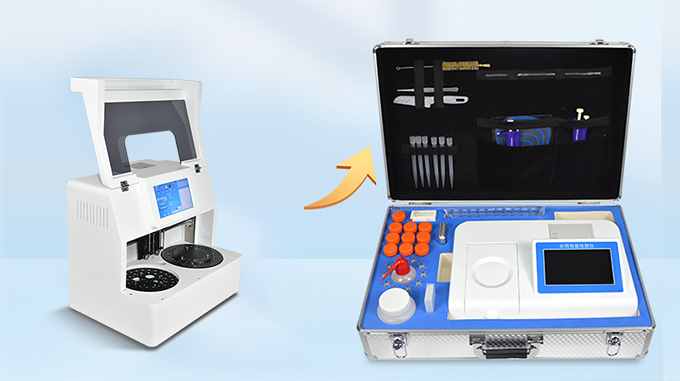

Instrument structure composition

The main structural components of the instrument host are:

Display screen: 7-inch touchable display screen

Detection disk: 40 channel detection disk, with a colorimetric cell capacity of 500uL. The detection disk has a 37 ℃ constant temperature system

Printer: Thermal printer

Sampling system: composed of motion motor and pipeline, etc

Function Introduction:

1. Humanized interface, easy to operate

2. Automatic blank calibration.

3. Sampling probe liquid level sensing to avoid cross contamination.

4. The colorimetric dish is automatically cleaned and can be reused

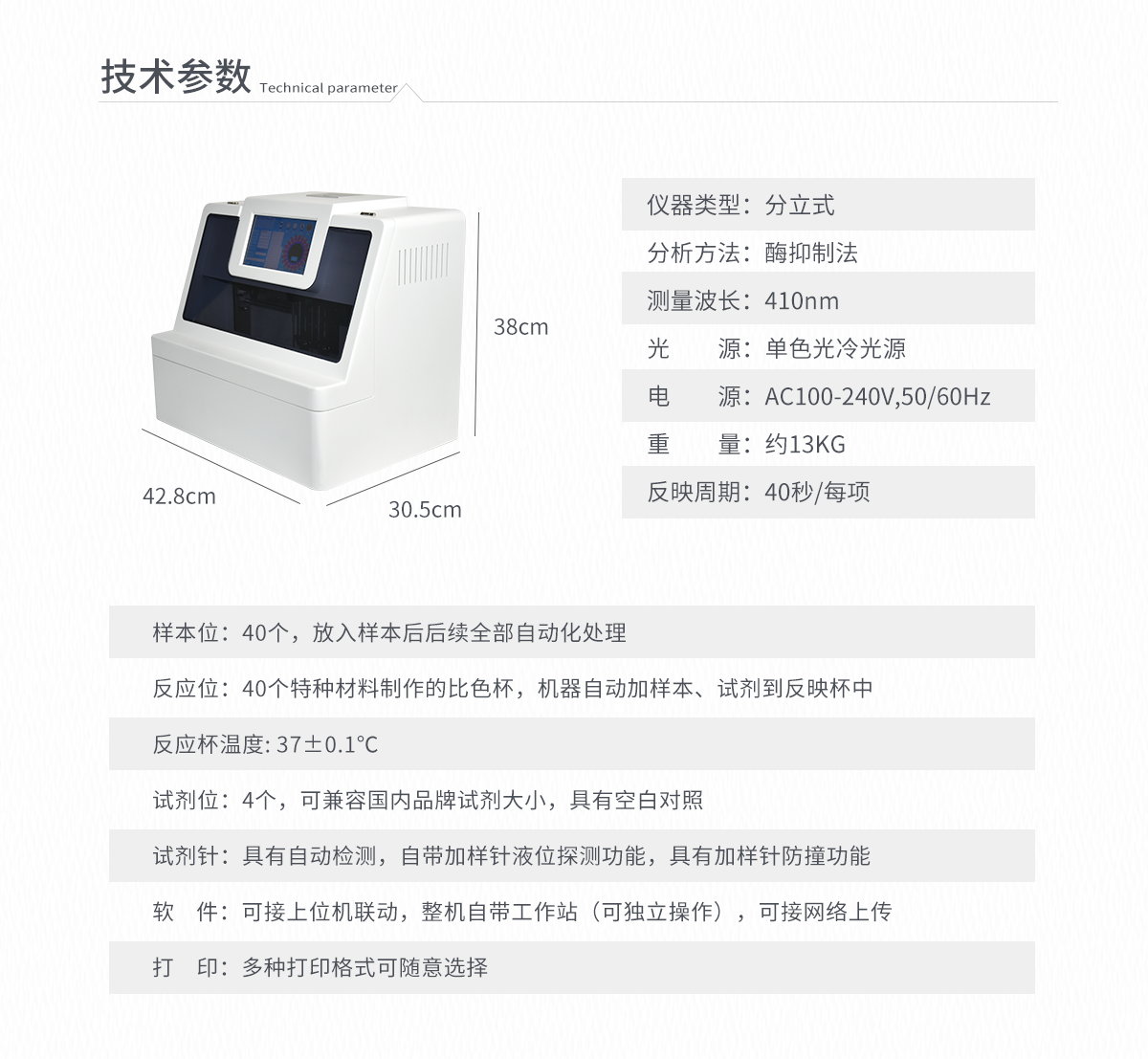

Technical parameter table

Instrument type: split type

Analysis method: Enzyme inhibition method

Measurement wavelength: 410nm

Light source: monochromatic light cooling light source

Sample size: 40, all subsequent automated processing after sample placement.

Reaction position: 40 colorimetric cups made of special materials, and the machine automatically adds samples and reagents to the reaction cup.

Reaction cup temperature: 37 ± 0.1 ℃, the machine has a constant temperature function.

Reflection period: 42 seconds per item

Reagent positions: 4, compatible with domestic brand reagent sizes, reagent automatic addition.

Reagent probe: With liquid level detection and collision prevention safety protection function

Software: can connect to the upper computer for linkage, the entire machine comes with a workstation (which can be operated independently), and can be uploaded through the network

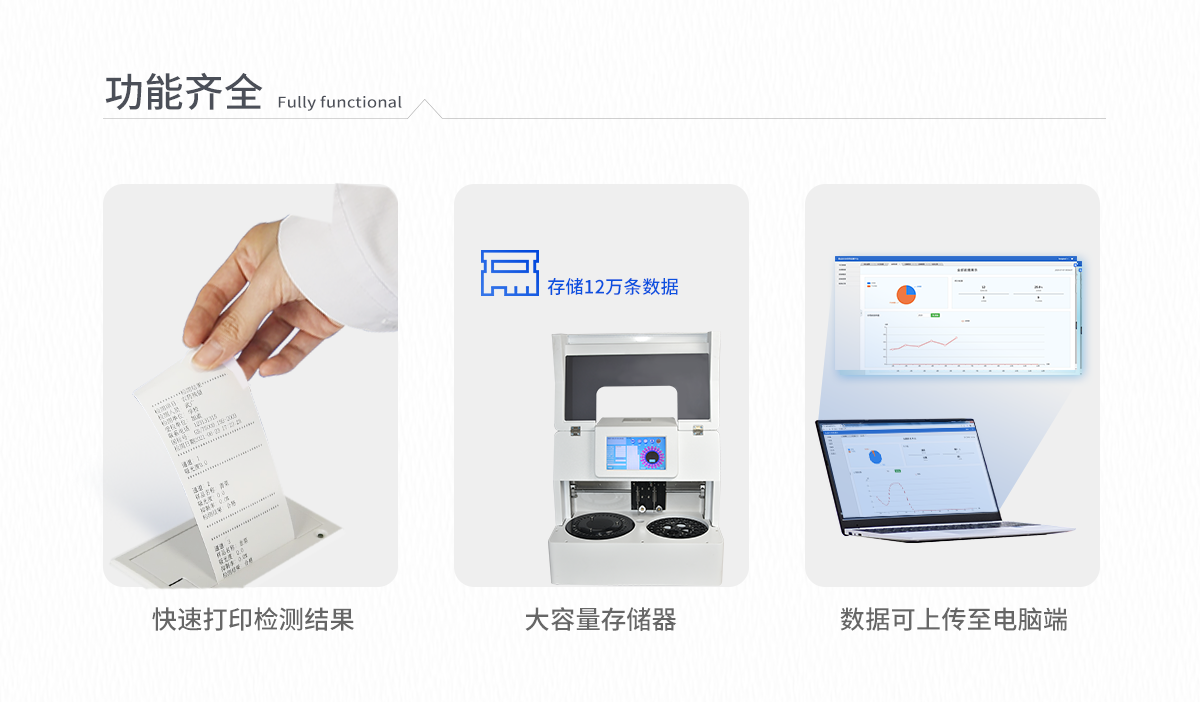

Printing: Multiple printing formats can be freely selected, and the machine has a built-in thermal printer.

Power supply: AC 220V, 50Hz, 102W

Weight: approximately 13KG

Volume: 428mm * 305mm * 380m

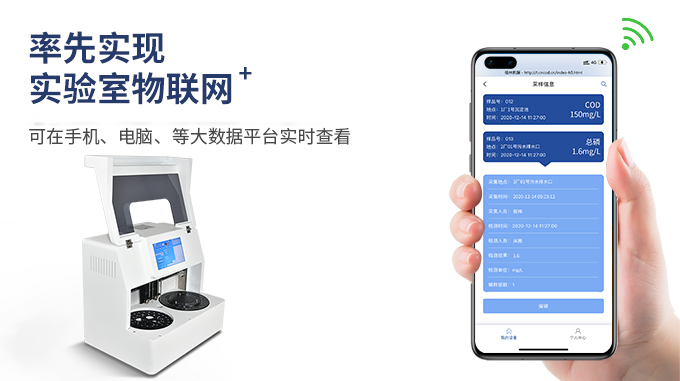

Software: Can generate upload files: Upload the selected sample test results to the save path. It can interface with local food and drug regulatory platforms and upload data in real-time.

Software backend: With internet backend expansion function and large screen display function, it is convenient for government units to conduct statistical supervision
