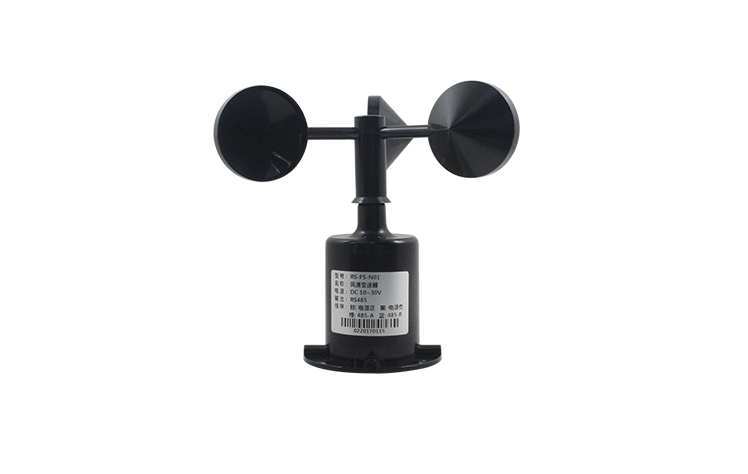

Wind speed sensor

1.1 Product Overview：

The wind speed transmitter has a compact and lightweight appearance, which is easy to carry and assemble. The three cup design concept can effectively obtain wind speed information. The shell is made of polycarbonate composite material, which has good anti-corrosion and anti-corrosion characteristics, ensuring that the transmitter is free of rust and chisel phenomenon during long-term use. At the same time, combined with a smooth internal bearing system, it ensures the accuracy of information collection. It is widely used for wind speed measurement in environments such as greenhouses, environmental protection, meteorological stations, ships, docks, and aquaculture.

1.2 Functional characteristics：

Range: 0-60m/s, resolution 0.1m/s

N Anti electromagnetic interference processing

The bottom outlet method is adopted to completely eliminate the aging problem of aviation plug rubber pads, and it is still waterproof after long-term use

N adopts high-performance imported bearings, with low rotational resistance and accurate measurement

The polycarbonate shell has high mechanical strength, high hardness, corrosion resistance, and rust resistance, making it suitable for long-term outdoor use

The structure and weight of the equipment have been carefully designed and distributed, with small moment of inertia and sensitive response

N standard ModBus RTU communication protocol for easy access

1.3 Main technical indicators：

DC power supply (default) 10-30V DC

The working temperature of the transmitter circuit is -20 ℃~+60 ℃, with 0% RH~80% RH

Communication interface 485 communication (modbus) protocol

Baud rates: 2400, 4800 (default), 9600

Data bit length: 8 bits

Parity check method: None

Stop bit length: 1 bit

Default ModBus communication address: 1

Support function code: 03/04

Parameter settings are configured using the provided configuration software through the 485 interface

Resolution 0.1m/s

Measurement range 0~30m/s

Dynamic response time ≤ 0.5s

Starting wind speed ≤ 0.2m/s
