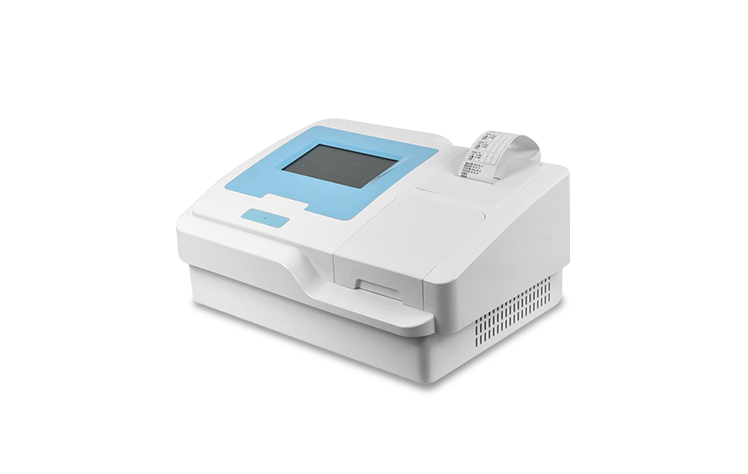

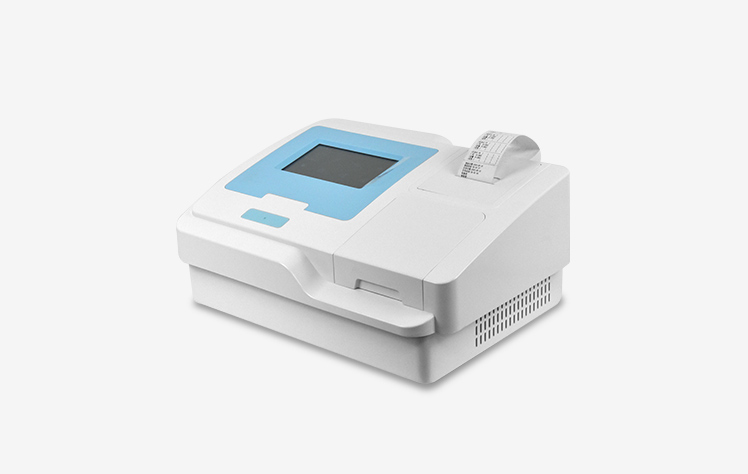

Microplate reader

Product Features

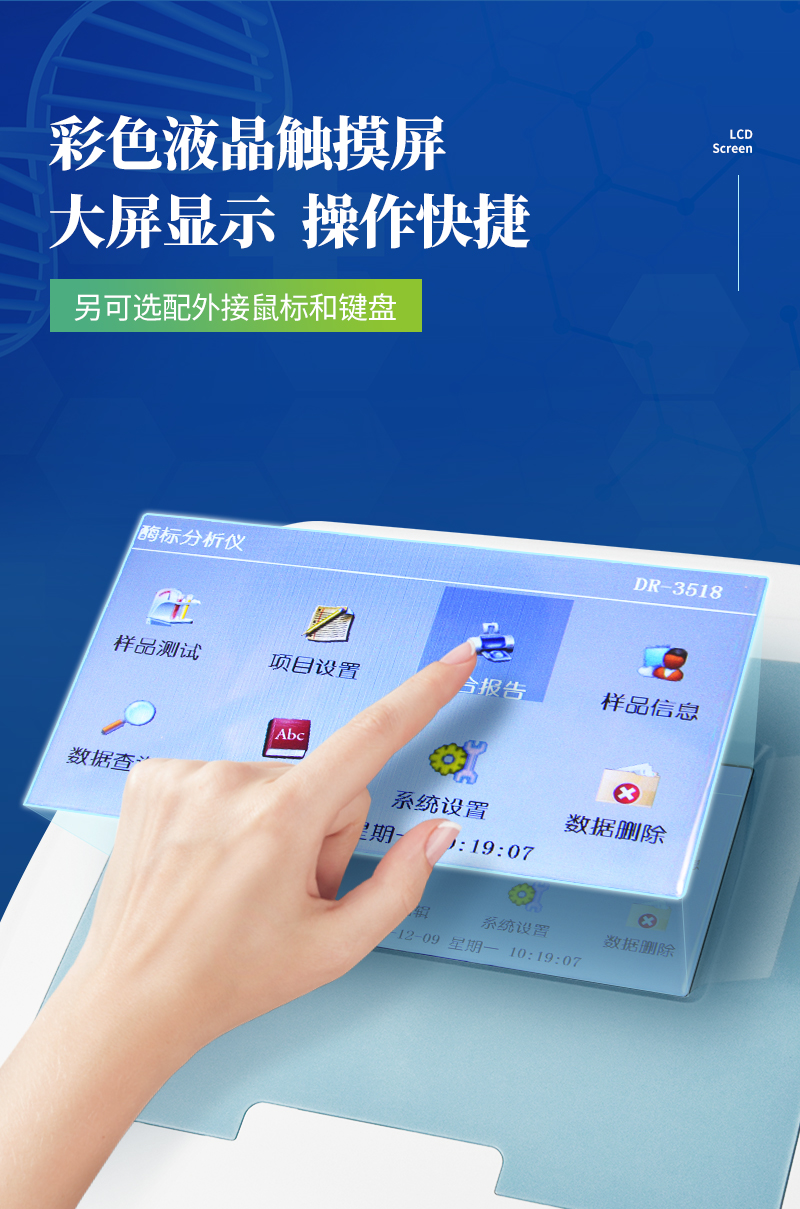

*10.4-inch color LCD touch screen input, large screen display, fast operation;

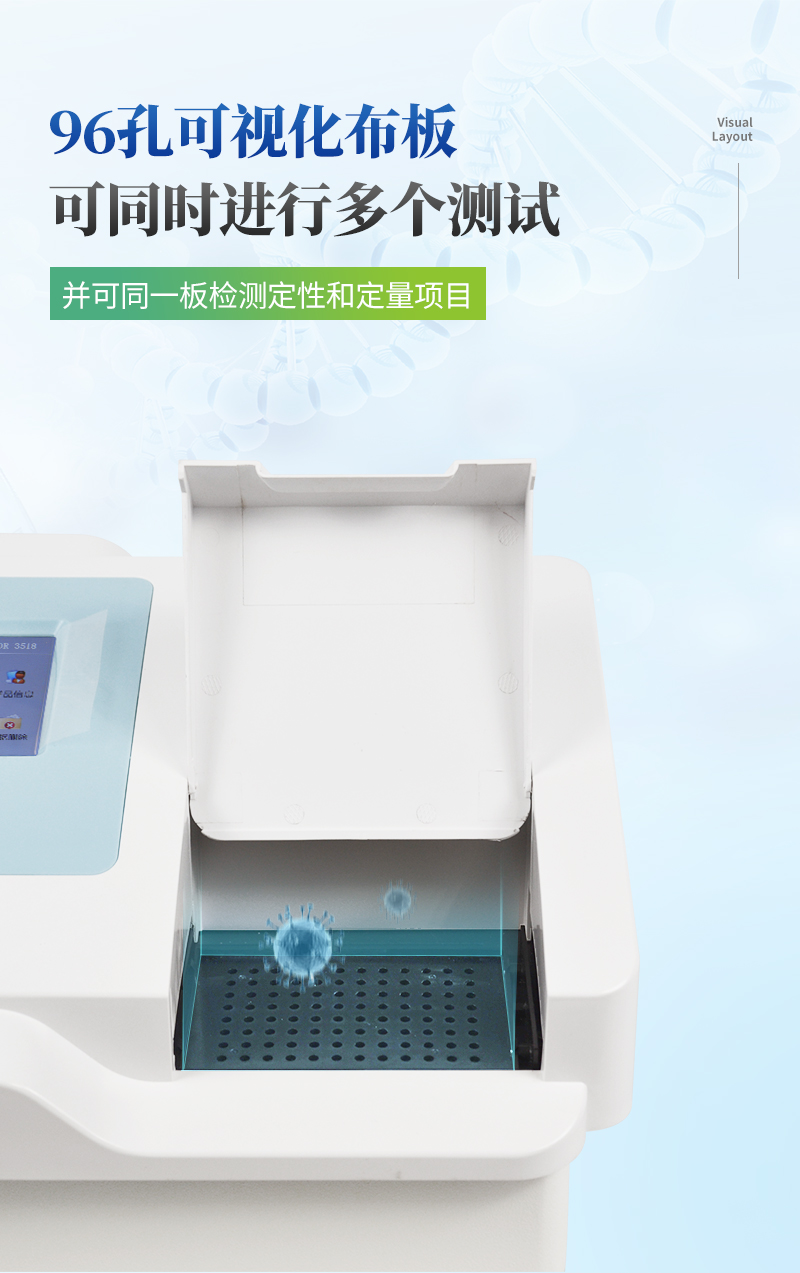

*Full screen display of 96 hole visual cloth board operation interface;

Automatically store standard curves, and users can modify them;

Built in embedded system, it can be operated, stored, and printed without the need for an external computer;

Automatic zero adjustment can be performed in both single wavelength and dual wavelength testing modes;

Optional external PC software, networked support, catering to the direction of digital development, customizable upload;

*Massive presence, capable of storing at least 1 million board (96) test data and 500 programming projects, and supporting data backup, recovery, and merging;

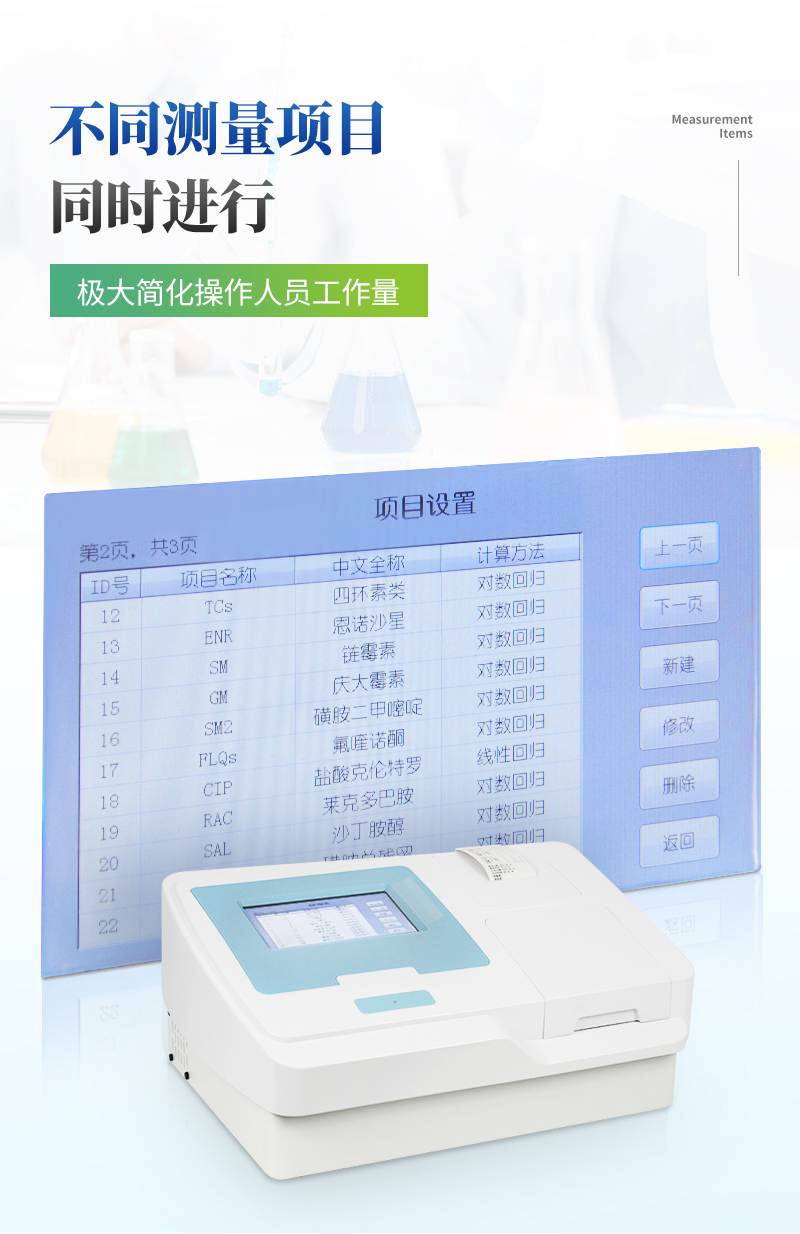

*24 different items can be tested on the same board and can be distinguished by display, and qualitative and quantitative items can be tested on the same board;

*Template function, fixed detection work, greatly simplifying the workload of operators;

Intelligent calculation of test results ensures the accuracy and effectiveness of the test results, and can automatically alarm;

New Windows color graphical interface, all Chinese operating system, supporting mouse, keyboard, and multiple input methods;

Intelligent light source switch, extending its lifespan;

*Comprehensive and comprehensive quality control functions, including multiple quality control charts and quality control parameter calculations such as Westguard multi rule quality control and instant method quality control, with quality control alarm function;

Provide multiple printing methods and forms of Chinese reports, and customize various reports;

*Layout and save import functions greatly improve the testing efficiency of commonly used projects;

*You can choose calculation methods such as absorbance, Cut-Off qualitative calculation, single point calibration, line regression, linear regression, exponential regression, logarithmic regression, double logarithmic regression, log log log, power regression, four parameter regression, enzyme inhibition rate, etc;

A dedicated system maintenance menu that automatically judges the current status and performance indicators of the instrument, and can print relevant data;

technical parameter

Wavelength range: 400-800nm

*Filter configuration: 10 filter positions, standard configuration of 405nm, 450nm, 492nm, 630nm, optional 6 custom wavelengths

Absorbance range: 0.000-4.000A

*Number of optical channels: 8-channel optical path detection, with another independent reference channel

*Indication stability: ≤ ± 0.002A or ≤ 0.5% T/10min

*Indication error (accuracy): ≤ ± 0.005A or ± 0.2% T

*Repeatability: ≤ 0.2% or ≤ 0.2% T

Sensitivity: ≥ 0.01 (L/mg)

Channel difference: ≤ 0.01A

Wavelength indication error: ± 1nm

Half width: ≤ 8nm

Peak transmittance: ≥ 35%

Resolution: 0.001A (display), 0.0001A (internal calculation)

*Reading speed: single wavelength ≤ 3 seconds/96 holes, dual wavelength ≤ 6 seconds/96 holes

Vibration plate function: adjustable speed and time

Light source type: halogen tungsten lamp

Flat noodles type: standard 96 well or other types of enzyme standard plate and strip

Applicable hole types: flat bottom, U-shaped, and V-shaped

*Display method: 10.4-inch color LCD display screen

Input method: Touch screen input, optional with mouse and keyboard

Printing: built-in thermal printing

Interface: DVI port, VGA port, network port, USB port, audio port, RS232 serial port

Operating environment: temperature 5-40 ℃; Humidity 15% -80%

Power supply voltage: 220V ± 10%, 50/60Hz

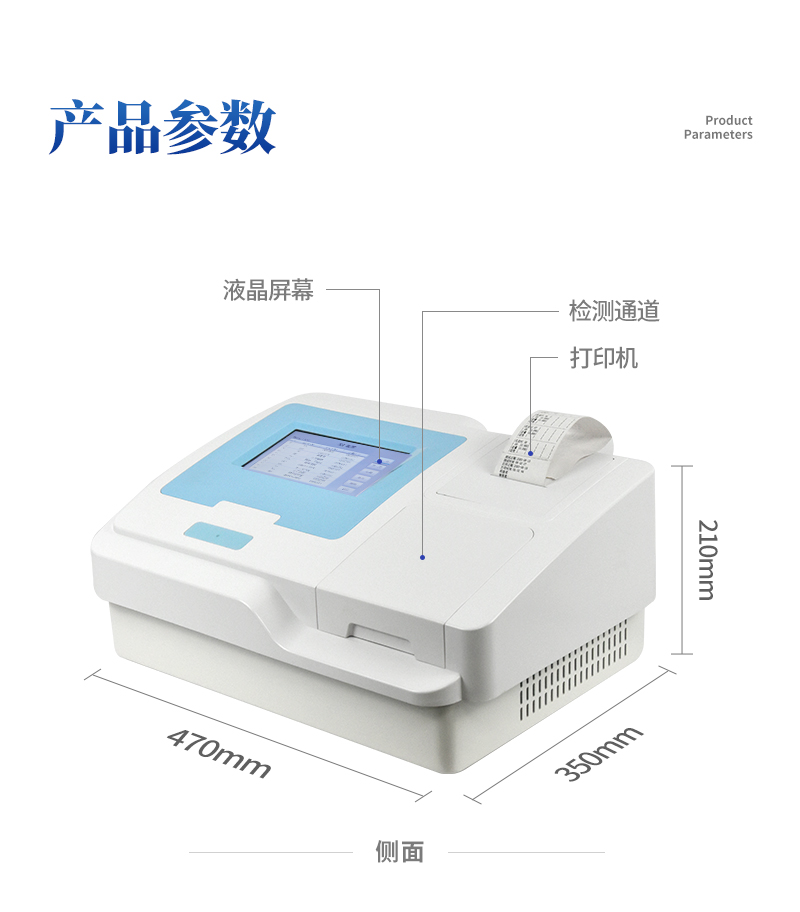

Volume: 470mm × 350mm × 210mm (length × wide × High)

Weight: 11.5Kg
