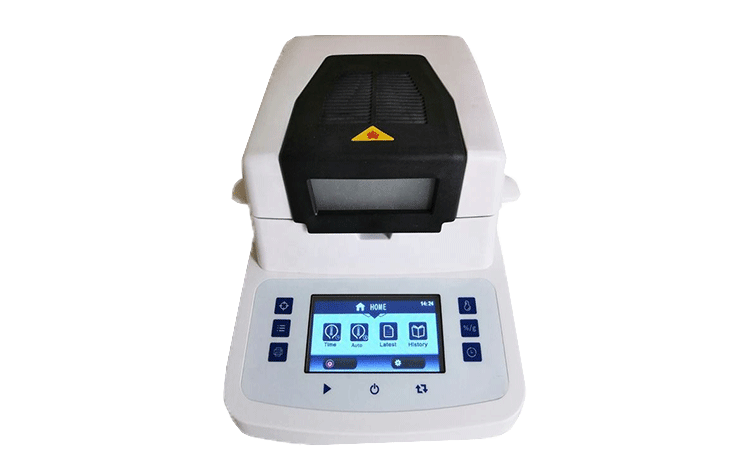

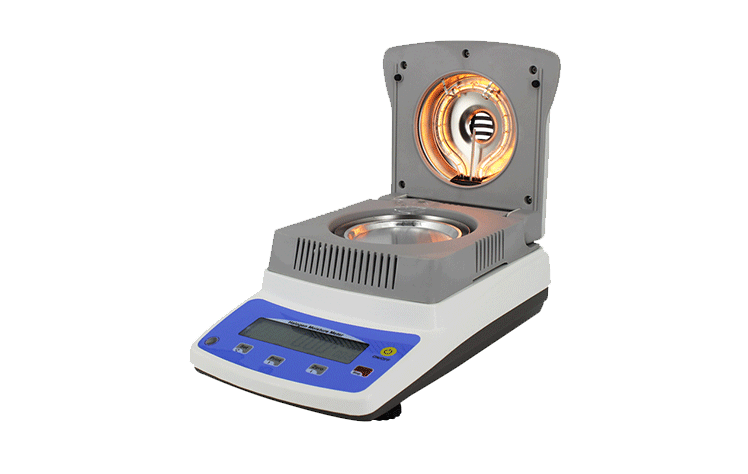

Halogen moisture meter

Application field:

This series of rapid moisture testers is applied to all industries that require rapid moisture measurement, as long as it is in the form of granules, powders, flakes, and non volatile liquids, such as grain, chemical, pharmaceutical, plastic raw materials, rubber, tobacco, tea, textiles, meat, food, starch, feed, coal, molding sand, sewage sludge, dairy, and so on;

Working principle:

The traditional moisture determination method usually uses oven drying, and the testing of a sample takes two to three or even three to four hours. Moreover, it also requires weighing on a balance and manual calculation to obtain the moisture value (moisture content) of the sample. The low efficiency of moisture determination using the oven method cannot meet the production needs of fast-paced enterprises. The Lucky Card Rapid Moisture Tester uses an efficient drying heater - a high-quality circular halogen lamp - to quickly and uniformly heat the sample, continuously drying the moisture of the sample. Throughout the measurement process, the instrument automatically displays real-time measurement results such as sample weight, moisture content, solid content, measurement time, heating temperature, etc.

This series of rapid moisture testers applies the principle of international oven drying method, and the measurement results are consistent with the oven method moisture measurement. However, the work efficiency is much higher than the oven method moisture measurement. Generally, the sample can be measured in just a few minutes, so it is favored and praised by the majority of users.

Features:

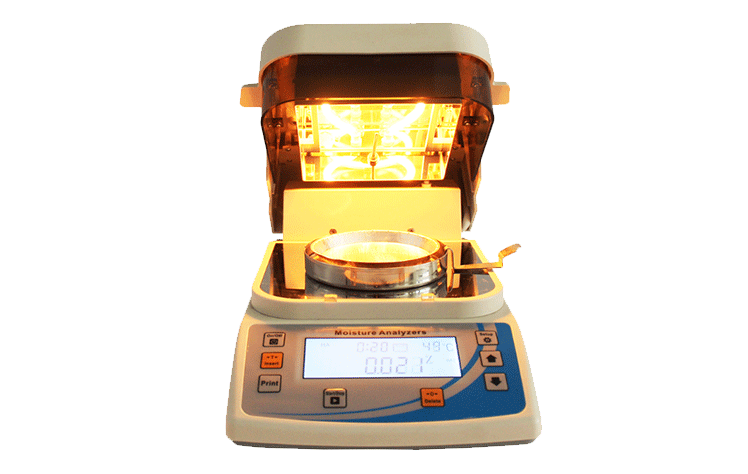

Halogen light heating

Stainless steel heating chamber

Temperature and time can be set

The percentage of moisture content displayed

The percentage of dry residue

LCD touch screen with cosmetic settings

Technical parameters:

Product model: YT-LS1 YT-LS2 YT-LS3 YT-LS4

Maximum Weighing Range (g) 50g 110g 110g 110g

Readability (g) 0.005g 0.005g 0.002g 0.001g

Operating temperature Range 5 ° C --35 ° C

Display screen Touch LCD

Calibration External

Pan size (mm) Φ ninety

Appearance dimensions (W * L * H) 200 * 180 * 380

Product Weight (Kg) 5

Heating method Heat source halogen lamp Halogenlamp

Temperature sensor Temp.sensor PT-100

Temperature range Temp.range 40 ° C --199 ° C

Temperature interval Temp.step 1 ° C

Moisture range 0.00% -100%

Moisture readability 0.02% 0.02% 0.01% 0.01% 0.01%

Dry residual range 100.00% -0.00%

Dry remaining readability 0.02% 0.02% 0.01% 0.01% 0.01%

ATRO 100% -999%

ATRO 0% -999%

Temperature setting 40 ° C --199 ° Cby1 ° Cstep

Timesetting 1-99min by 1s step

Autostop 0.1% --9.9% within 1 minute

Number of storage history 15

Heating part Heater 220V+15% 50Hz

115V+15%

400W

Connection part R232 interface

Balance External Power Supply

Output: 9V

Lnput: 220V+15% 50Hz

Operating steps:

Firstly, place the samples to be tested evenly on the sample tray

Secondly, cover the heating cover and finally press the "Start" button. The remaining work is automatically completed by the instrument. After the measurement is completed, the instrument will automatically alarm, and the measurement results will be locked on the LCD display screen.

Features:

1. No installation or debugging required, can be used by unpacking;

2. No training required, easy to operate, and saves tedious usage steps;

3. Short measurement time and high work efficiency;

4. Uniform heating, stable performance, and accurate testing;

5. Small in size and light in weight;

6. Fully automatic measurement, alarm reminder after measurement, no need to monitor the measurement process;

7. Widely used and almost suitable for moisture determination in various industries;

8. Imported sensors from Germany make instrument testing more excellent and accurate;

9. The unique windshield design makes the instrument weighing system more stable;

10. The moisture and solid content of the sample can be converted simultaneously;

11. The heating chamber adopts a pure stainless steel chamber cover, which is high-temperature resistant and easy to clean.
