Raman spectrometer

Product Introduction:

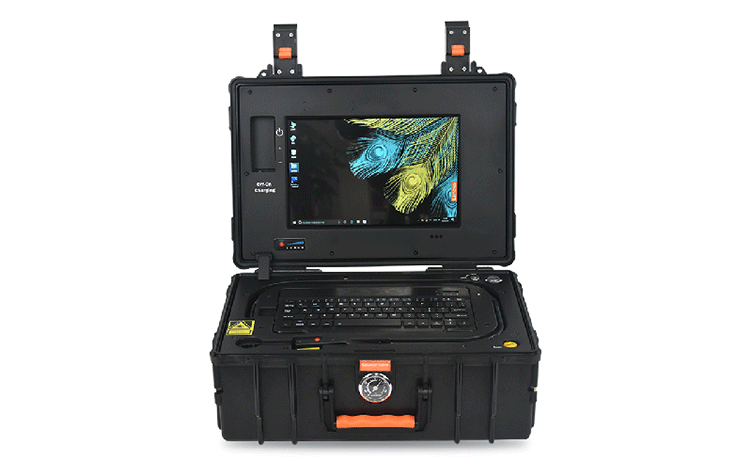

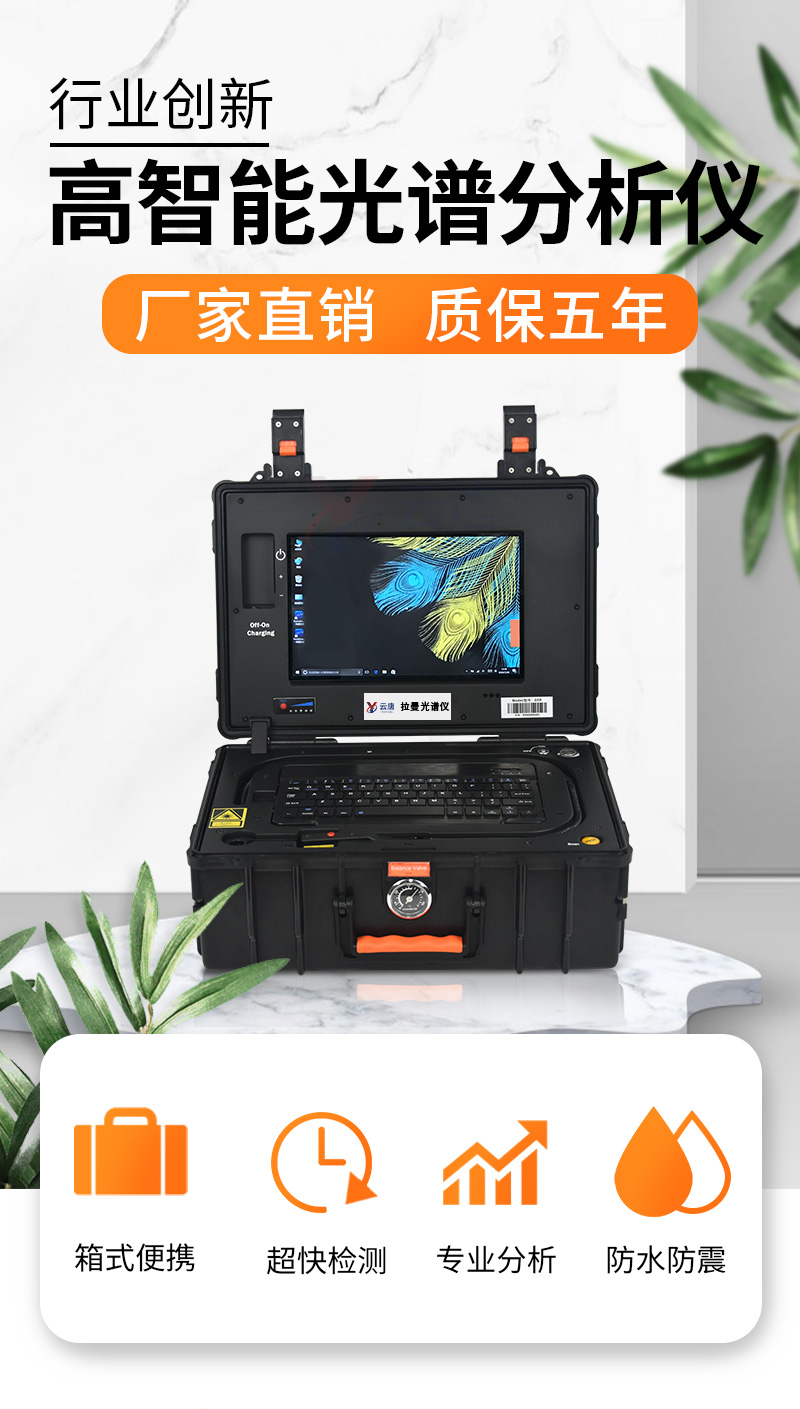

YT-LM is a portable Raman spectroscopy analyzer specifically designed for on-site rapid detection. It adopts an industrial grade waterproof, dustproof, shockproof, and anti drop design, suitable for use in various harsh environments, with higher reliability and stability. The device comes with an operating system and a user-friendly software interface, integrating advanced intelligent spectral analysis and spectral analysis algorithms, fully achieving "one click operation".

Portable Raman spectroscopy analyzer Purpose:

Food prohibited additives, pigment additives, and residue detection of agricultural and veterinary drugs

Detection of explosives, hazardous chemicals, and flammable and explosive materials

Jewelry and jade appraisal, cultural relic identification

Biomedical testing, material characterization, address exploration, etc

Other customized applications

Performance characteristics of portable Raman spectrometer:

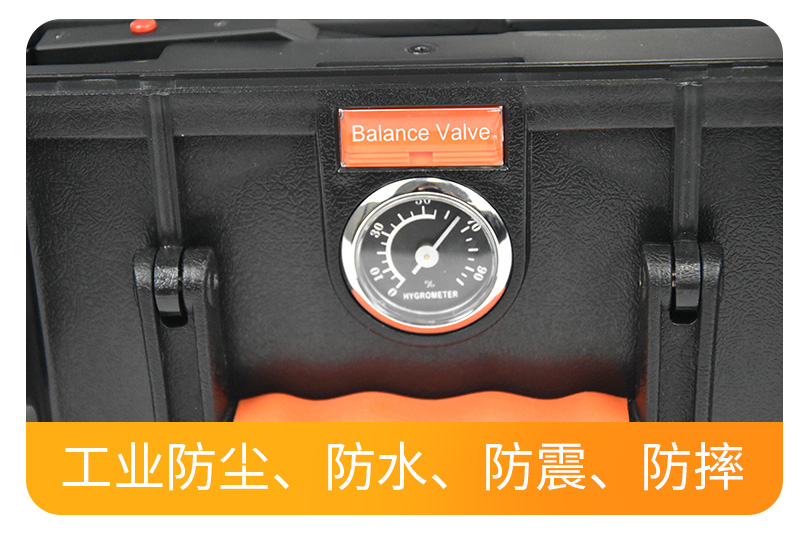

1. Industrial dustproof, waterproof, shockproof, and fall resistant

2. Can also be applied in harsh environments

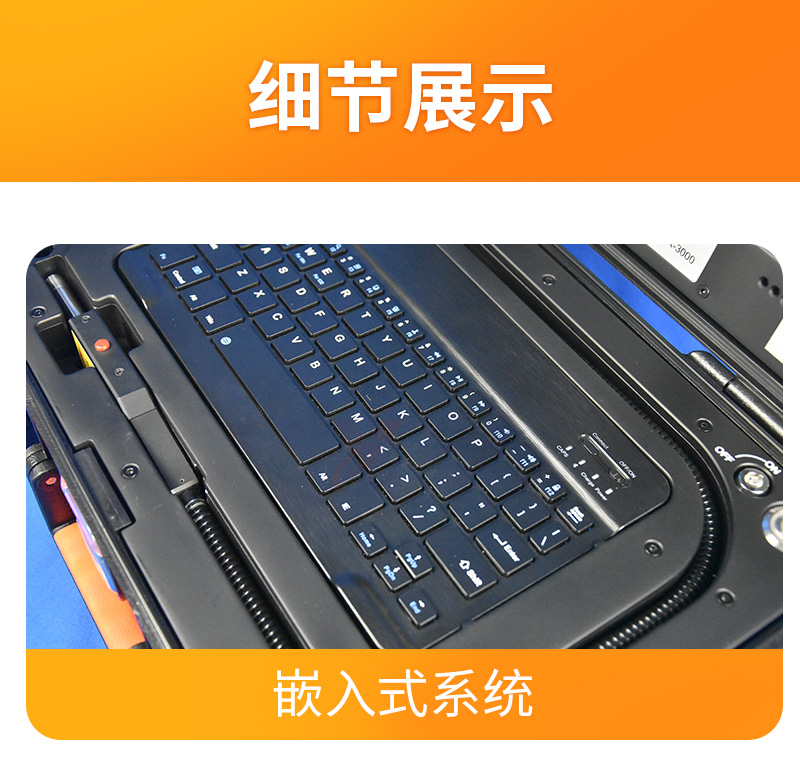

3. Integrated operation of embedded systems

4. On/Off, On/Off

Features of portable Raman spectroscopy analyzer:

More professional

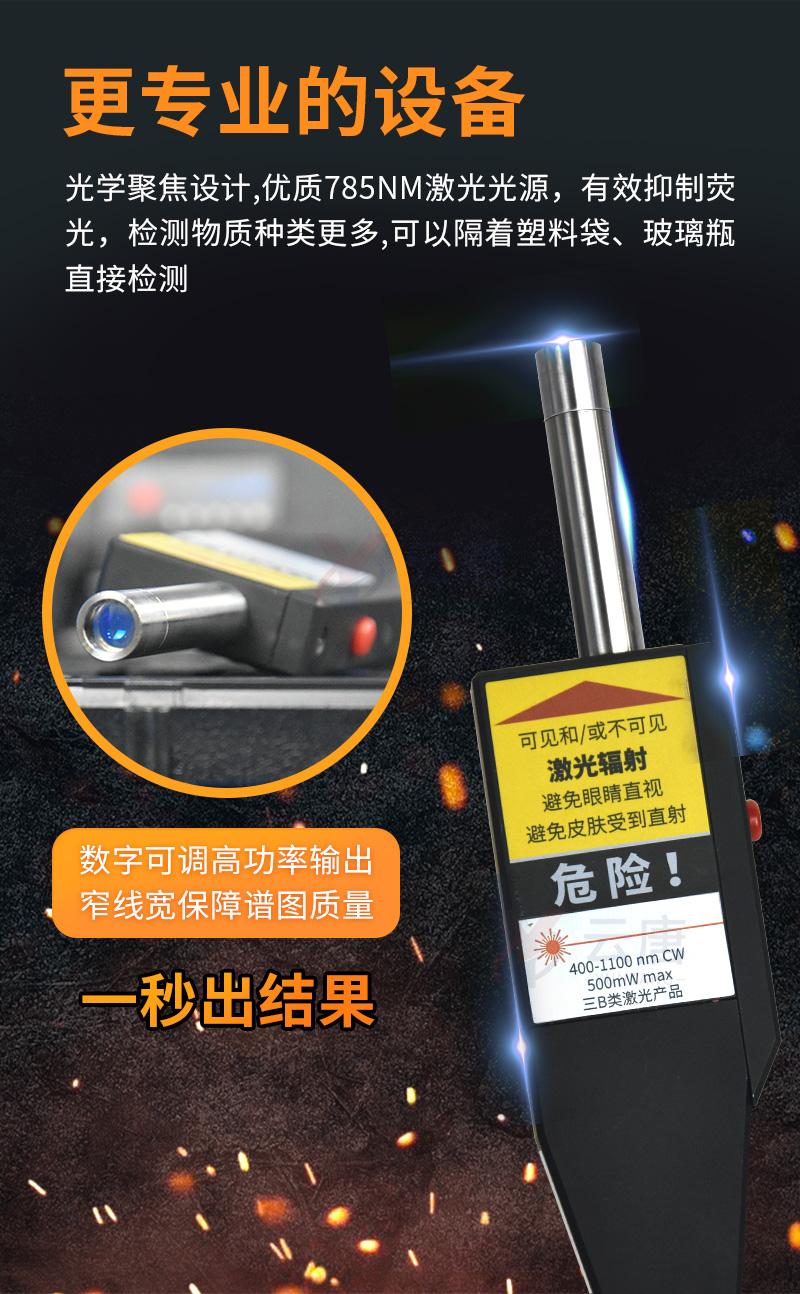

785nm light source: effectively suppresses fluorescence, suitable for portable mobile applications

Ultra wide spectral range: more types of detected substances

Higher signal-to-noise ratio: super strong ability to detect small signals

High quality laser light source: digitally adjustable high power output, narrow linewidth to ensure spectral quality

More convenient:

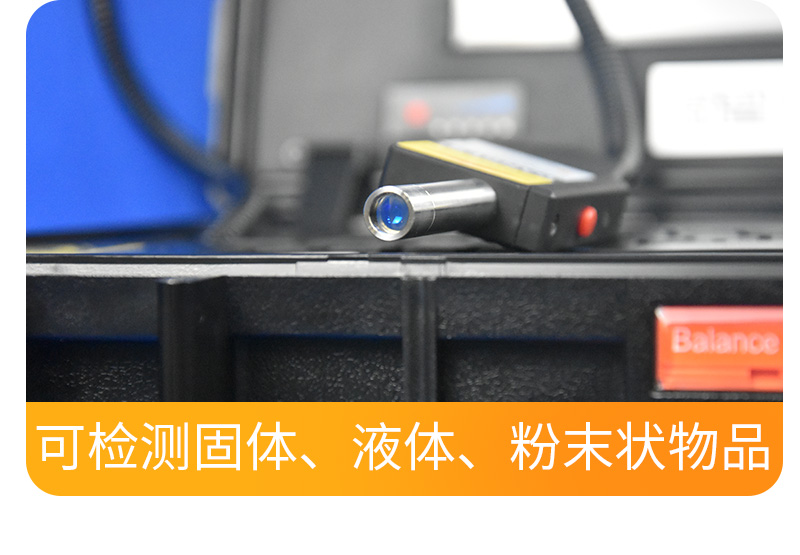

Optical focusing design: can be directly detected through plastic bags and glass bottles

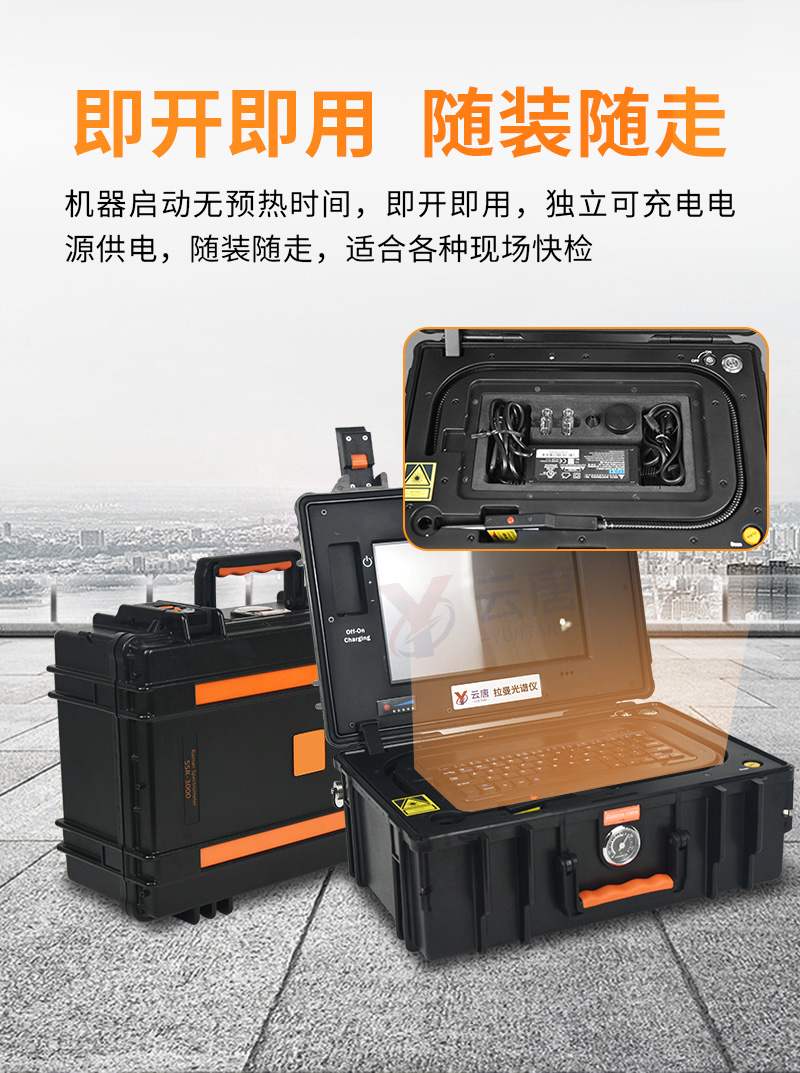

Fast self stabilizing light source: machine starts without preheating time, ready to use immediately

Ultra fast detection speed: output results in one second

Portable design: Powered by an independent rechargeable power supply, it can be installed and taken with you, suitable for various on-site quick inspections

More suitable for application

In line spectrum library: Provide multi-dimensional spectrum library for various industry applications, supporting online upgrades

Professional analysis algorithms: intelligent spectral analysis, automatic matching, multi-component analysis

Industry application software: Provide industry-specific software to support customer customization

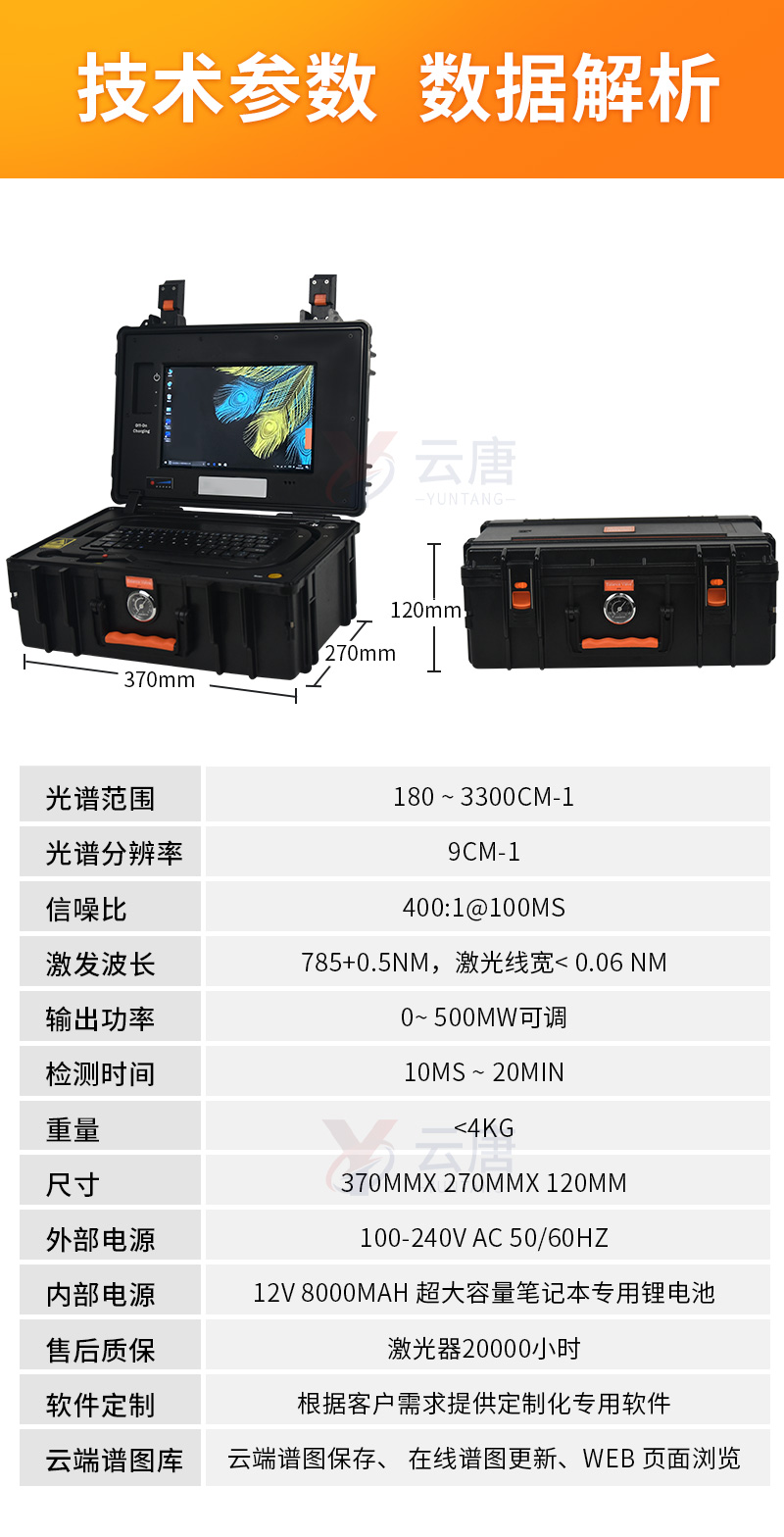

Technical parameters of portable Raman spectroscopy analyzer:

Specification: YT-LM Standard Edition

Spectral range: 180~3300cm-1

Spectral resolution: 9cm-1

Signal to noise ratio: 400:1 @ 100ms

Excitation wavelength: 785+0.5nm, laser linewidth<0.06 nm

Output power: 0~500mW adjustable

Detection time: 10ms~20min

Weight:<4kg

Size: 370mm x 270mm x 120mm

External power supply: 100-240V AC 50/60Hz

Internal power supply: 12V 8000mAH super large capacity notebook dedicated lithium battery

After sales warranty: 20000 hours for laser

Software customization: Provide customized specialized software according to customer needs

Cloud spectrum library: supports cloud spectrum saving, online spectrum updating, and web page browsing
