Construction of meteorological stations in scenic areas

Product Introduction:

Automatic weather stations are multi factor automatic observation stations developed and produced in accordance with the meteorological observation standards of the International Meteorological Organization (WMO). It can monitor conventional meteorological factors such as air temperature, humidity, wind direction, wind speed, and rainfall, and can operate normally in unmanned and harsh environments 24/7. A mesoscale meteorological monitoring network can be formed, with each automatic meteorological station serving as a sub station to transmit data to the central station. And parameters can be set and read through flexible mobile apps, or data can be read through meteorological element display terminals. It has functions such as automatic recording, exceeding limits, and data communication. Widely used in urban environmental monitoring and other fields such as meteorology, hydrology, agriculture, industry, environmental protection, tourism, scientific research, etc.

Typical applications:

Mesoscale encrypted network, grid based forecasting services, refined weather forecast data sources, key monitoring of flash flood warning, regional meteorological environment observation, industry service system, campus meteorological system, environmental meteorological monitoring, general aviation airport

Product features:

Fully automatic, suitable for outdoor work and adapting to various installation environments;

Low power consumption, equipped with backup batteries, can be used for a long time;

High reliability, free from daily maintenance;

Supports 4G all network communication mode

Support for Beidou satellite communication system

Support multiple transmissions on one station, capable of sending data to four central stations simultaneously;

Using new materials and anti-theft design;

Has data quality control function;

Equipped with status monitoring function;

System composition:

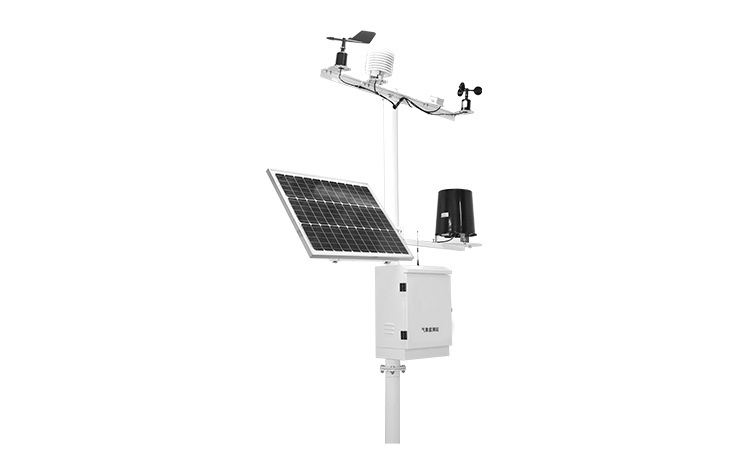

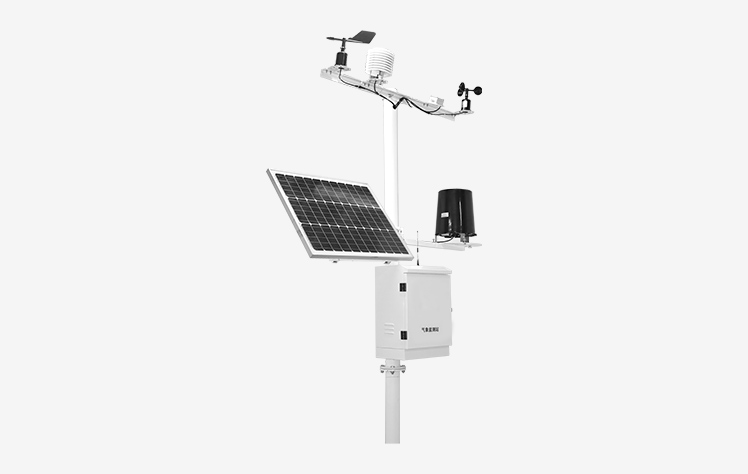

The automatic weather station system consists of two parts: hardware and software. The hardware consists of an integrated high-precision data collector, multiple sensors, brackets and protective boxes, and a solar power supply control system. The software includes a data receiving platform and mobile client software.

Functional features:

1. Collector: Adopting ARM7 core industrial grade processing chip, equipped with 192 * 64 full dot matrix LCD display (optional 7-inch LCD display screen), suitable for various harsh environments. The equipment has a sturdy and beautiful appearance, high reliability, high accuracy, easy maintenance, and easy backup.

2. Working environment: -50 ℃~+50 ℃, 0-100% RH

3. Power consumption of the whole machine: 1.5W (GPRS communication)/10W (Beidou communication)

4. Continuity: Can work normally for 15 consecutive days of cloudy and rainy weather (GPRS communication);

5. Power supply: 12V; Waterproof grade: IP65

6. Encryption interval: The maximum encryption interval is 1 minute;

7. Data storage: 16M (bit) memory can store 12 months of minute data and on-time data

8. Equipped with external USB storage expansion function.

9. Sensors: Various meteorological element sensors such as environmental temperature, humidity, wind speed, wind direction, air pressure, soil temperature, soil humidity sensor, rainfall sensor, total radiation sensor, carbon dioxide, light intensity, evaporation, dew point temperature, ultraviolet radiation, photosynthetic radiation, rain and snow, sunshine hours, etc. (optional according to needs) have high accuracy and stability in observing data.

10. Support: The main support is made of aluminum titanium alloy wind rods. The surface of the main rod is treated with hot-dip galvanizing and electrostatic spraying technology, which has strong corrosion resistance. The height of the main rod is 3.5 meters, equipped with windproof cables, and the appearance is beautiful..

11. 1 set of meteorological data monitoring platform:

Data query function: supports the query, export, and printing of various real-time and historical data for any time period.

Data statistics function: supports single element statistics function: can perform statistics on the maximum, minimum, and average values of a single element by year, month, day, hour, 10 minutes, or any time period.

Data chart function: Based on the collected data, real-time curves can be formed and presented in intuitive ways such as bar charts and pie charts.

Technical parameters:

Name

Measurement range

Resolution

Accuracy

Environmental temperature

-50~+100 ℃

0.1 ℃

≤ ± 0.2 ℃

Relative humidity

0-100% RH

0.1%

± 1.2% RH

Wind direction

0-360 ° (16 directions)

1 °

± 3 °

Wind speed

0-75m/s

0.1m/s

± (0.3+0.03V) m/s

Rainfall

≤ 4mm/min

0.2mm

± 0.4mm

Configuration can be expanded according to user needs: atmospheric pressure sensors, light intensity sensors, total radiation sensors, evaporation sensors, dew point temperature sensors, ultraviolet radiation sensors, photosynthetic radiation sensors, sunshine hours, carbon dioxide, rain and snow sensors, soil moisture, soil temperature and other meteorological element sensors.

Can be equipped with LED display screen (AC power supply), adjustable in size, real-time collection of meteorological data and other set information.

Data acquisition instrument

Data collection, storage, communication, analysis and other functions

Power supply system

Optional mains/solar/battery/multi power supply system

Communication system

RS232/RS485, USB, wireless GPRS, Ethernet and other communication methods

Special bracket

Install protective boxes, sensors, power supplies, communication equipment, etc

Lightning protection system (optional)

Lightning rod and accessories
