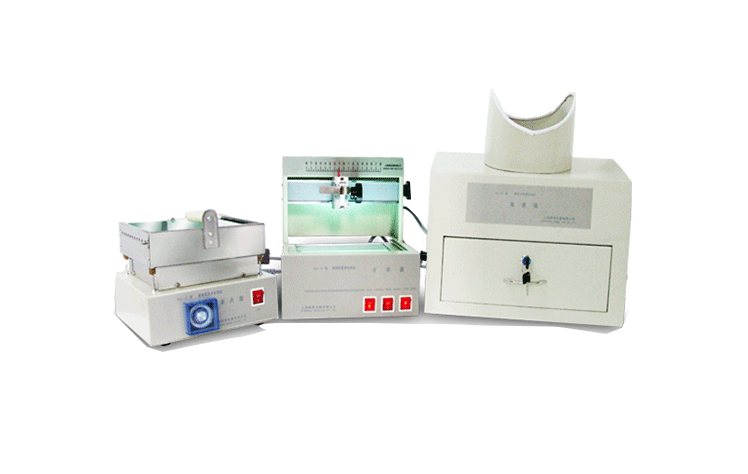

Aflatoxin tester (YT-QMC)

The YT-QMC aflatoxin detector adopts a thin layer chromatography method. After extraction, concentration, and thin layer separation of aflatoxin B1 in the sample, purple fluorescence is generated under ultraviolet light at a wavelength of 365nm. The content is determined based on the minimum detection amount of fluorescence displayed on the thin layer.

Technical indicators：

1. Testing varieties: grains, food and feed, fruits, meat, fish and shrimp fermented products;

2. Minimum detection amount: 0.0004 micrograms;

3. Working voltage: AC 220V 50Hz;

4. Plate dryer: heating area 200mm × 200mm power 600 weight: 6kg;

Overall dimensions: 230 × two hundred and seventy-five × 225 mm3;

5. Sampler: Rod diameter ＜ 3mm Working size: 200 × 200mm Weight: 8kg;

Boundary dimension: 260 × two hundred and seventy-five × 310 mm3;

6. Observation box: UV light wave: 365nm, power 12W; Weight 11kg;

External dimensions: 410 × three hundred × 445 mm3.
