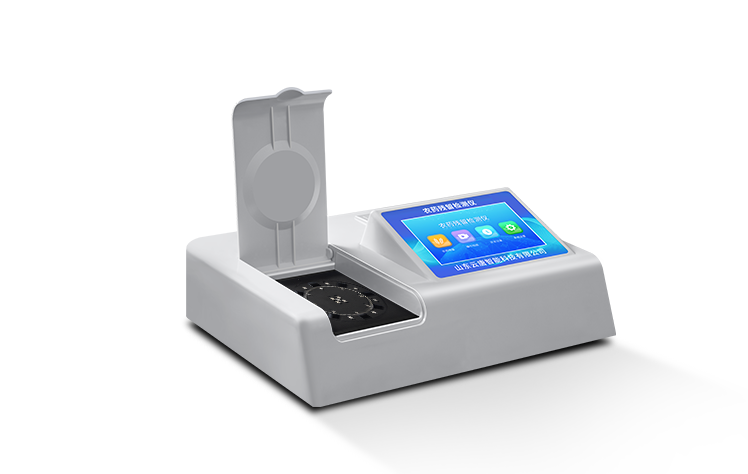

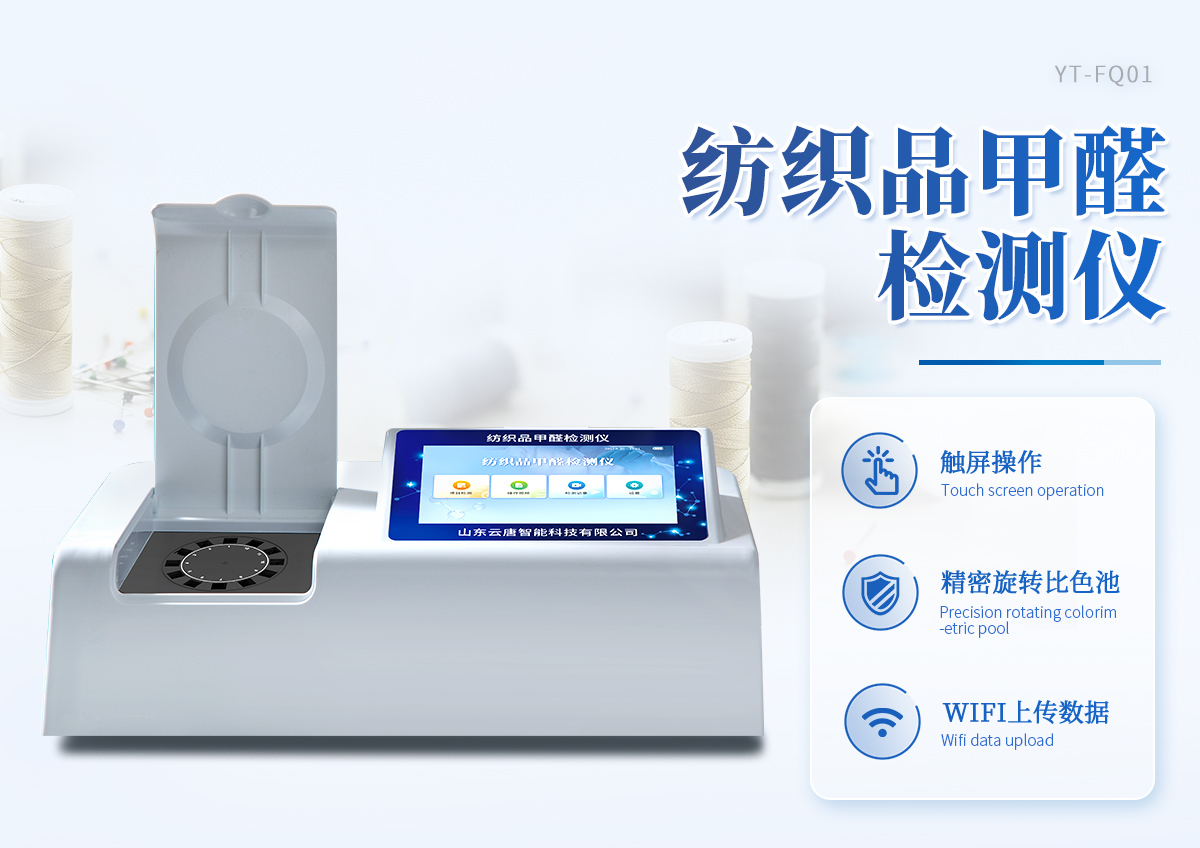

Textile formaldehyde detector

Product Introduction:

This textile formaldehyde detection equipment meets the Chinese standards for formaldehyde content detection in textiles, including the National Basic Safety Technical Specification for Textile Products (GB 18401-2010) and the Determination of Formaldehyde in Textiles - Part 1: Free and Hydrolyzed Formaldehyde (Water Extraction Method) (GB/T 2912.1-2009). It is suitable for formaldehyde content detection in various textiles, clothing, etc.

Product Usage:

This textile formaldehyde detection system adopts the same standards and testing methods as quality inspection and commodity inspection institutions, providing a "one-stop service" for textile, clothing and other production enterprises, quality inspection and commodity inspection units, and providing professional solutions for various textile formaldehyde laboratories.

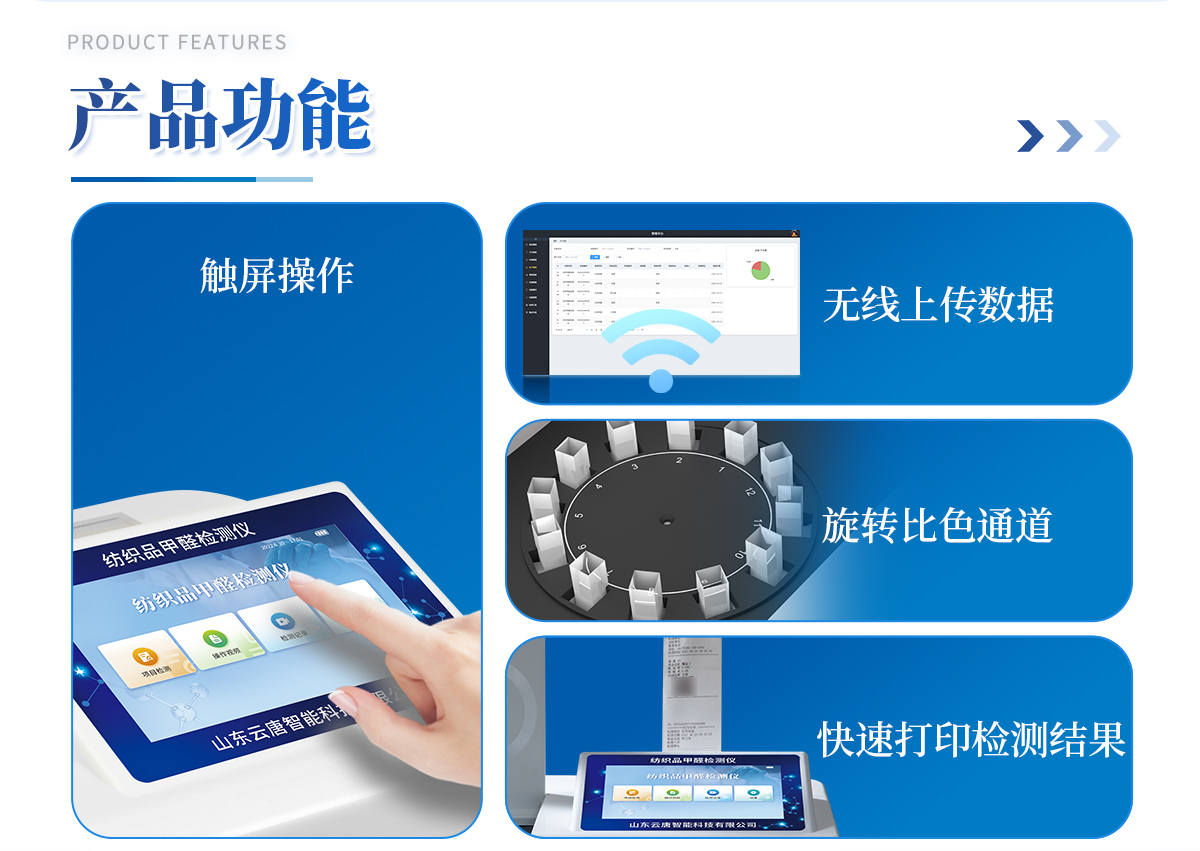

Instrument features:

① This instrument adopts ARM Cortex-A7, RK3288/4 core processor, and runs Android intelligent operating system. It integrates experimental operations, analysis results, printing reports, and other functions, making it convenient to use and more powerful in performance.

② The instrument adopts a 7.1 inch LCD touch screen, which can be operated on a single machine without the need to connect external display devices or control devices.

③ The device has 12 detection channels and can detect 11 samples at once, resulting in higher efficiency.

④ The instrument adopts a precision rotating colorimetric cell design and uses a same light source to calibrate accuracy, resulting in more accurate and efficient detection results.

⑤ The device has data storage function, which can store 100000 sets of data, visually view historical data on the screen, and export data.

⑥ The device comes with a printing function, which allows for unlimited printing of sample information and test results.

⑦ The instrument is highly modular and integrated, with digital management module and wireless communication module synchronously installed. It can analyze the detection results and directly upload them to the data platform, achieving data sharing and facilitating data analysis and statistics in the later stage.

⑧ The instrument adopts a highly intelligent system, which automatically compares the detection results with the national standard limit values, automatically determines whether the sample is qualified, and the results are more intuitive.

⑨ This device can edit the attributes of each channel separately based on the information of the test sample, such as the testing unit, testing personnel, etc.

⑩ The equipment has functions such as overvoltage protection, anti-static interference, and magnetic field interference prevention

⑪ This device can undergo technical remote upgrades and program updates without the need to return to the factory. In the future, our company will continue to update the system version for free to reduce usage costs and transportation loss risks.

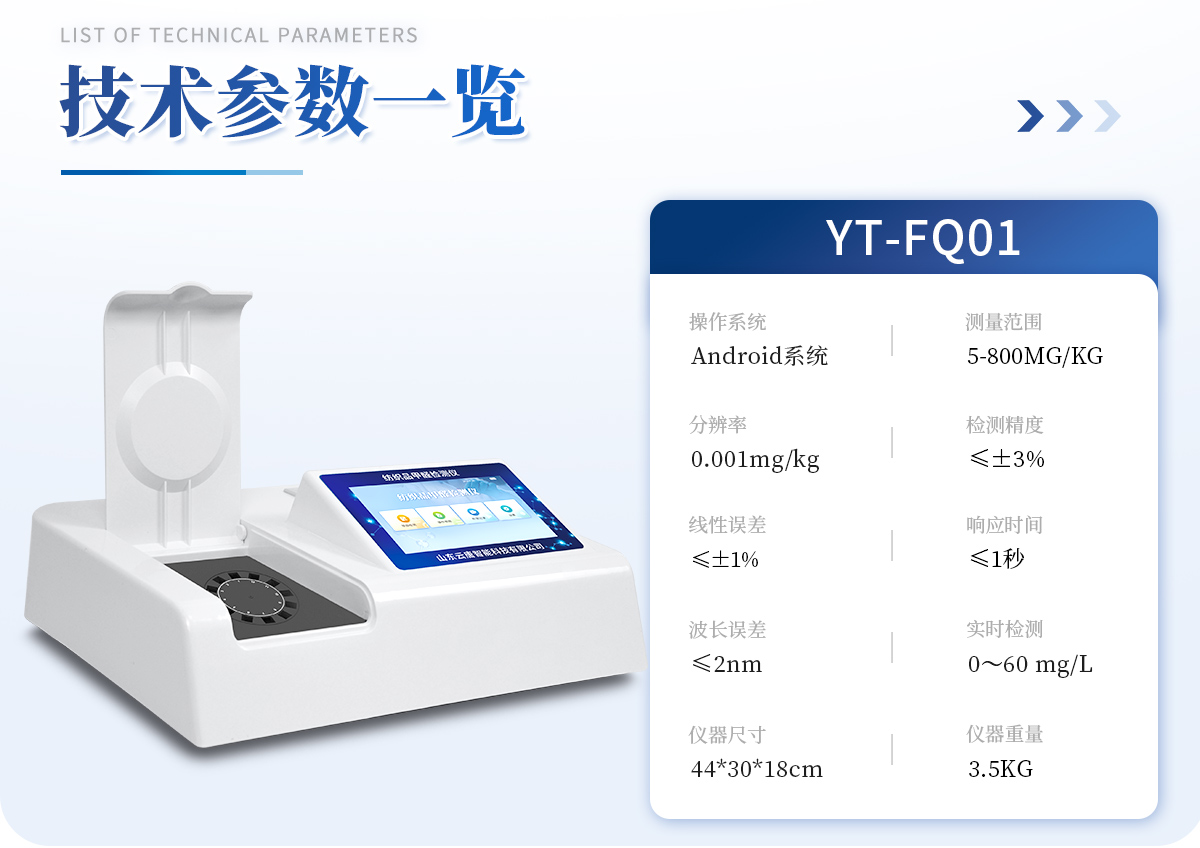

Technical parameters:

Test item: Formaldehyde in textiles

Measurement range: 5-800mg/kg

Resolution: 0.001mg/kg

Detection accuracy: ≤ ± 3%

Linear error: ≤ ± 1%

Response time: ≤ 1 second

Wavelength error: ≤ 2nm

Detection mode: Real time detection

Instrument size: 44 * 30 * 18cm

Instrument weight: 3.5kg

Working power supply: 220V

Working humidity: ≤ 95% RH, no condensation

Working temperature: -30~50 ℃

Work pressure: -30Kpa~200Kpa

Executive standards:

National Basic Safety Technical Specifications for Textile Products (GB 18401-2010)

Textiles - Determination of Formaldehyde - Part 1: Free and Hydrolyzed Formaldehyde (Water Extraction Method) (GB/T 2912.1-2009)

Reference limit:

According to GB 18401-2010:

Class A infant and toddler textiles should have a formaldehyde content of ≤ 20mg/100g

Category B textiles that come into direct contact with the skin should have a formaldehyde content of ≤ 75mg/100g

The formaldehyde content of textiles in Class C that do not come into direct contact with skin or have partial contact with skin should be ≤ 300mg/100g
