Trace uranium detector YT-WLY

1、 Overview

In order to meet the needs of monitoring trace uranium samples in the nuclear industry, radiation environmental protection, and scientific research, our company has successfully developed a fully automatic trace uranium analyzer. The instrument design adopts a new ultraviolet light source produced by a well-known foreign company, which is characterized by stable and fault free performance; The lifespan of the pulse light tube used is ≥ 5 years, and 80000 samples can be analyzed using the standard addition method. The circuit design adopts a new type of microcontroller, and all operations during testing only require gently clicking on the corresponding option on the LCD touch screen according to the Chinese prompts. The device has a built-in oscillation function, avoiding the problem of using an oscillator externally. The whole machine is integrated and automated. After the oscillation is completed, the sample can be analyzed using standard addition method or working curve method. And the microcontroller automatically generates regression curves and linear regression equations for direct data processing. The LCD screen display and printer printing can simultaneously provide the final results of sample testing. The instrument is equipped with an Ethernet 100Base-T4 port. It can directly input test data into the computer and is an upgraded product of similar instruments.

2、 Main technical indicators of the instrument

2.1 Instrument features:

1. Efficient and time-saving

Built in oscillator, while being efficient and portable, the operation is also very simple.

2. Adaptive

Automatically select a reasonable measurement range based on the sample content.

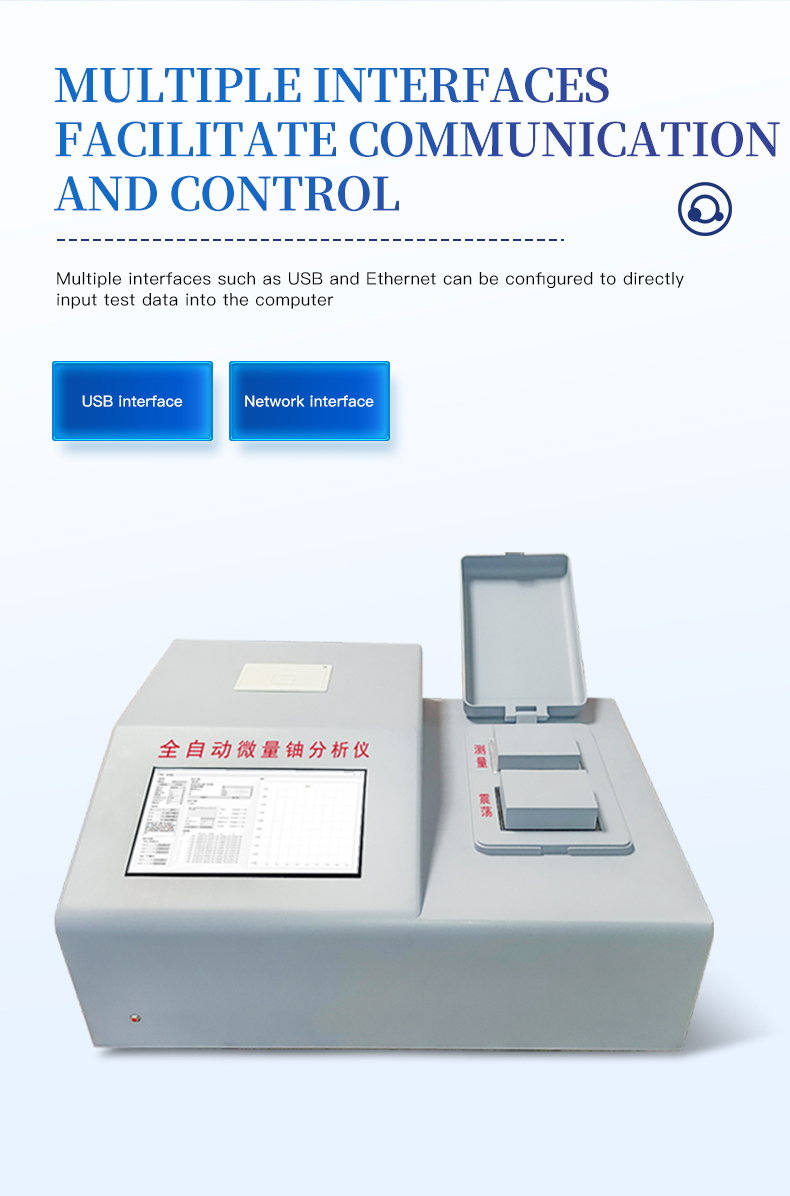

3. Multi interface

Configure multiple interfaces such as USB port and network port for convenient communication and control.

4. Fully automatic

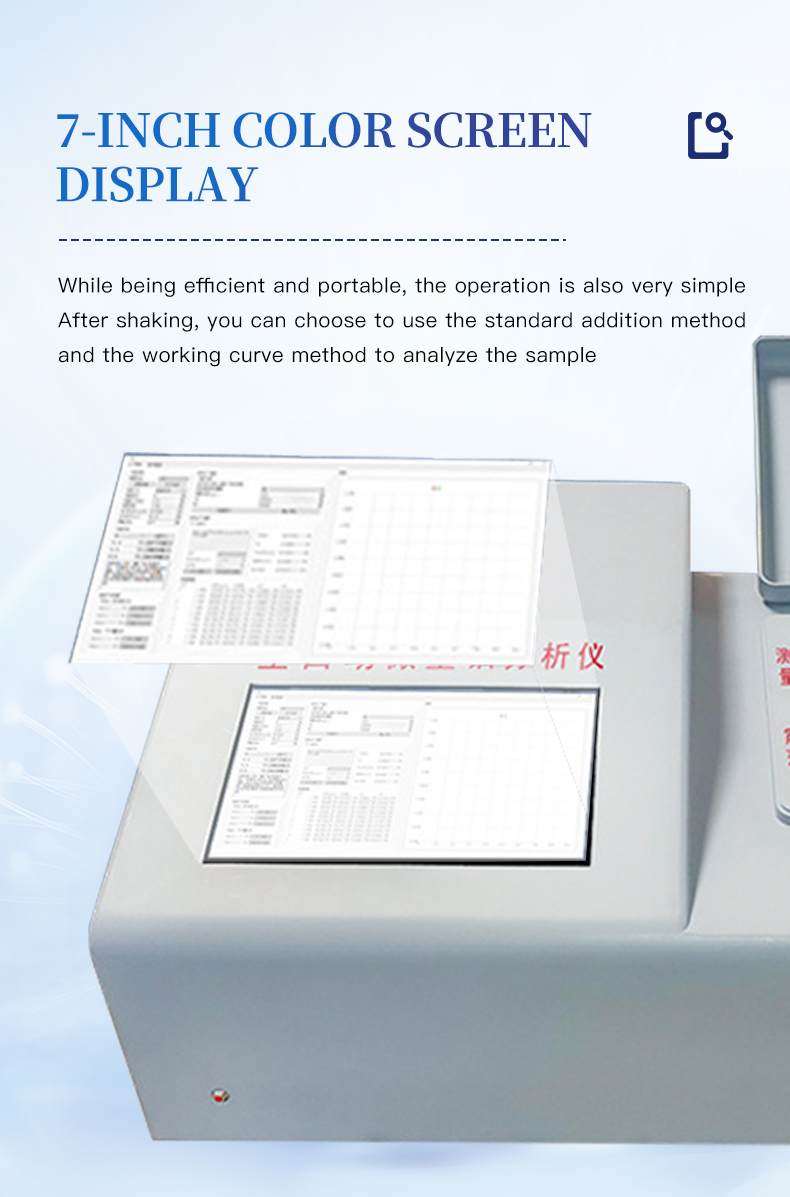

7-inch color screen display, direct output of measurement results after completion, equipped with thermal printer, direct output of measurement report.

5. Long product lifespan

Imported UV light source with long lifespan, capable of analyzing at least 80000 uranium samples

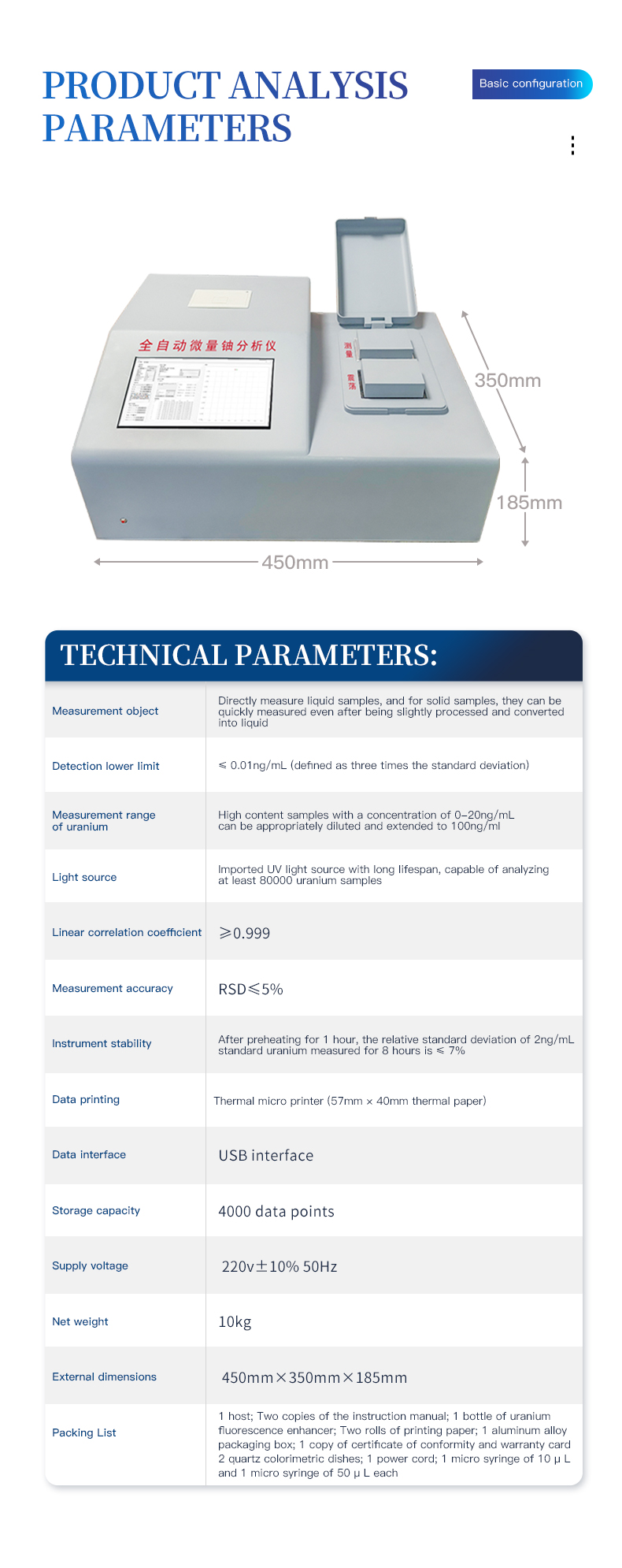

2.2 Main parameters:

1. Measurement object: Directly measure liquid samples, and for solid samples, they can be quickly measured even after being slightly processed and converted into liquids.

2. Detection limit: ≤ 0.01ng/mL (defined as three times the standard deviation)

3. Uranium measurement range: 0-20ng/mL High content samples can be appropriately diluted to extend to 100ng/mL

4. Linear correlation coefficient: ≥ 0.999

5. Measurement accuracy: RSD ≤ 5%

6. Instrument stability: Measurement after preheating for 1 hour, relative standard deviation of 2ng/mL standard uranium measurement for 8 hours ≤ 7%

7. Data printing: Thermal micro printer (57mm × 40mm thermal paper)

8. Data interface: USB interface

9. Storage capacity: 4000 data points

10. Power supply voltage: 220V ± 10% 50Hz

11. Net weight: 10kg

12. Dimensions: 450 × 350 × 185 mm

3、 Instrument warranty and packing list

1. Warranty

This instrument adopts microcontrollers and integrated circuits manufactured by well-known foreign companies, and generally rarely malfunctions. In order to facilitate the use of the instrument by customers, our company adopts the supply method of home delivery, installation and acceptance, and provides a one-year warranty period. The warranty is limited to repairing or replacing faulty components caused by defects in the process or materials used during manufacturing. If the malfunction is caused by human error due to improper use or improper storage, the repair cost will be charged accordingly.

2. Packing List

1 host

Two copies of the instruction manual

1 bottle of uranium fluorescence enhancer

2 rolls of printing paper

1 aluminum alloy packaging box

1 copy of certificate of conformity and warranty card

2 quartz colorimetric dishes

1 power cord

1 micro syringe of 10 μ L and 1 micro syringe of 50 μ L each
